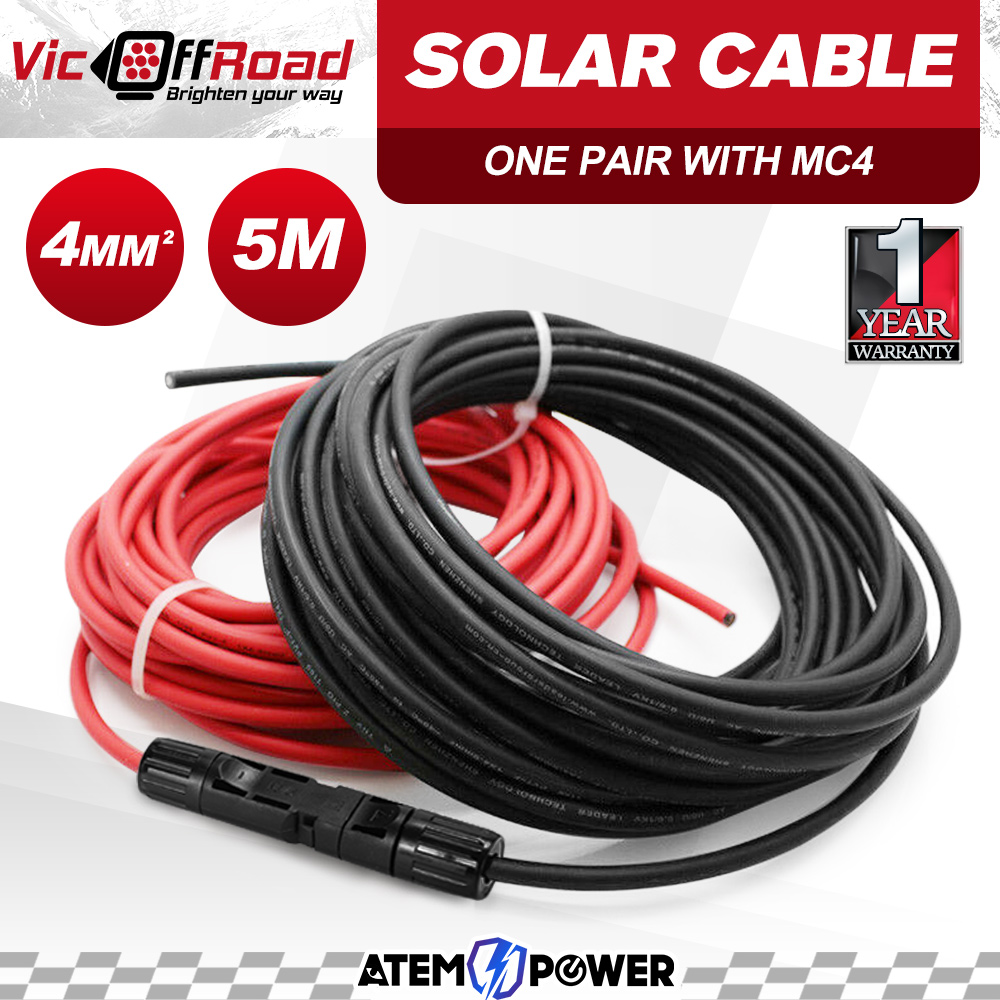

2 x 5m Extension Cable Wire MC4 Connectors Solar Panel to regulator 4mm2 10AWG

SKU
ESSC001A-N+ESSC001A-P
  • High current carrying capacity
  • Double insulation jackets,all-weather adaptability.The wiring is weatherproof and designed to withstand extreme heat and cold
  • Suitable for solar power station, pv connector and pv junction box

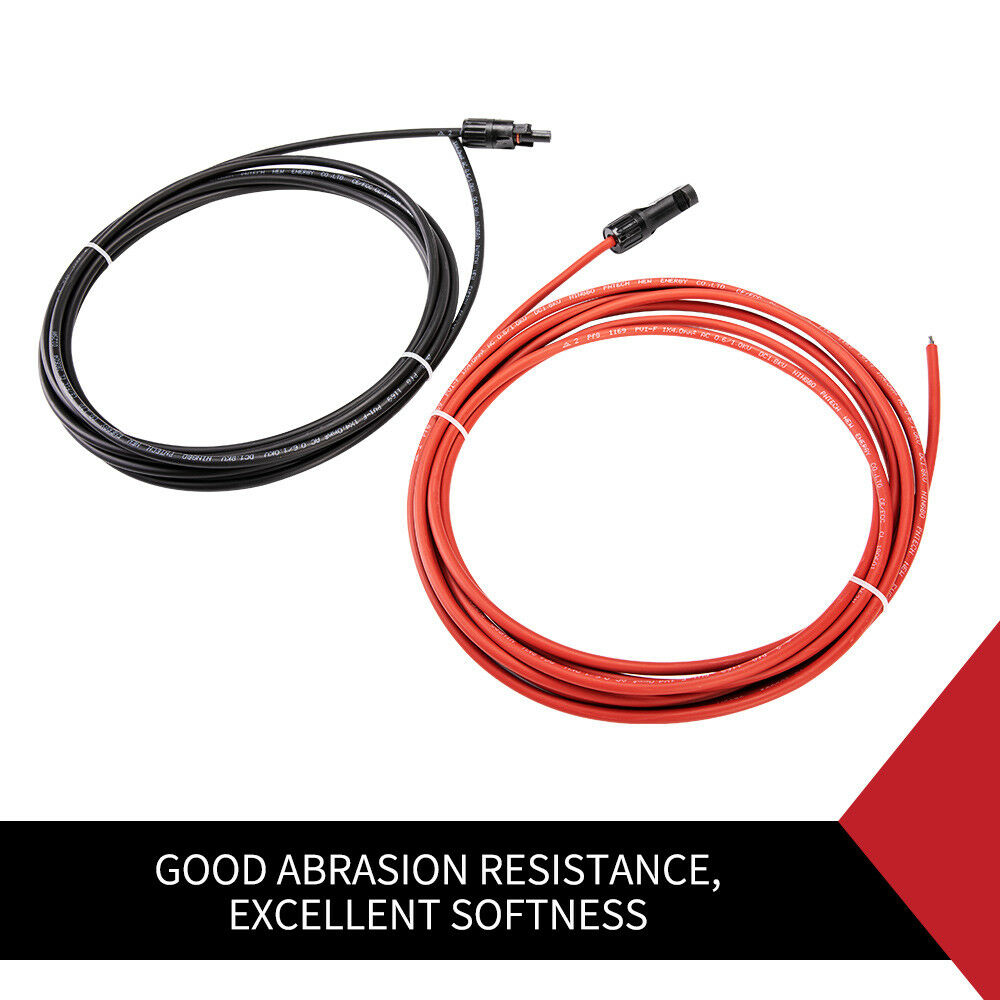

  • Good abrasion resistance,excellent softness and stripping performance
Special Price $21.39 Regular Price $28.52

Shipping calculator

Calculate
Reward Points You will earn 21 Point for purchasing this product.

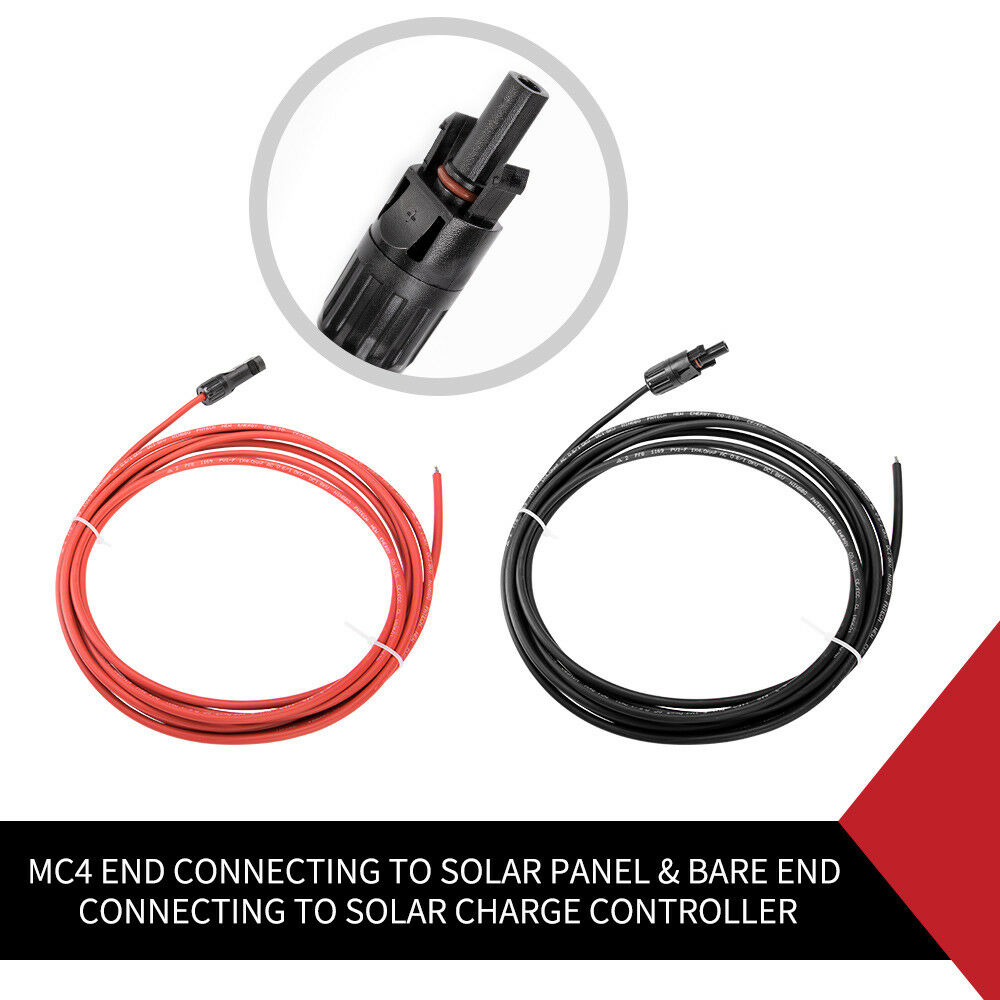

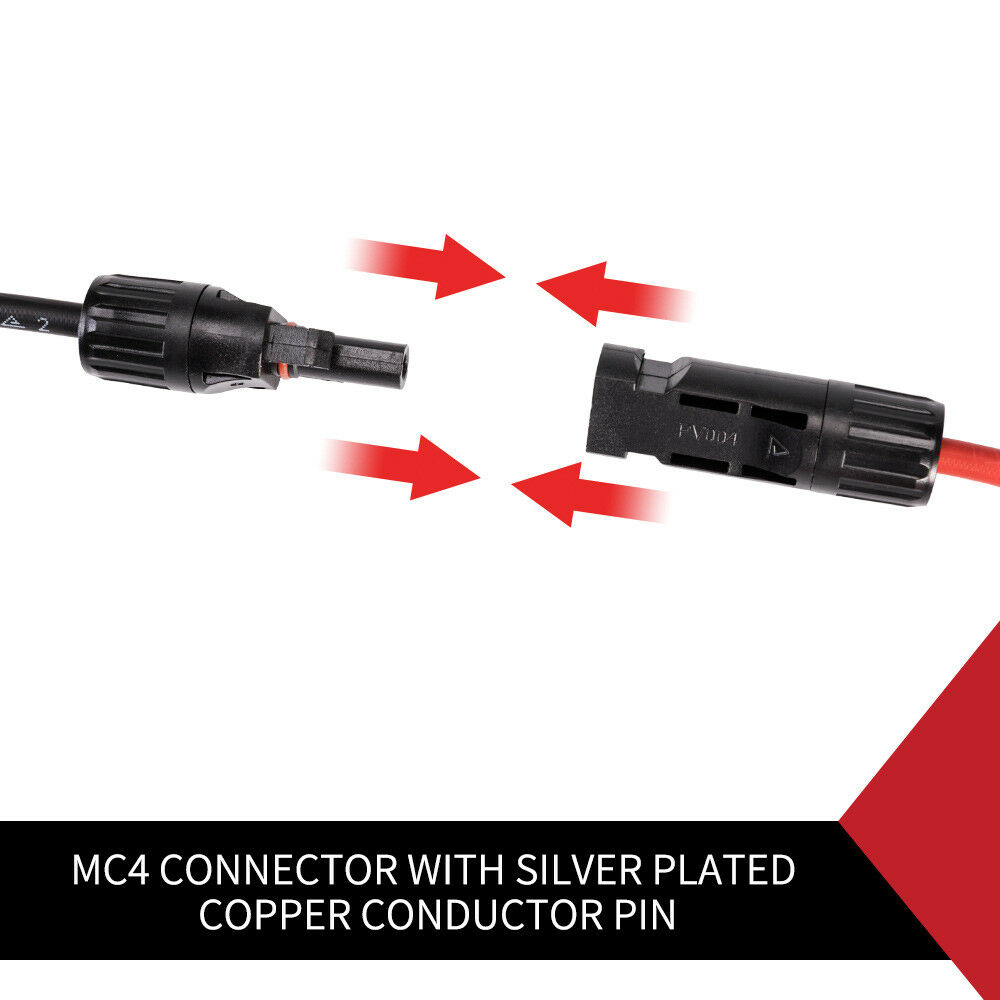

  • Two cables with MC4 connecters at one end connecting to solar panel and bare on the other end connecting to solar charge controller.
  • Solar panel cable is typically sold in 14, 12 and 10 AWG sizes. The solar panel cable offered in this listing is 10 AWG which is the largest diameter of the three. Using large diameter cable minimizes power loss in your solar panel system.
More Information
Specification

Rated Voltage:

DC1.8KV, AC:0.6~1KV

Rated Current:

55A

Material:

Copper

Wire Gauge:

10AWG

Normal Cross Sectional Area of the Conductor (mm2):

4 mm2

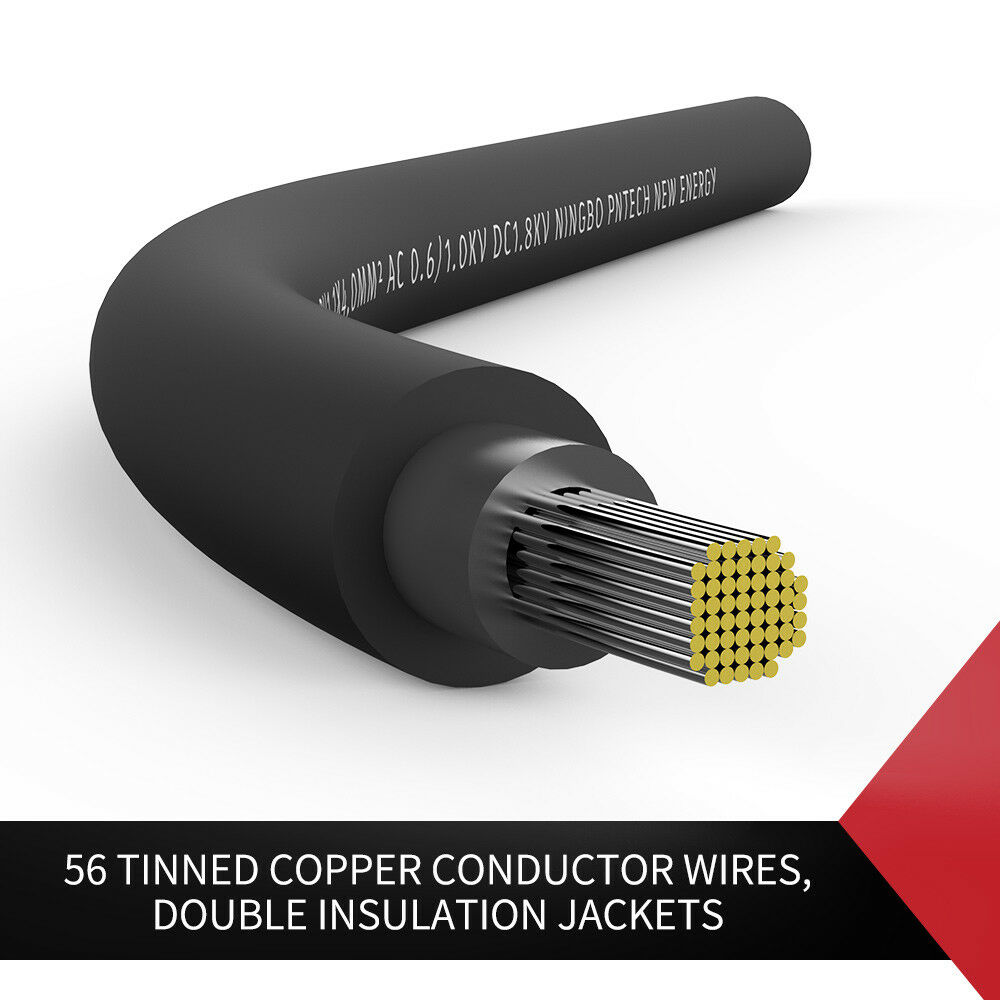

Number of Wires in Conductor:

56

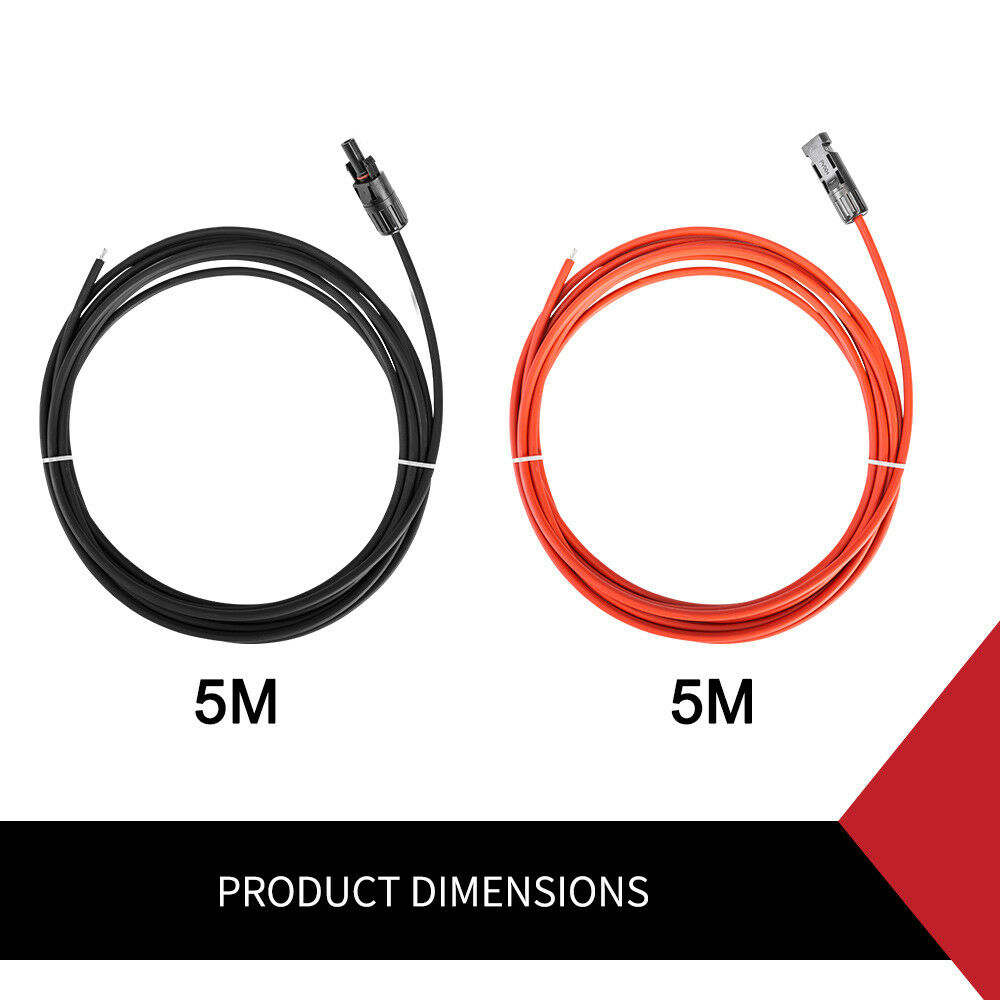

Cable Length:

5 meter (One pair)

Ingress Protection:

IP67

Ambient Temperature:

-40 ℃ ~ 90℃

Warranty 3 Year Warranty with Life-Time Tech Support
Package Included 1 One pair ( 1 piece black + 1 piece red ) 5 meter 10AWG Extension Cable Wire+ MC4 connectors
Brand Atem Power
Material Copper
Power Current 55A
IP Rating IP67
Temperature -40 ℃ ~ 90℃
Voltage DC1.8KV, AC:0.6~1KV
