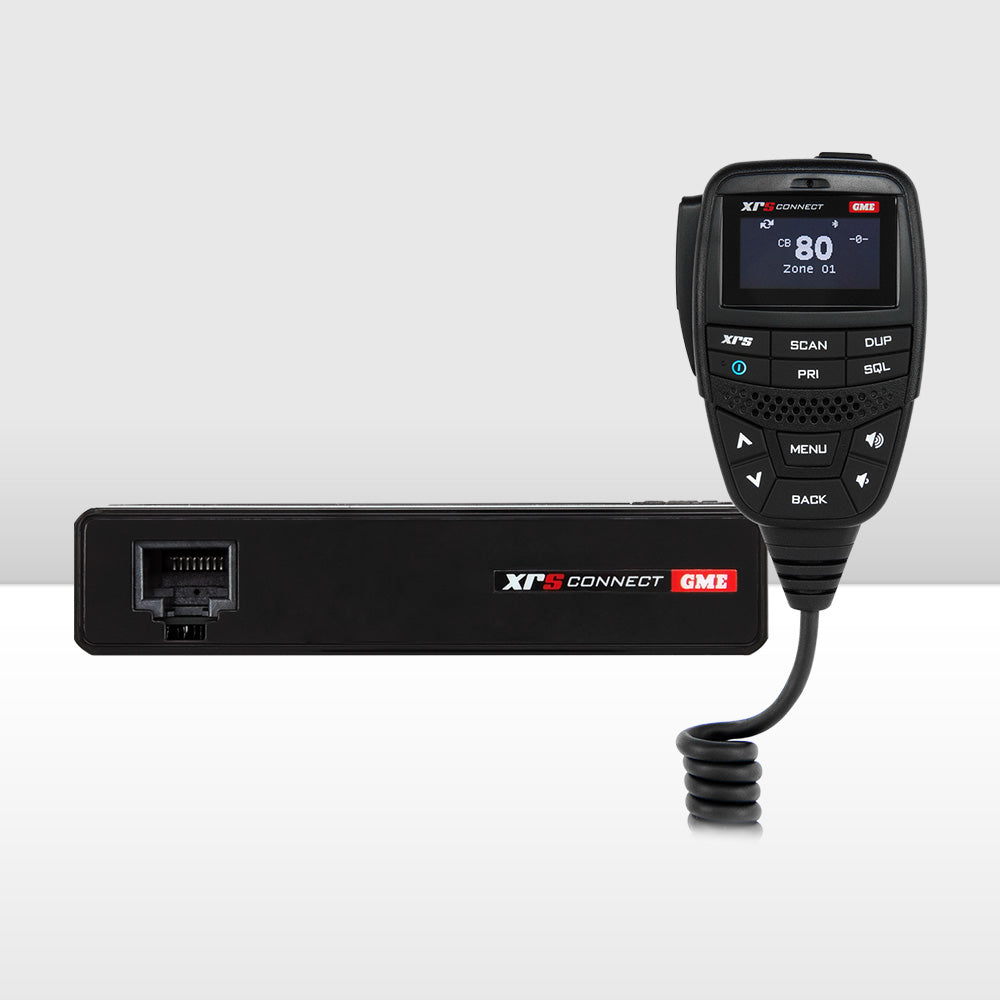

GME XRS™ Connect Super Compact UHF CB Radio
Description

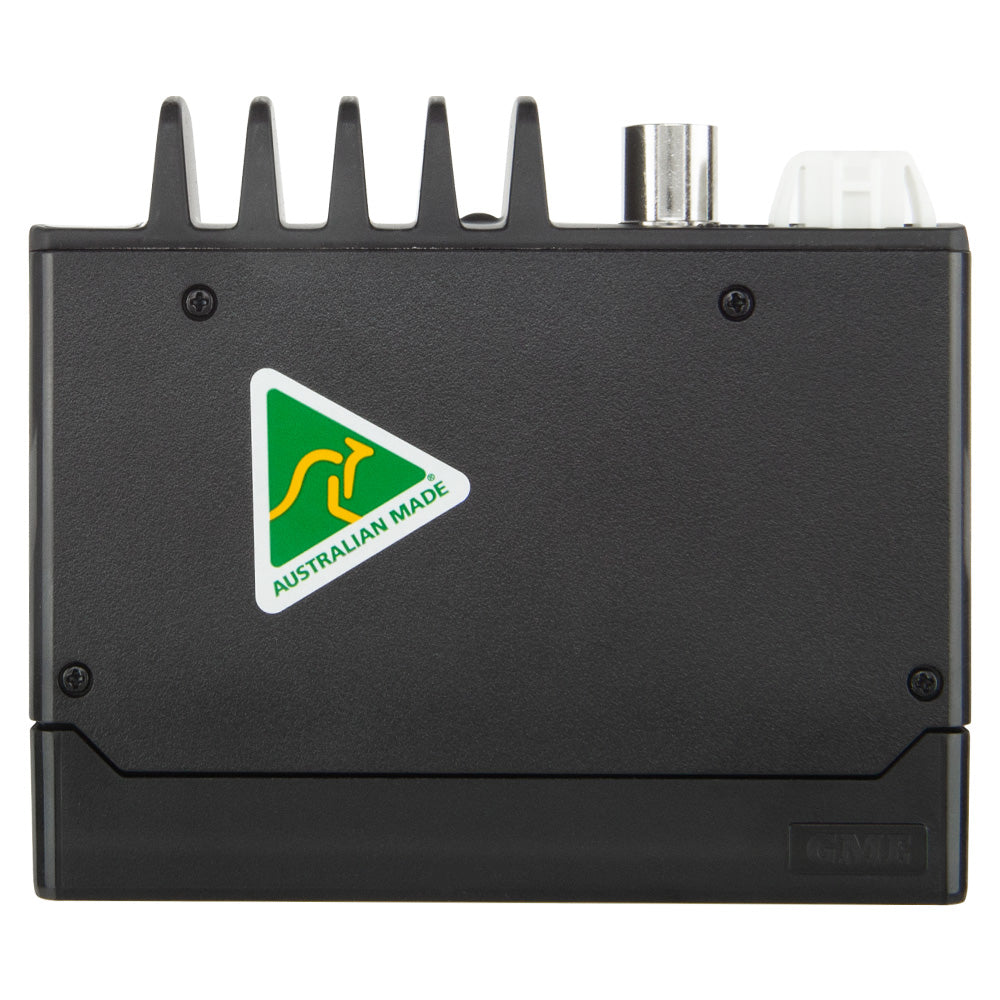

XRS™ Connect is an Australian Made radio platform designed to be smart, adaptable and rugged.
Featuring a professional grade speaker microphone complete with a class-leading 2-watt speaker, customisable buttons and a high contrast OLED screen guaranteeing a crystal clear, anti-glare display.
Enabled by Bluetooth® wireless technology, XRS™ Connect is the first of a new generation of connected UHF CB radios with unique features never seen before. They are the first ever UHF CB radios with App control, introducing new features such as creating and sharing scan lists and providing instant access to the entire Australian and New Zealand registered analogue frequency database.
As with many other smart devices, XRS™ Connect products are software upgradable via the XRS™ Connect app, keeping users up-to-date with the latest features and technology.
FEATURES
Bluetooth Wireless Technology – Smartphone Control

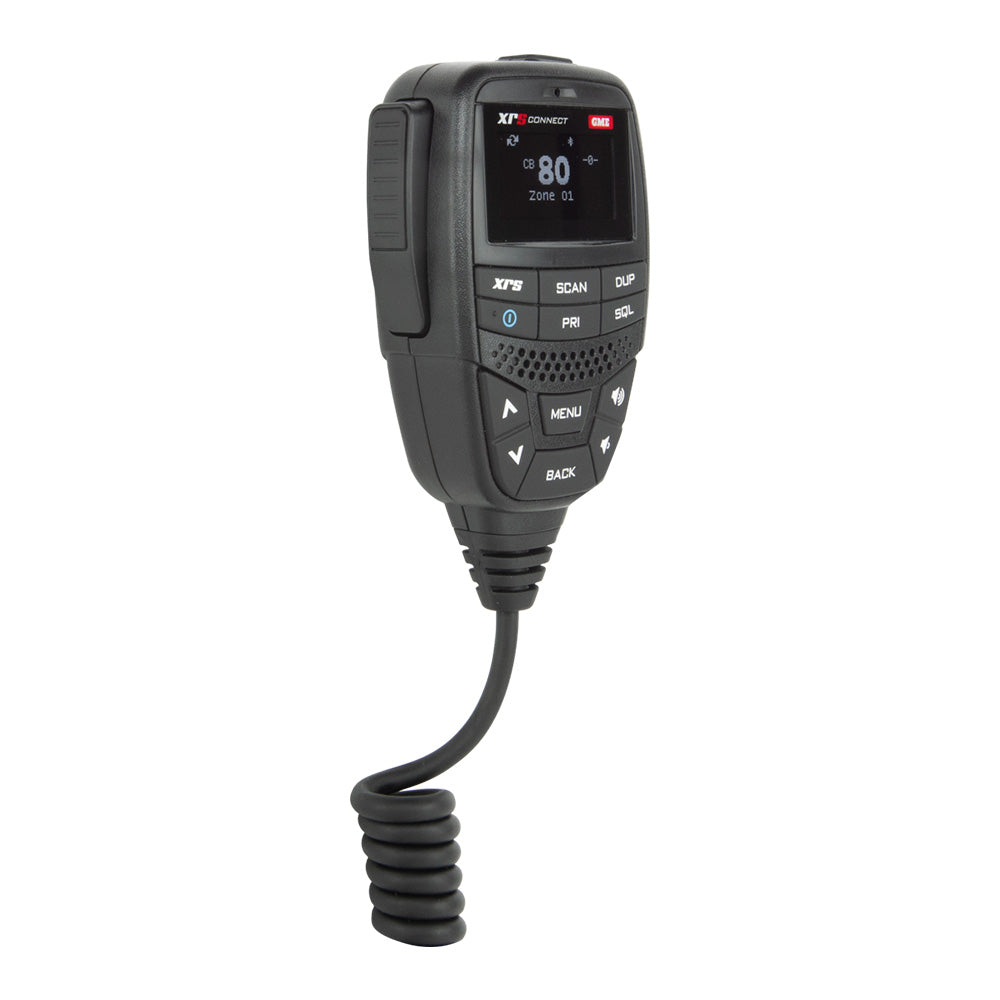

Professional Grade OLED Speaker Microphone
Class-leading 2 Watt Front-facing Speaker
User-customisable Buttons
Super Compact Design
Download the XRS Connect App on Google Play or the App Store
SPECIFICATIONS
ELECTRICAL
Compliant Specification:
Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service
Frequency Range:
476.425 477.4125 MHz
Number of Channels:
80 UHF CB
Channel Spacing:
12.5 kHz
Operation Mode:
Simplex or half Duplex with repeater talk around
Scanning Speed:
20 ms per channel (50 channels per second)
Antenna Impedance:
50 Ohms nominal
Operating Voltage Range:
10-16 volts DC
Battery Polarity:
Negative Earth
Nominal Battery Voltage:
12 volts DC
Over Voltage Protection:
30 volts DC maximum. At 18 volts DC the channel display flashes Hi DC for 5 seconds on receive. The RF power is reduced and TX flashes on transmit
Over Current Protection:
In-line 2A Fuse
Standard Test Voltage:
13.8 volts DC
Reverse Voltage Protection:
Diode Crowbar
Operating Temperature:
-10C to 60C
Transmitter
RF Output:
5.0 watts max
Modulation:
FM
Maximum Deviation:
Less
PACKAGE INCLUDES

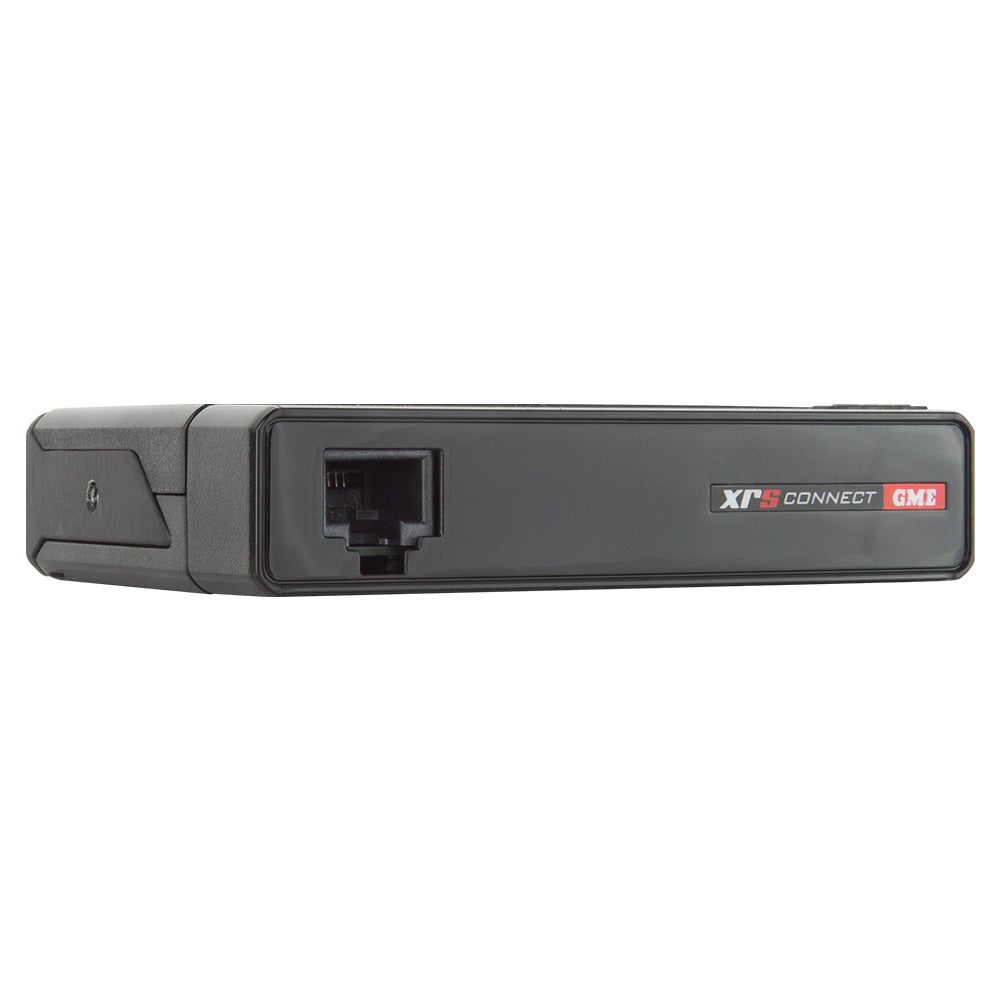

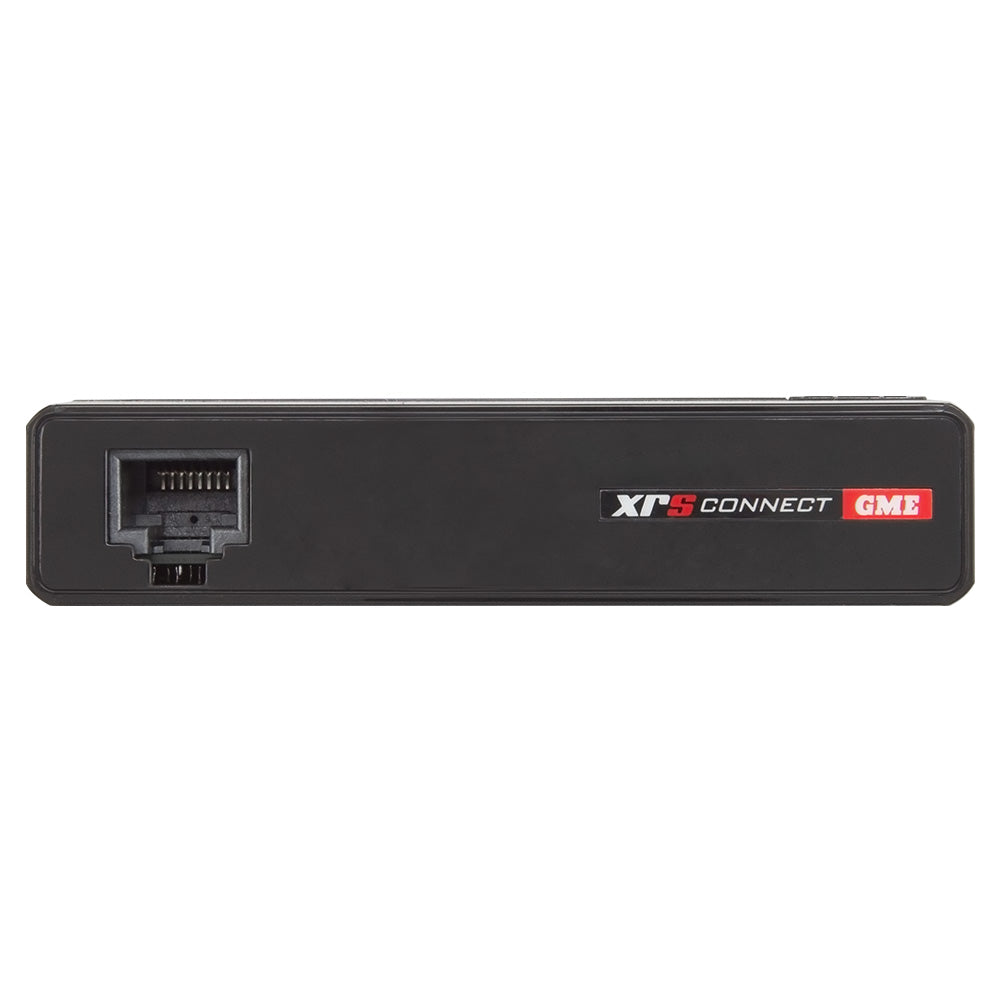

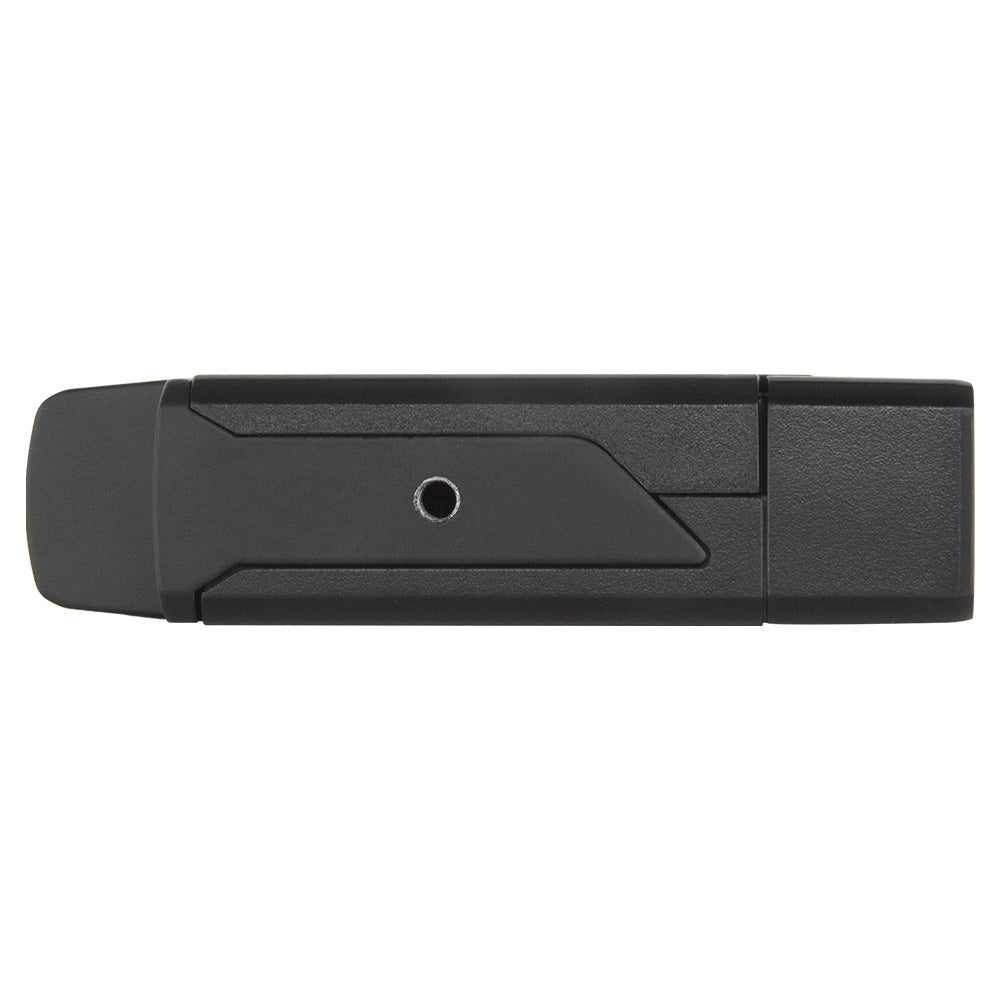

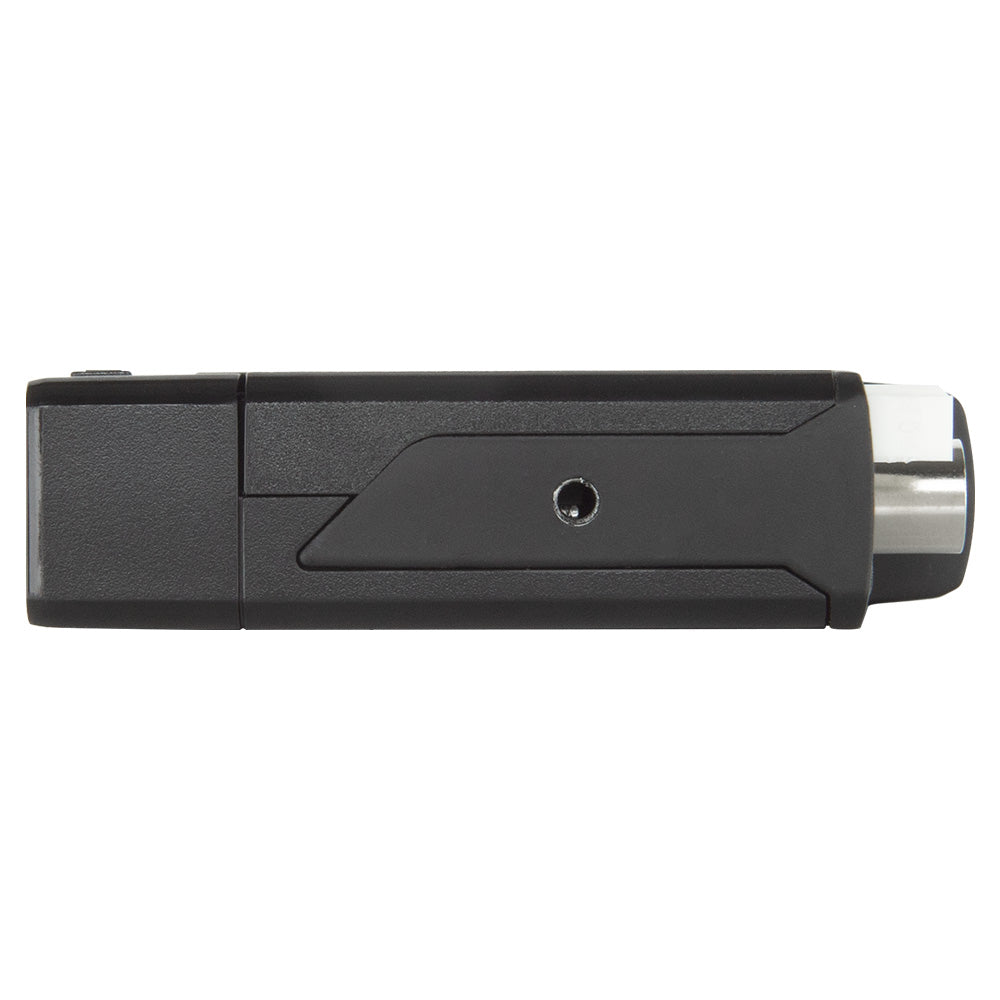

XRS™ Connect UHF CB Radio (XRS-330C)

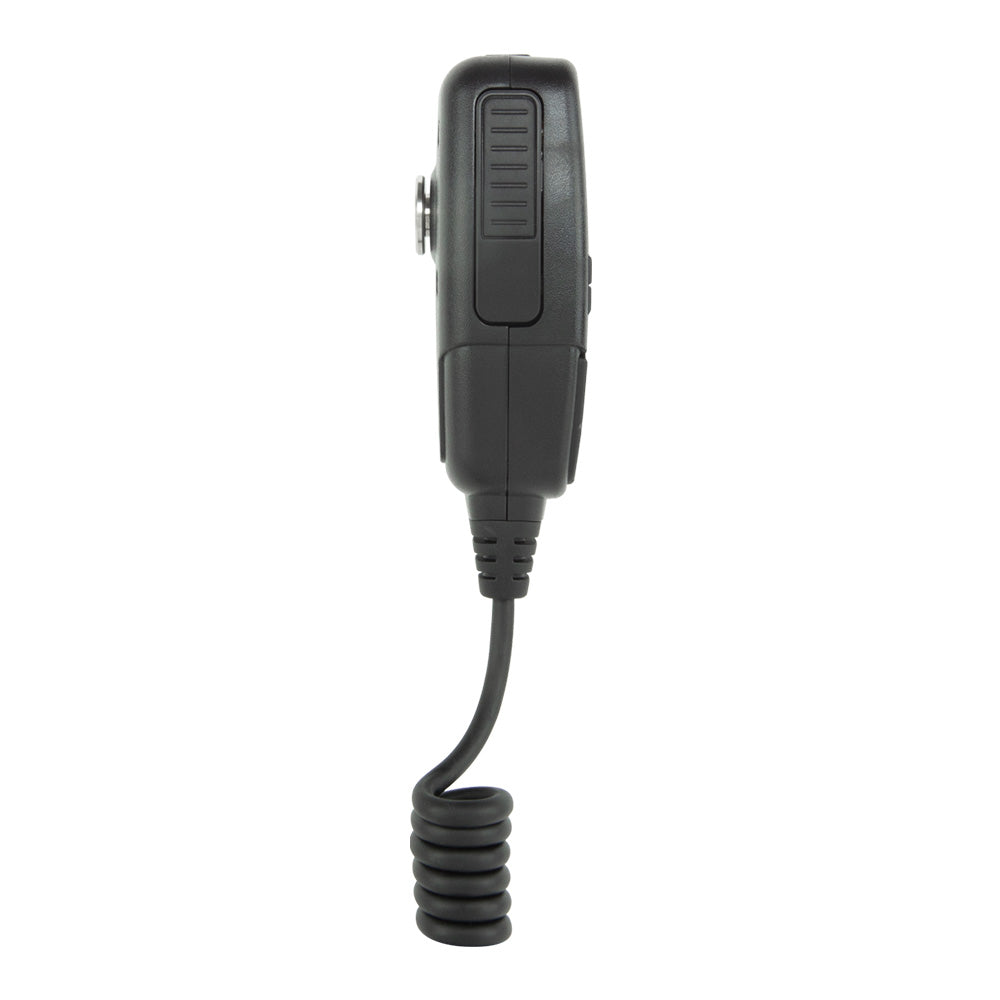

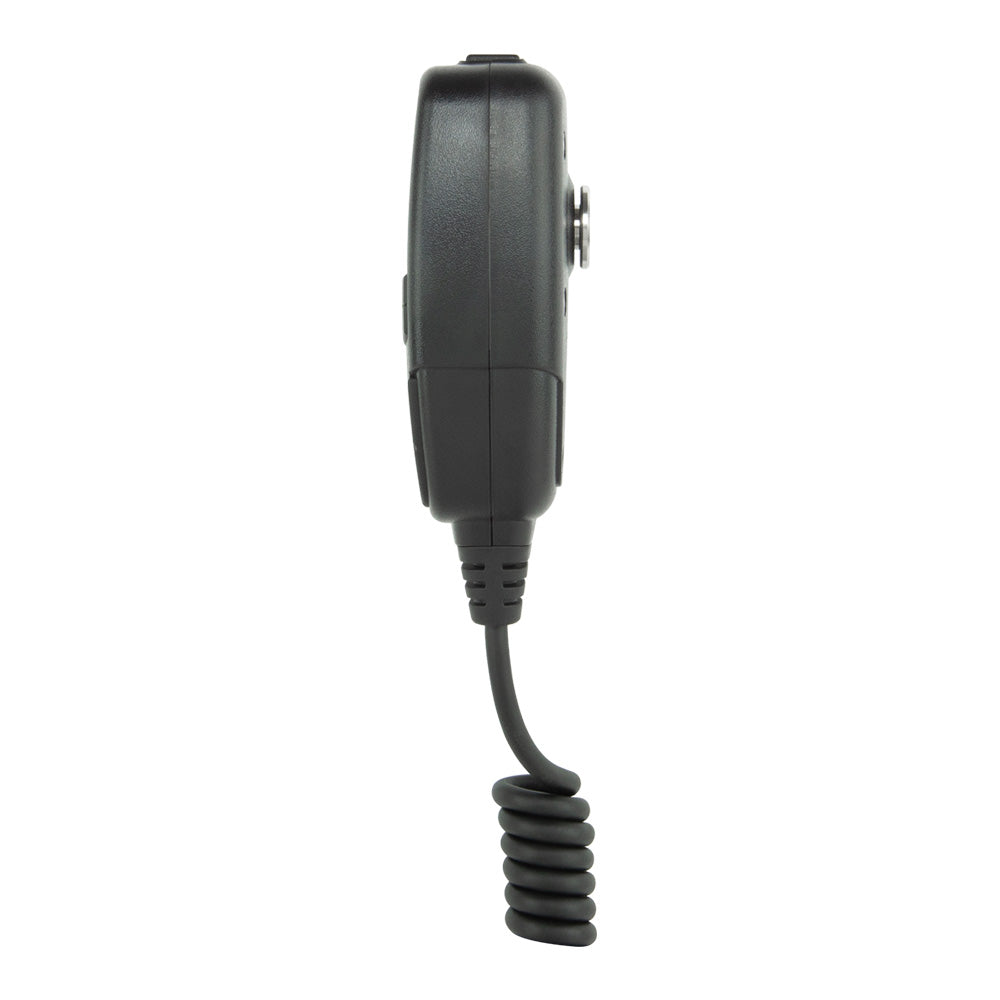

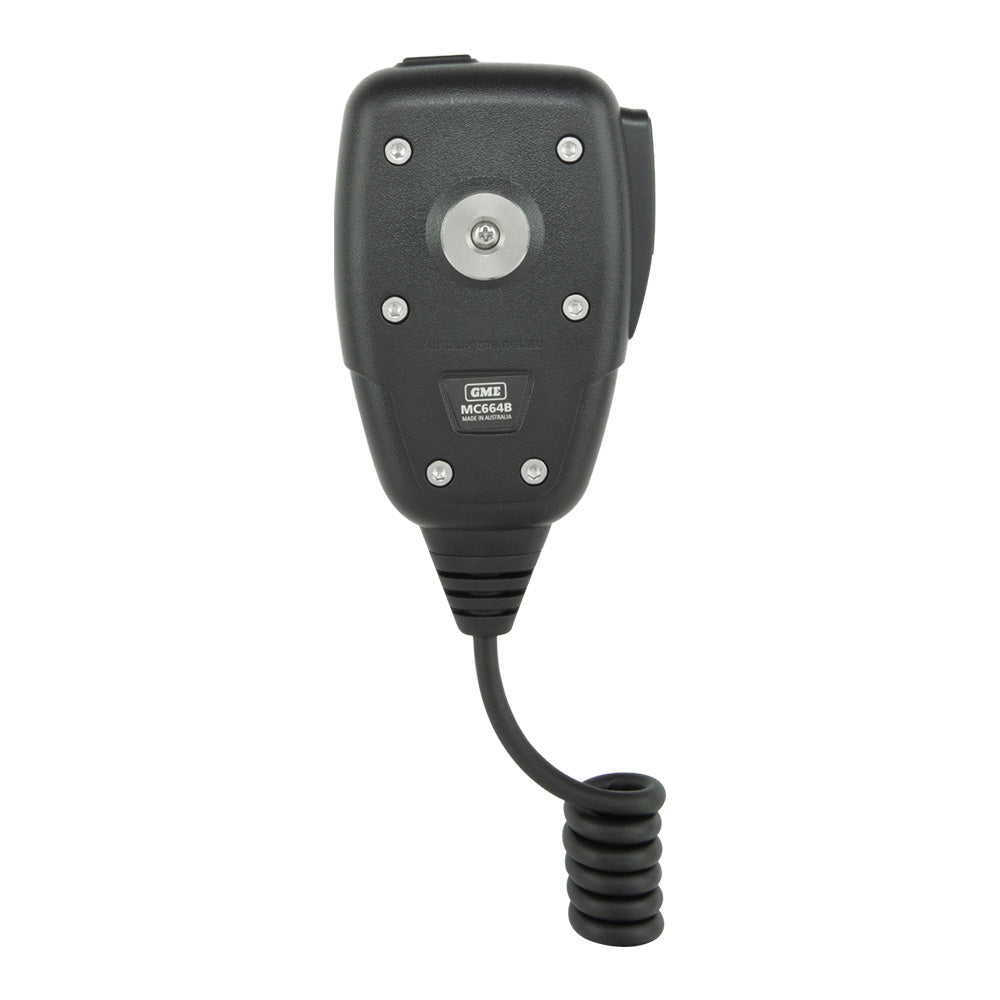

Professional-grade Speaker Microphone (MC664B)
Microphone Mounting Bracket (MB206)
Microphone Extension Lead (LE040)
Microphone Extension Adaptor Kit (AD008)
12V DC Power Lead (LE09)
Mounting Bracket
Mounting Hardware
Quick Start Guide
WARRANTY
5 Years Warranty
Specifications
| ELECTRICAL | |
| Compliant Specification: | Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service |
| Frequency Range: | 476.425 – 477.4125 MHz |
| Number of Channels: | 80 UHF CB |
| Channel Spacing: | 12.5 kHz |
| Operation Mode: | Simplex or half Duplex with repeater talk around |
| Scanning Speed: | 20 ms per channel (50 channels per second) |
| Antenna Impedance: | 50 Ohms nominal |
| Operating Voltage Range: | 10-16 volts DC |
| Battery Polarity: | Negative Earth |
| Nominal Battery Voltage: | 12 volts DC |
| Over Voltage Protection: | 30 volts DC maximum. At 18 volts DC the channel display flashes ‘Hi DC’ for 5 seconds on receive. The RF power is reduced and TX flashes on transmit |
| Over Current Protection: | In-line 2A Fuse |
| Standard Test Voltage: | 13.8 volts DC |
| Reverse Voltage Protection: | Diode Crowbar |
| Operating Temperature: | -10°C to 60°C |
| Transmitter | |
| RF Output: | 5.0 watts max |
| Modulation: | FM |
| Maximum Deviation: | Less than ± 2.5 kHz at + 20 dB limiting |
| Spurious Emissions: | Less than -70 dBc |
| Transmit Frequency Response: | +6 dB per octave 300 Hz to 3 kHz + 1-3 dB |
| Demodulated Audio Signal to Noise: | > 45 dB unweighted |
| Current Consumption: | 1.7 Amps with 50 Ohm termination |
| Receiver | |
| Intermediate Frequencies: | 38.85 MHz, 450 kHz |
| Current Consumption: | Less than 175 mA muted 750 mA full volume |
| Sensitivity: | -122 dBm for 12 dB SINAD unweighted |
| Selectivity: | -6 dB at + 3.5 kHz;‑60 dB at ± 12.5 kHz |
| Intermodulation Immunity: | -72 dB |
| Blocking Immunity: | -98 dB |
| Spurious Response Immunity: | 70 dB |
| Audio Power: | 3 watts average into 4 Ohms |
| Audio Signal to Noise: | > 45 dB unweighted |
| Receive Frequency Response: | ‑6 dB/Octave de‑emphasis;300 Hz to 3 kHz + 1–3 dB |
| Current Consumption: | <175 mA muted, 750 mA full volume |
| Conducted Spurious Emission: | Less than -70 dBm |
| Dimensions: | 22 (H) x 99.5 (L) x 86 (D) mm |
| Weight: | 137 grams |
| 12 Volt Power Supply: | Two core cable with bulkhead connector in rear panel |
| Antenna: | FME panel socket |
| External Speaker: | 3.5 mm mono jack |
| Microphone Port: | 8 Pin RJ45 Connection |
Package Includes
- XRS™ Connect UHF CB Radio (XRS-330C)
- Professional-grade Speaker Microphone (MC664B)
- Microphone Mounting Bracket (MB206)
- Microphone Extension Lead (LE040)
- Microphone Extension Adaptor Kit (AD008)
- 12V DC Power Lead (LE09)
- Mounting Bracket
- Mounting Hardware
- Quick Start Guide
Warranty
GTIN
9319493267892
