2x 10M Extension Cable Wire Connectors
Sustainability features
This product has sustainability features recognised by trusted certifications:
Contains at least 50% recycled material.
Made with chemicals safer for human health and the environment.
Manufactured on farms or in facilities that protect the rights and/or health of workers.
Certification Body
Intertek
Certification number
TE-00299281
FREE SHIPPING ZONE
We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description
Features

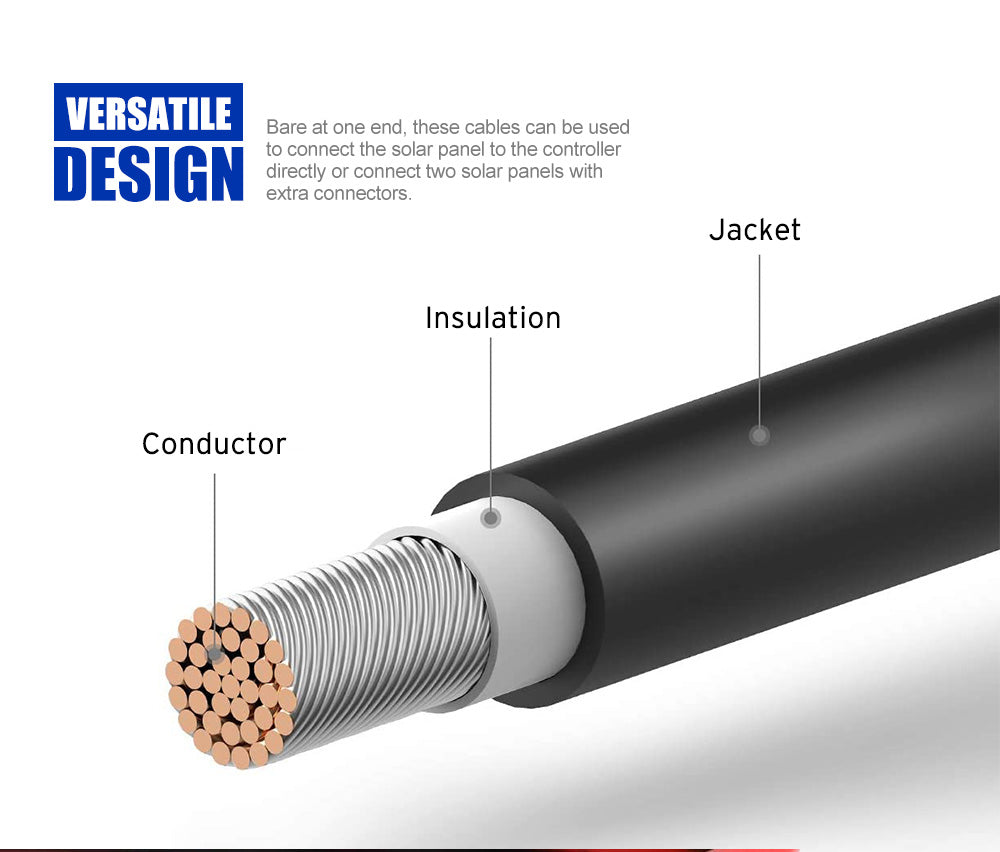

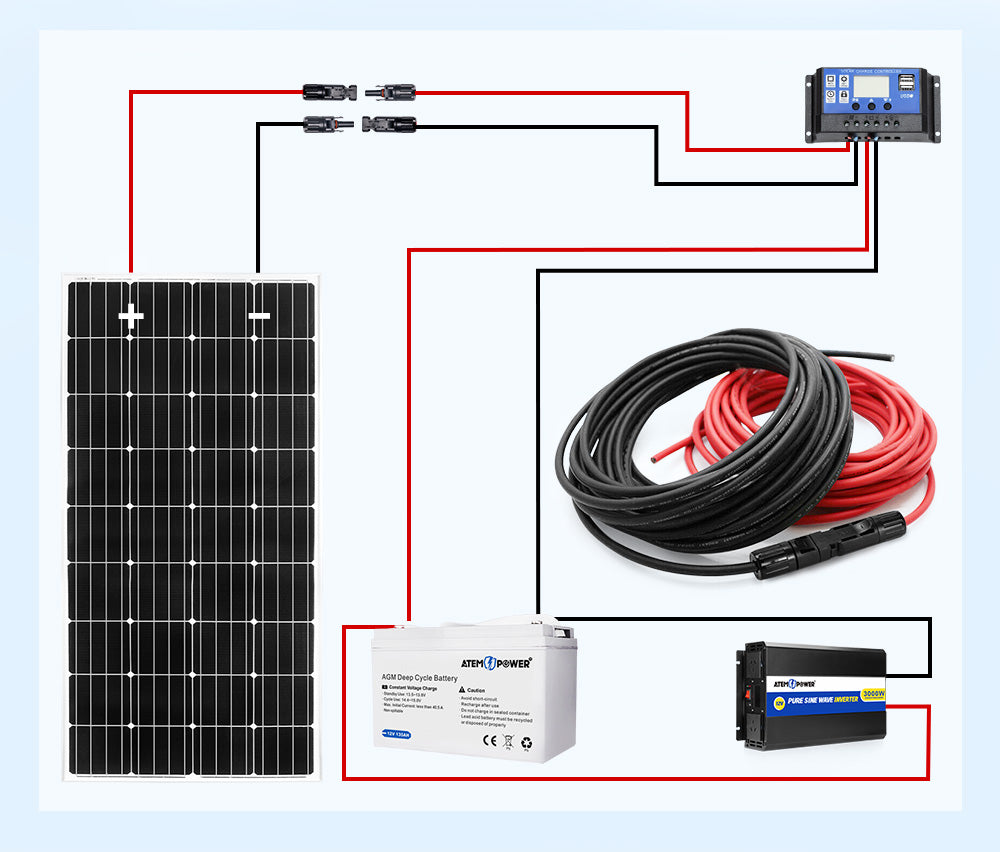

- Versatile Design: Bare at one end, these cables can be used to connect the solar panel to the controller directly or connect two solar panels with extra connectors.

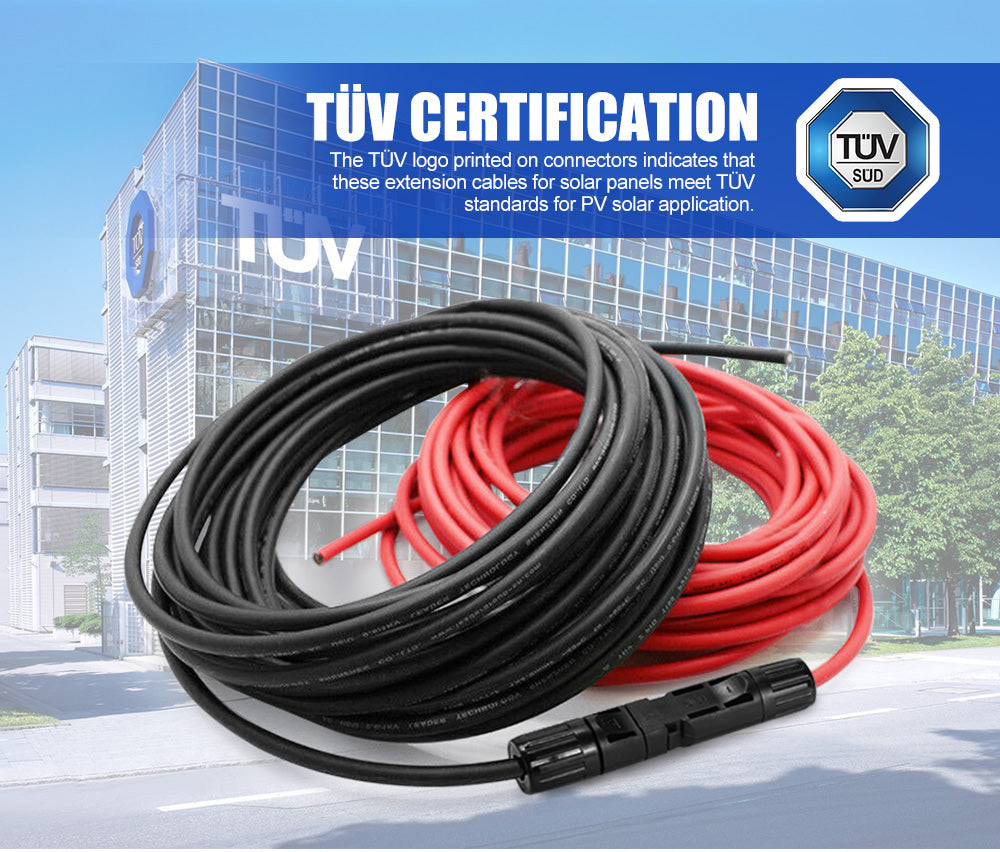

- TÜV Certification: The TÜV logo printed on connectors indicates that these extension cables for solar panels meet TÜV standards for PV solar application.

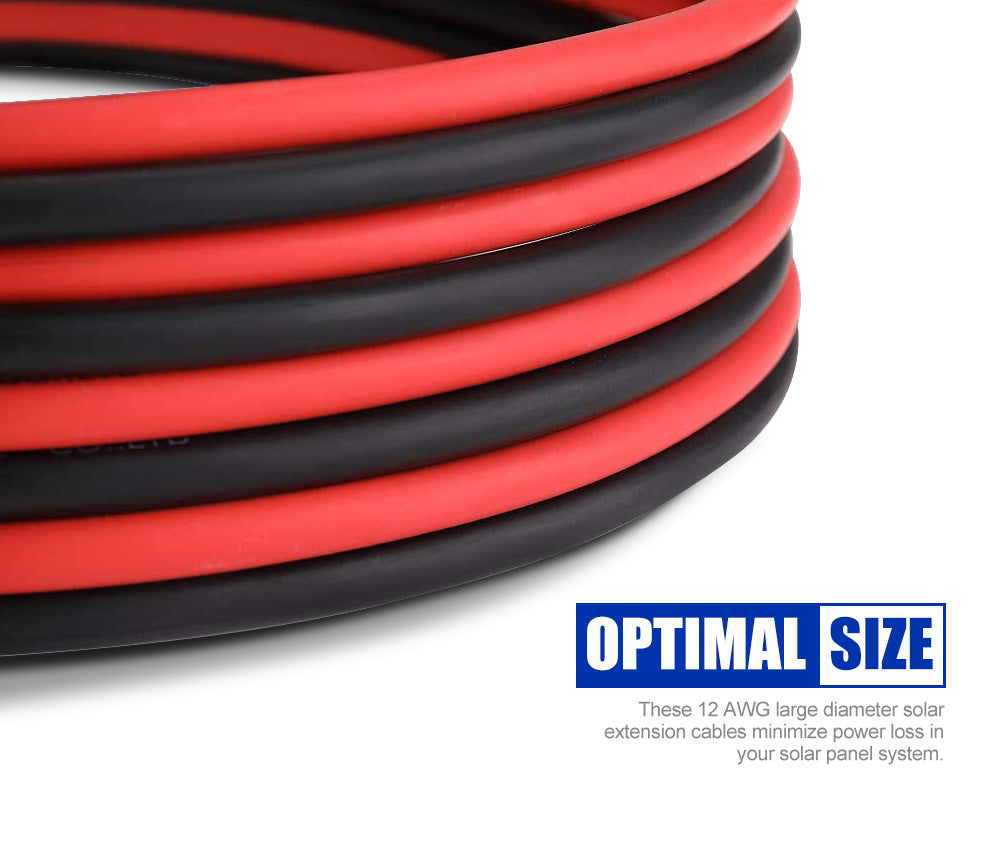

- Optimal Size: These large diameter solar extension cables minimize power loss in your solar panel system.

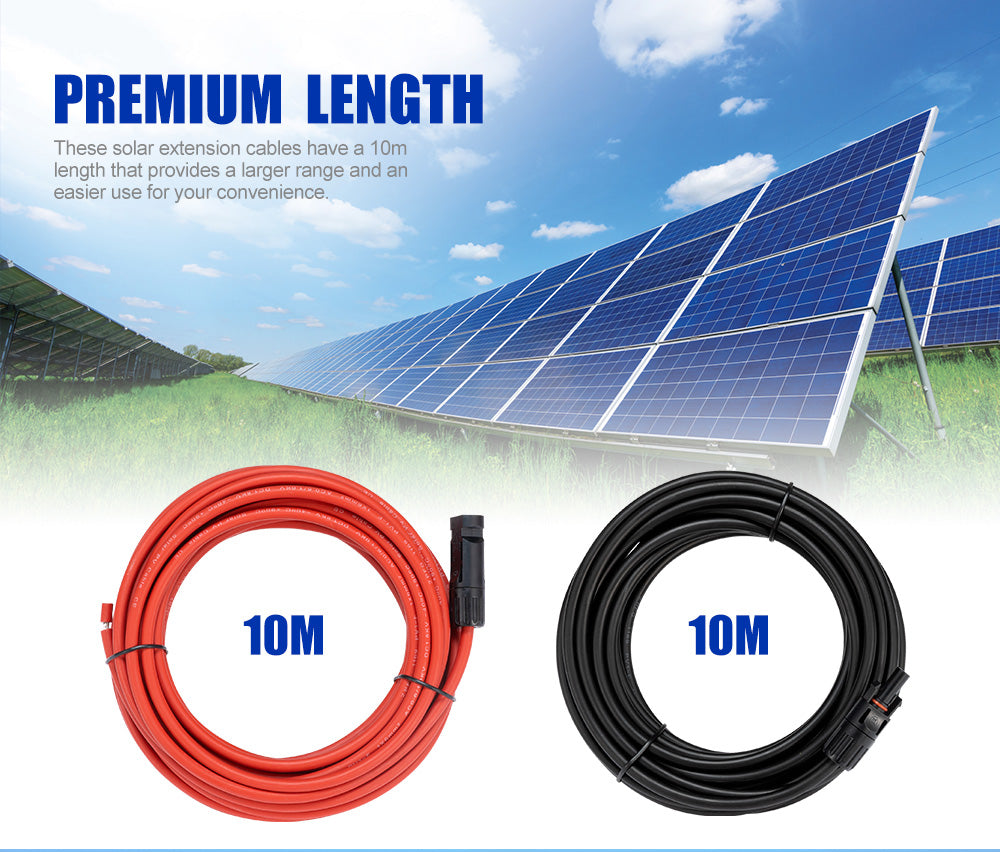

- Premium Length: These solar extension cables provide a larger range and an easier use for your convenience.
- Strong Practicability: These solar extension cables extend the distance between your panels or controllers, which is ideal for RV, caravans, boats, etc.

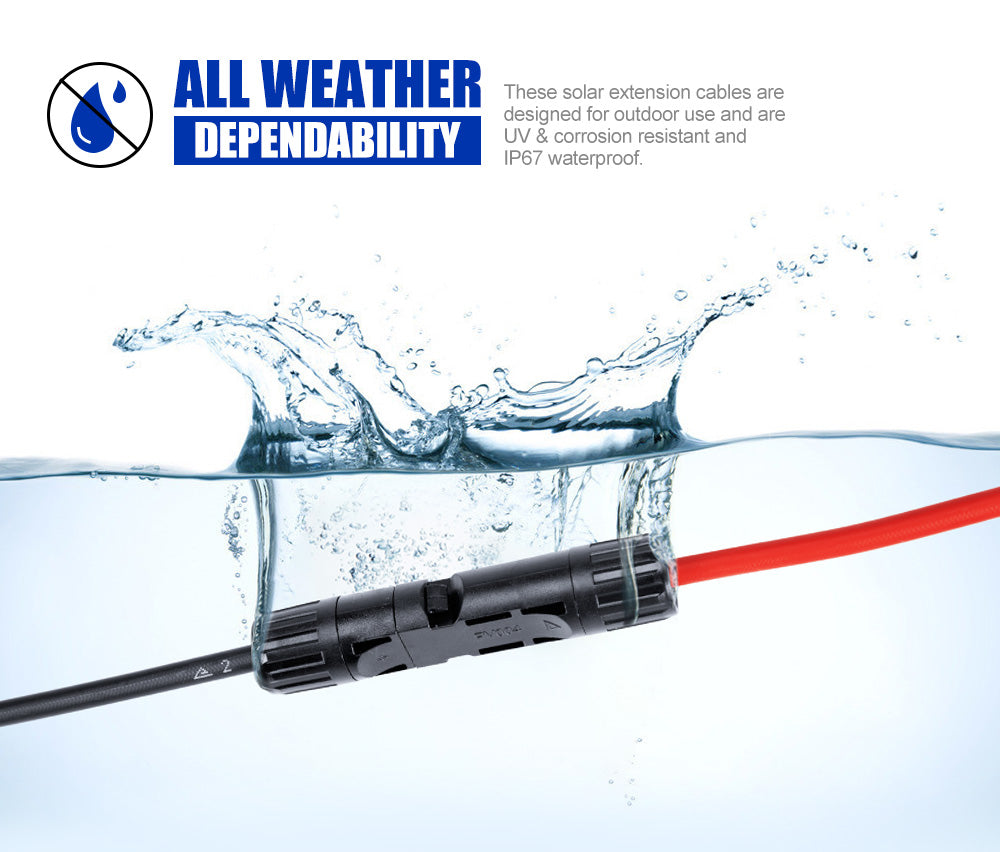

- All Weather Dependability: These solar extension cables are designed for outdoor use and are UV & corrosion resistant and IP67 waterproof.
- Durable Construction: With hard PC connectors, these stranded tinned copper wires are dual insulated to provide more safety, flexibility & durability.

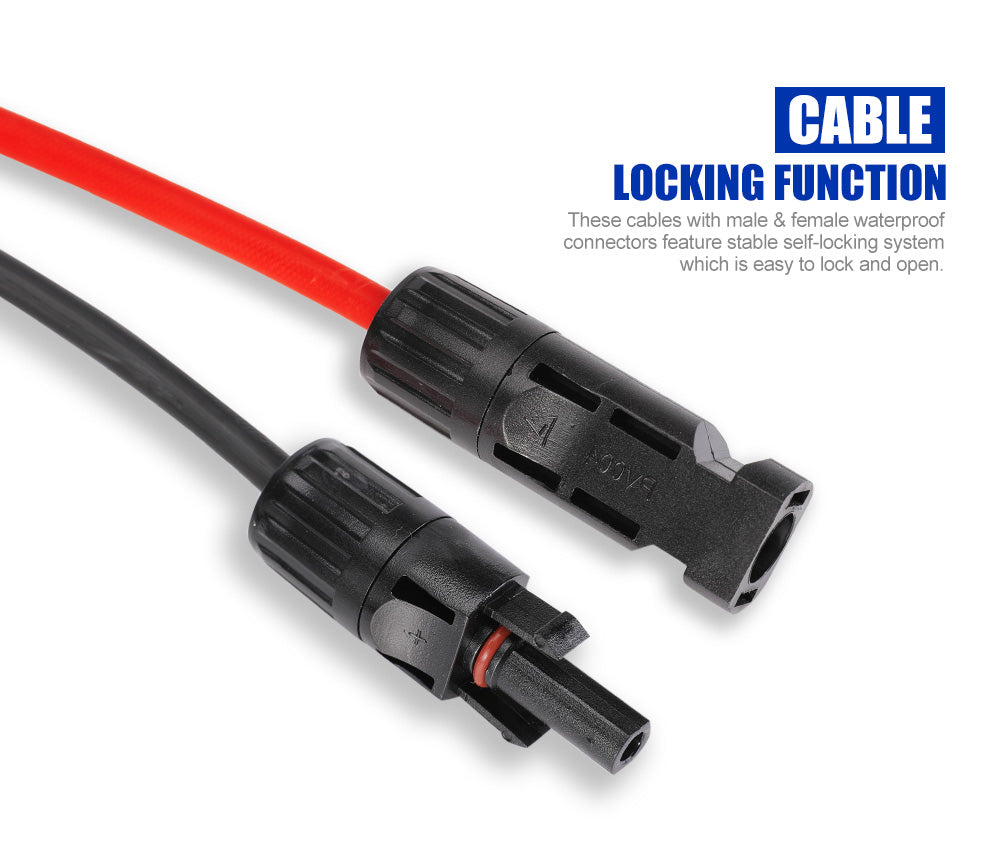

- Cable Locking Function: These cables with male & female waterproof connectors feature stable self-locking system which is easy to lock and open.
FAQs
Specifications
| 10M 4MM² Cable | |
| Material: | Copper |
| Length: | 2 x 10M |
| Wire Gauge: | 12AWG (4mm²) |
| Rated Voltage: | DC1.5KV, AC:0.6/1KV |
| Rated Current: | 40~44A |
| Certification: | CE & TUV |
| Ingress Protection: | IP67 |
| Ambient Temperature: | -40 ℃ ~ 90℃ |
| Gross Weight: | 1.3kg |
| 5M 6MM² Cable | |
| Insulation Material: | XLPO |
| Length: | 2 x 5M |
| Wire Gauge: | 10AWG (6mm²) |
| Maximum Voltage: | 1000V |
| Wire Material: | Stranded Tinned Copper |
| Certification: | CE & TUV |
| Waterproof Rating: | IP67 |
| Plug Material: | PC |
| Gross Weight: | 1kg |
| 10M 6MM² Cable | |
| Insulation Material: | XLPO |
| Length: | 2 x 10M |
| Wire Gauge: | 10AWG (6mm²) |
| Maximum Voltage: | 1000V |
| Wire Material: | Stranded Tinned Copper |
| Certification: | CE & TUV |
| Waterproof Rating: | IP67 |
| Plug Material: | PC |
| Gross Weight: | 1.9kg |
Package Includes
- 2 x Solar Extension Cable with Connector
Warranty
GTIN
9356307000795
