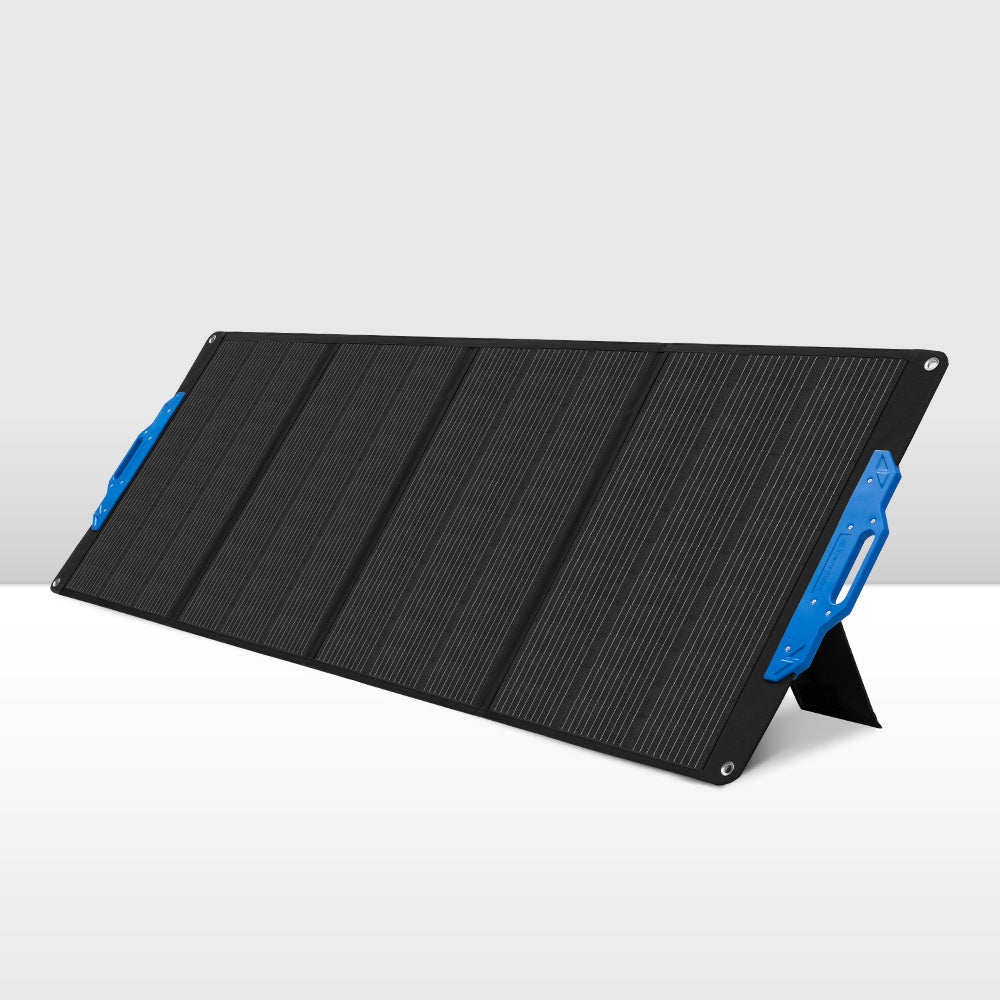

Atem Power 300W Flexible Folding Solar Panel Kit 12V Solar Mat Blanket Camping
FREE SHIPPING ZONE
We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.
Sustainability features
This product has sustainability features recognised by trusted certifications:
Contains at least 50% recycled material.
Made with chemicals safer for human health and the environment.
Manufactured on farms or in facilities that protect the rights and/or health of workers.
Certification Body
Intertek
Certification number
TE-00299281

Videos
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Description
Features

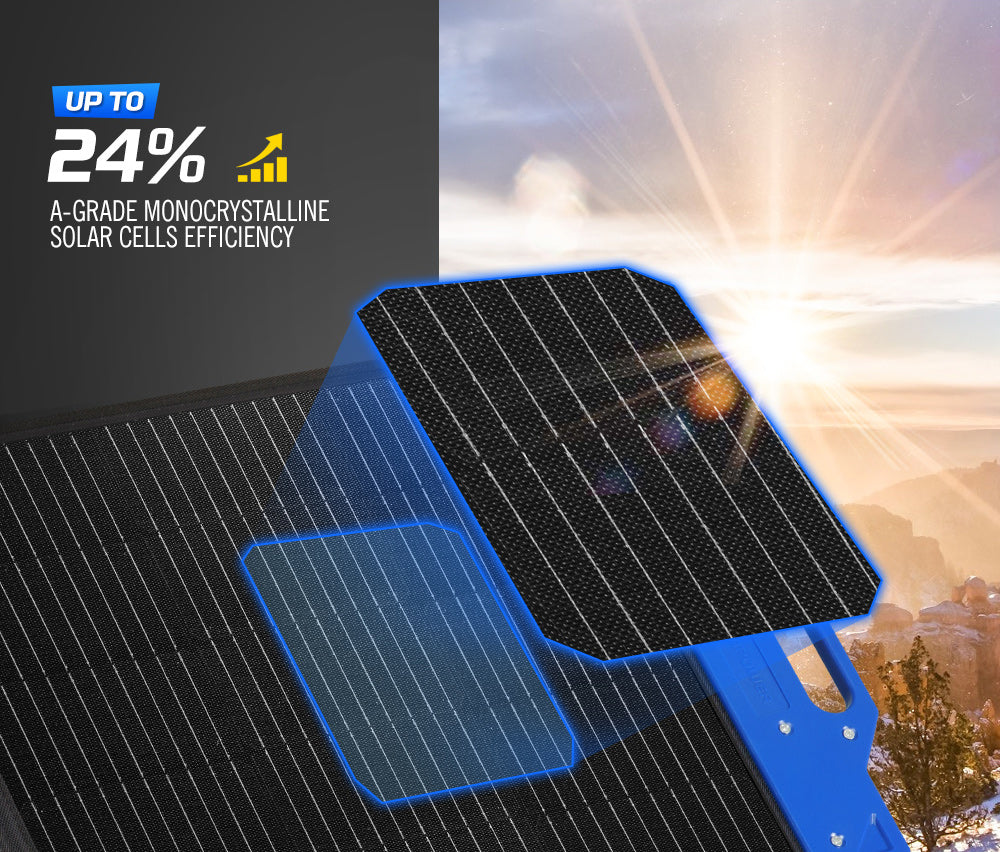

- Charge at Top Speed: A Grade m onocrystalline solar cells boast an unrivaled 24% energy conversion efficiency for lightning-fast charging.

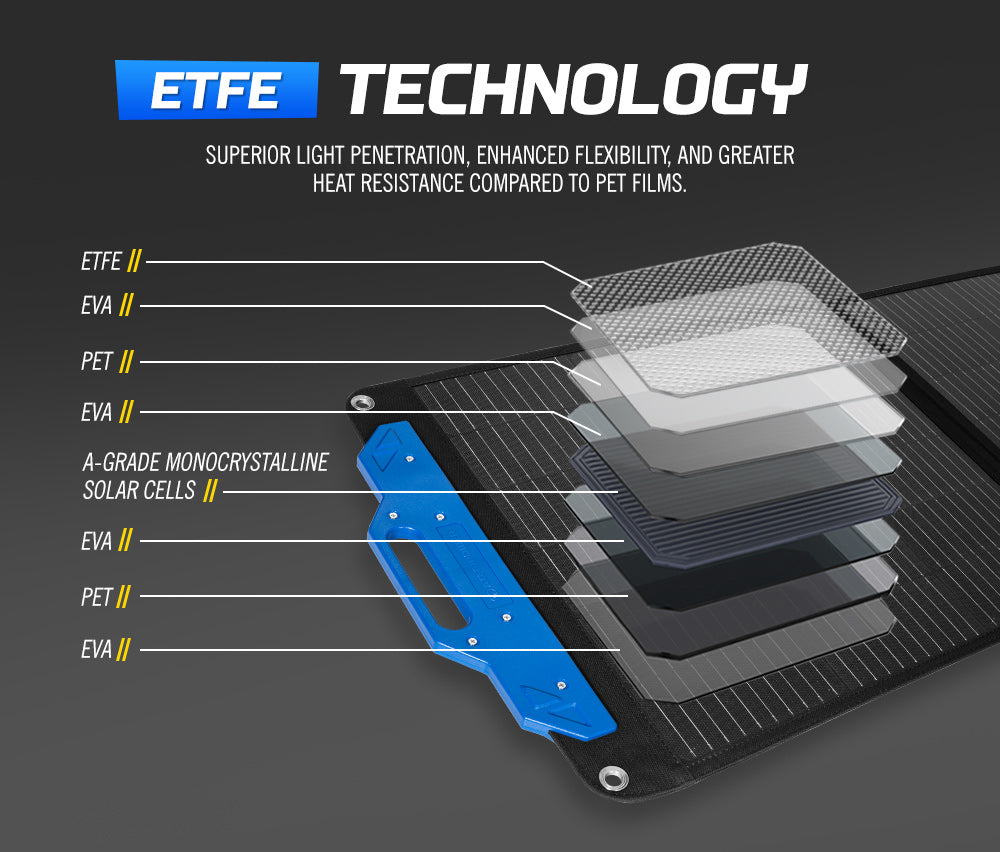

- Subversive ETFE Tech: Our solar panel use ETFE technology, allowing for higher light penetration, excellent flexibility, and more heat resistance than PET films.
- No Interruptions: Hassle-free reconnecting with the auto-optimization function, ensuring an immediate connection when sunlight returns after an interruption.

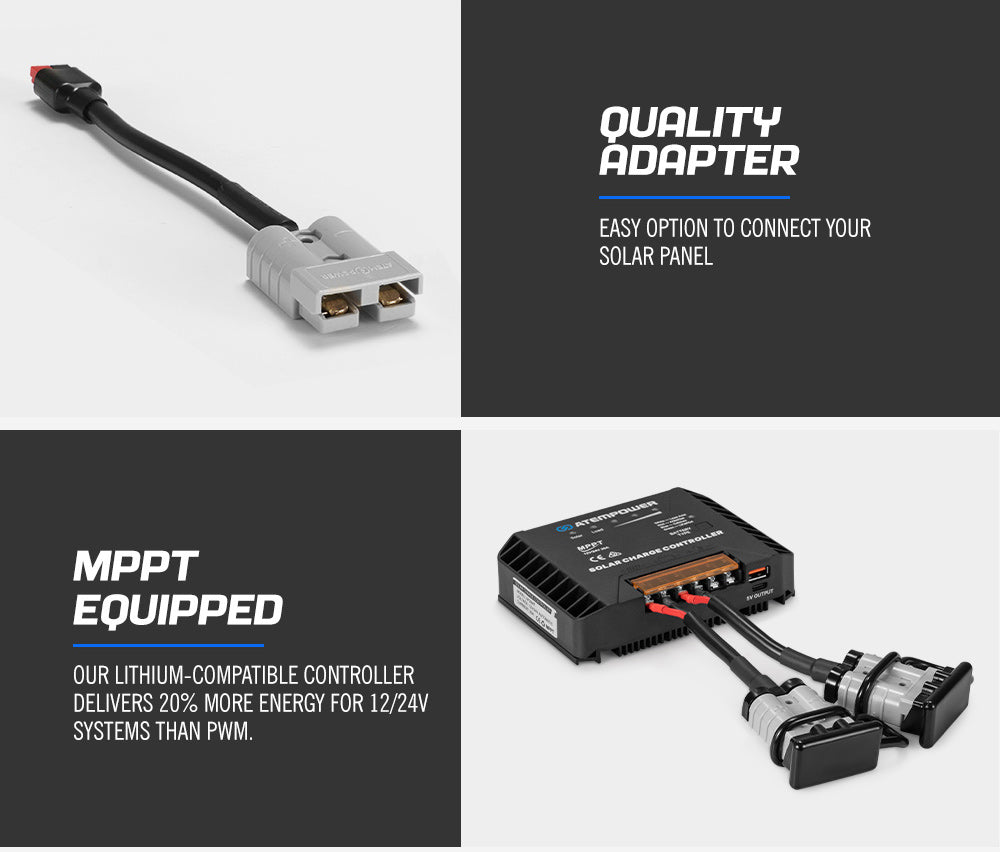

- Upgraded MPPT Controller: Crank up your power with our lithium-compatible controller, designed for 12/24V systems to deliver 20% more energy than PWM ones.

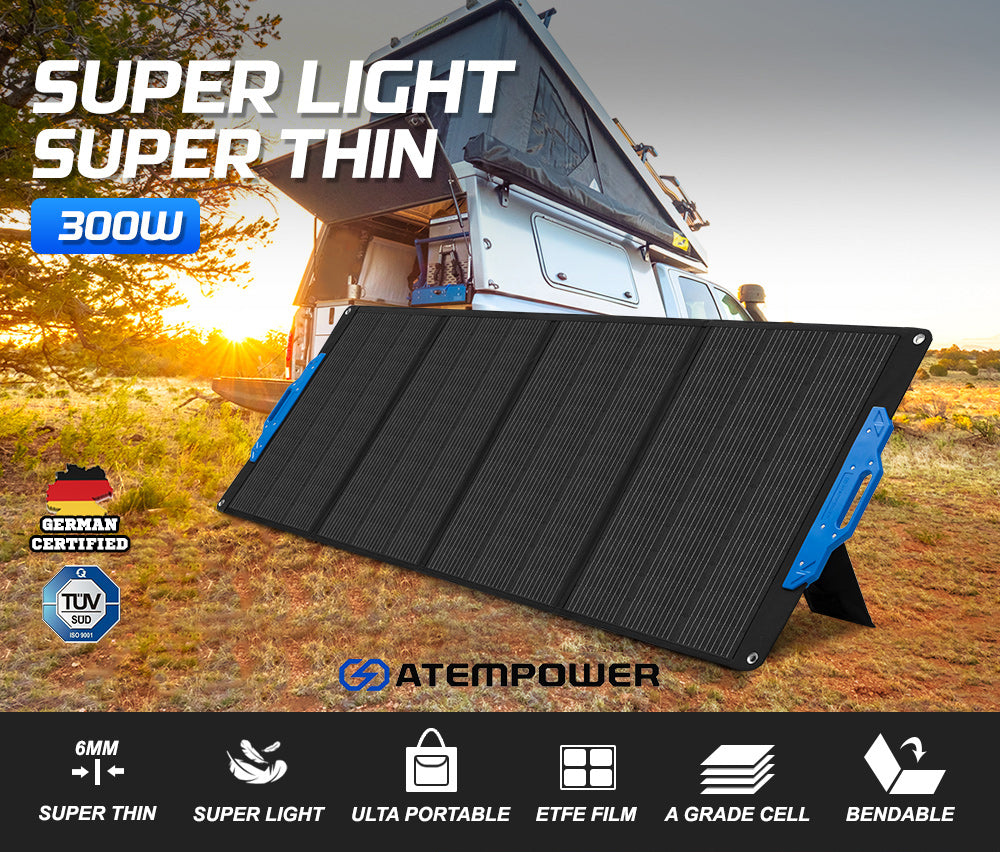

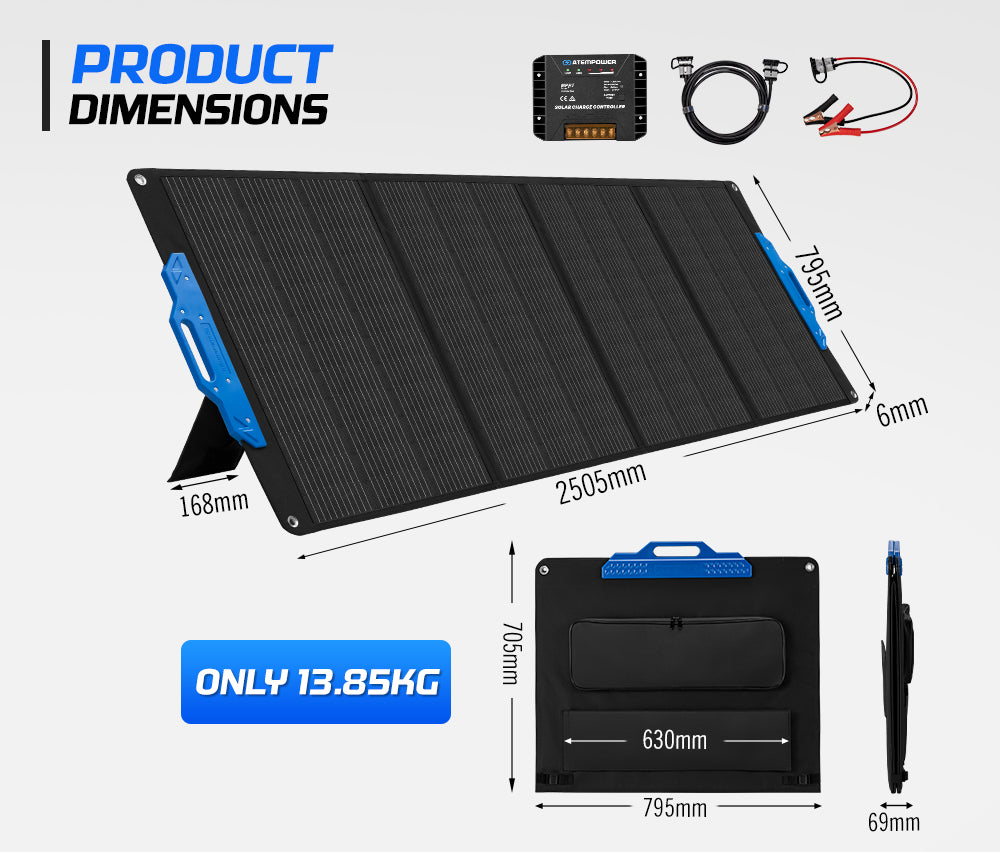

- Grab and Go: Take this foldable solar panel in a briefcase form anywhere with its portable design and lightweight of only 13.85kg, featuring a sturdy carrying handle.

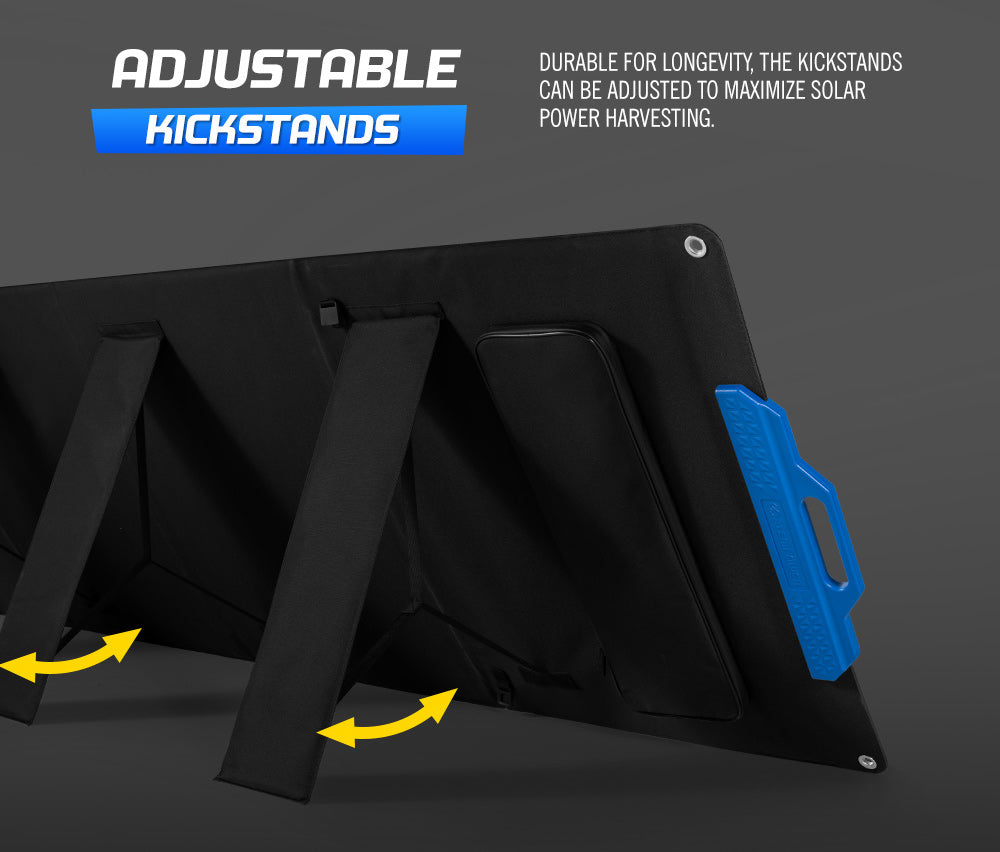

- Harvest More Power: Maximize solar power harvesting with adjustable kickstands, durable for long-lasting use.

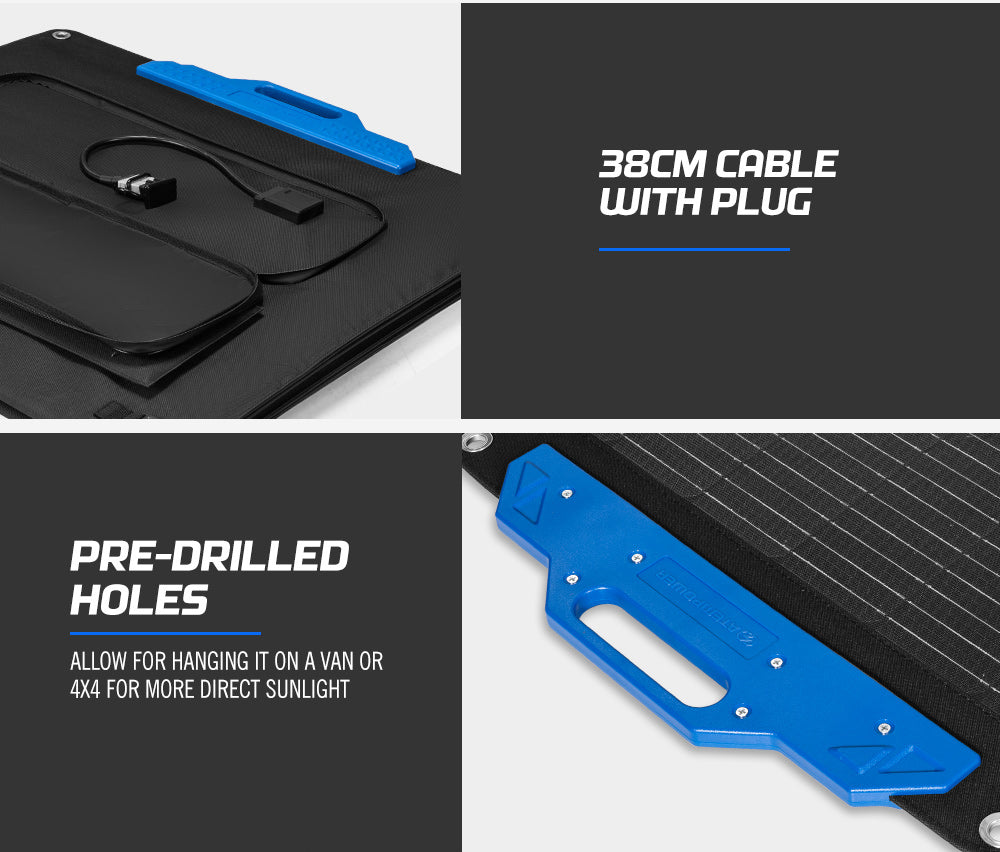

- Easy to Mount: Hang the solar panel on your van or 4x4 for direct sunlight using the pre-drilled holes on the frame, or use tent pegs to fasten it to the kickstands.
- Convenient Handling: The magnetic handles make it easy to unfold and collect sun power, and then fold and carry the solar panel away with ease.
FAQs
Specifications
| Solar Panel: | |
| Cell Type: | A Grade Monocrystalline |
| Number of Cells: | 144 (3 x 12 x 4) |
| Cell Efficiency: | 24% |
| Film Material: | ETFE |
| Maximum Power: | 300W |
| Open-Circuit Voltage (VOC): | 25.87V |
| Short-Circuit Current (ISC): | 15.49A |
| Maximum Power Voltage (VMP): | 20.7V |
| Maximum Power Current (IMP): | 14.49A |
| Maximum System Voltage: | 60V |
| Operation Temperature: | -30°C ~ 70°C |
| Temperature Coefficient of Pmax: | -0.35%/ºC |
| Temperature Coefficient of Voc: | -1.84mV/ºC |
| Temperature Coefficient of Isc: | 2.6mA/ºC |
| Junction Box: | |
| Wire Size: | 2.5mm² (5m) |
| MPPT Controller: | |
| Battery Voltage Range: | 12V/24V |
| Max. PV Open Circuit Voltage: | 50V |
| Max. Solar Input Voltage: | 50V |
| Rated Charge Current: | 20A |
| Rated Discharge Current: | 20A |
| Max. PV Input Power: | 500W |
| Discharge Circuit Voltage Drop: | ≤0.3V |
| Self Consumption: | ≤8ma |
| No Load Current: | <10ma |
| Standby Current Draw: | ≤4ma |
| Tracking Efficiency: | 99% |
| Conversion Efficiency: | ≤ 98% |
| USB Output: | Type A+Type C; 5V/2.4A |
| Operation Temperature: | -20℃~50℃ |
| Storage Temperature: | -30℃~70℃ |
| Relative Humidity: | ≤90% |
| Package Size: | 83cm(L) x 74cm(W) x 11.5cm(H) |
| Package Weight: | 16.85kg |
Package Includes
- 1 x ATEM POWER 300W Foldable Monocrystalline Solar Panel
- 1 x ATEM POWER 20A MPPT Solar Charge Controller
- 1 x 4.5m Extension Cable with Anderson Style Plugs
- 1 x 0.5m Cable with Alligator Clips and Anderson Style Plug
- 1 x User Manual
Warranty
GTIN
9356307011210
Note: Please do not use 'P.O. Box' as your mailing address
