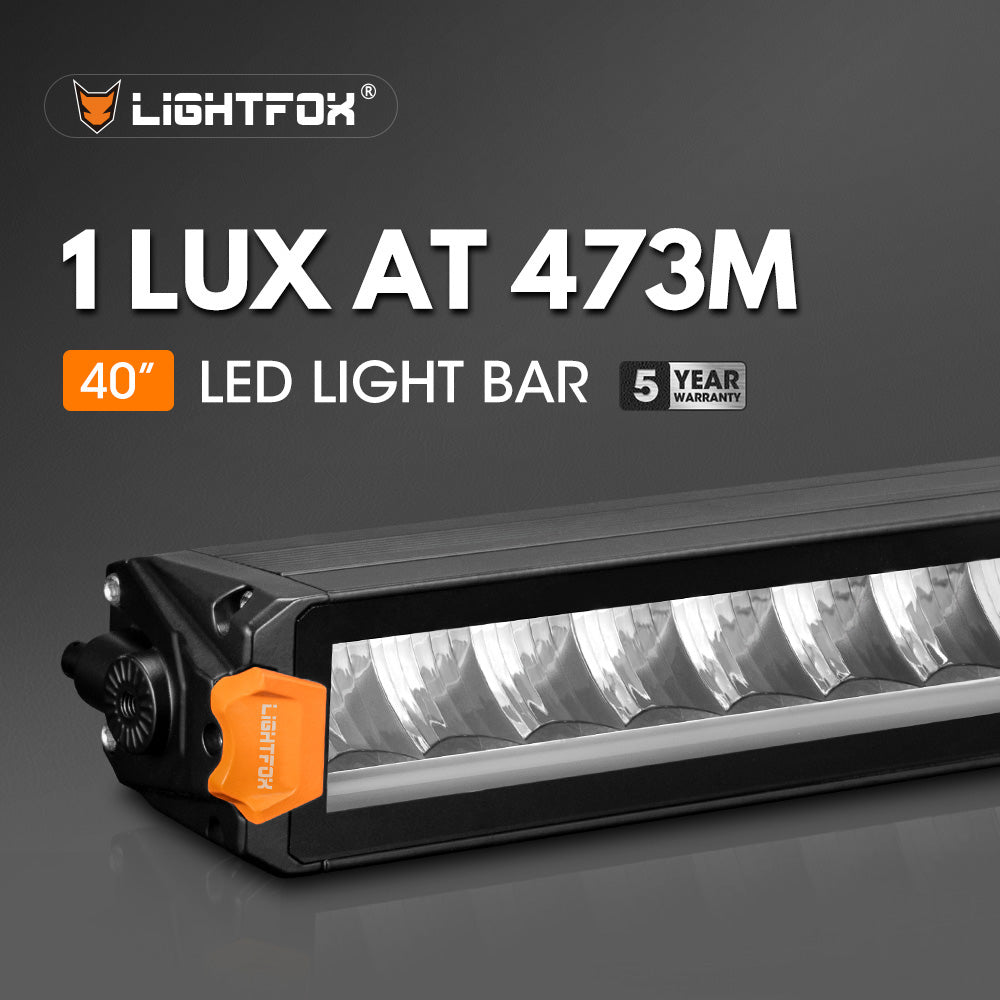

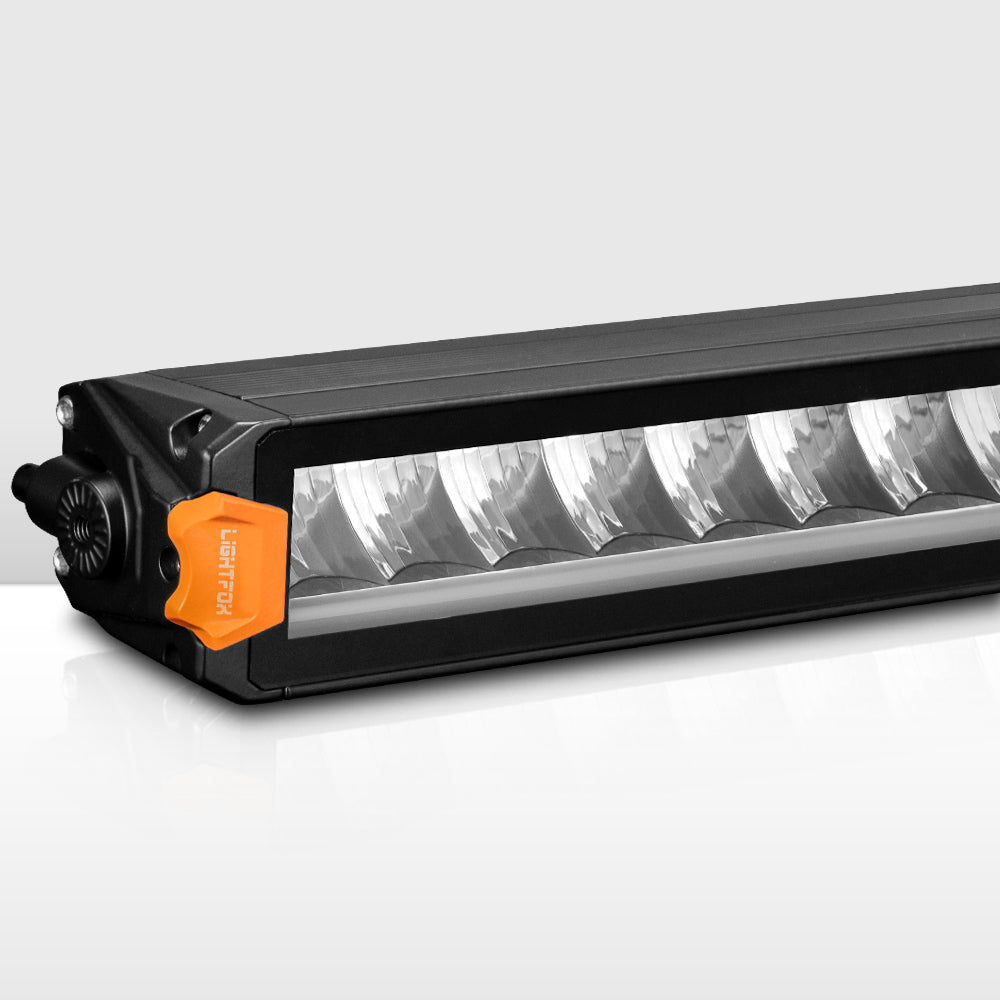

Lightfox Vertex Series 40inch LED Light Bar With DRL 1Lux@473m IP68 17,215 LM
Product Highlights
-
17,215 lumens, 1 lux reach out to 473m in full darkness
-
Built-in DRL keeps the vehicle visible from sunrise to sunset
-
Osram LEDs and Vision Drive Tech for shaped, consistent brightness
-
IP68 rated, UV resin sealed against water, dust, and impact
-
3-pin DT connector, plugs straight in for clean installation
-
AkzoNobel coating and strengthened PC lens for long-term durability
17,215 lumens, 1 lux reach out to 473m in full darkness
Built-in DRL keeps the vehicle visible from sunrise to sunset
Osram LEDs and Vision Drive Tech for shaped, consistent brightness
IP68 rated, UV resin sealed against water, dust, and impact

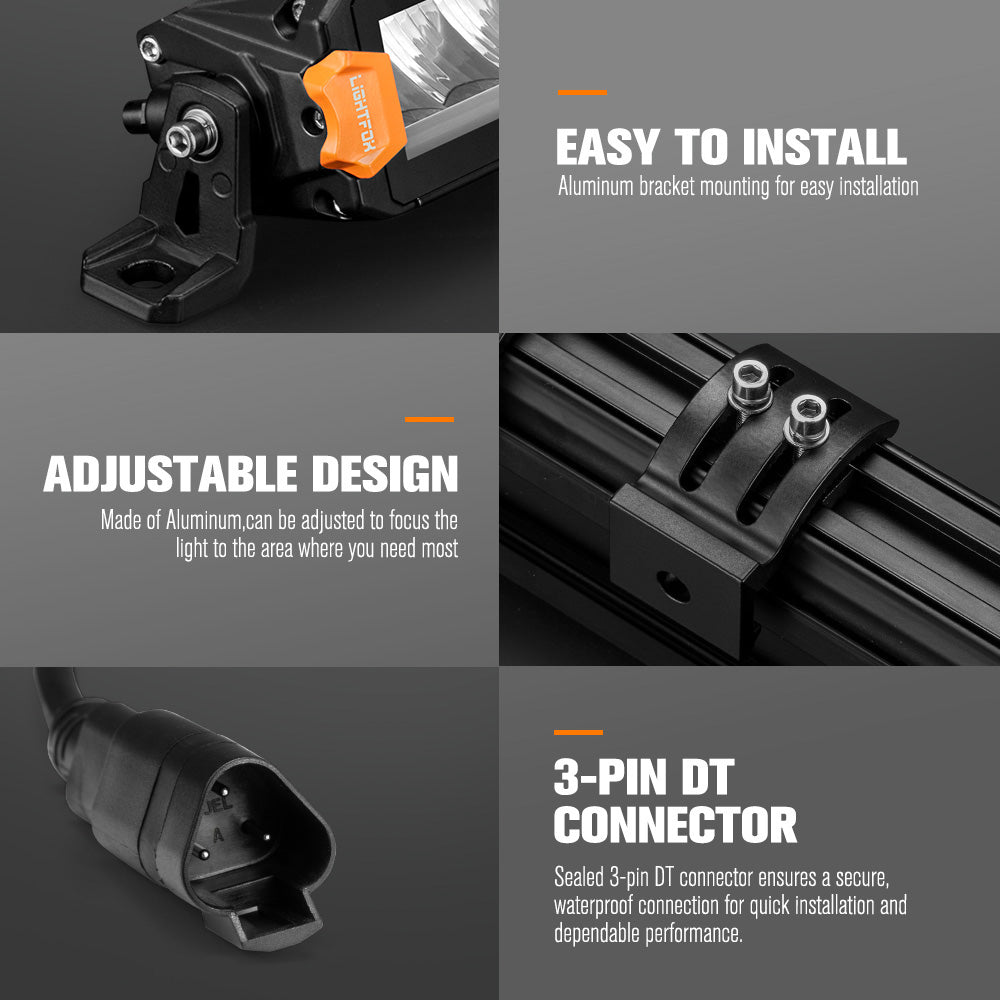

3-pin DT connector, plugs straight in for clean installation
AkzoNobel coating and strengthened PC lens for long-term durability
Own it today from $37.49 per fortnight
5 Years Warranty
Your purchase is backed by our warranty and protected under Australian Consumer Law. If a product experiences a major fault, you’re entitled to a repair, replacement, or refund.
Our warranty covers manufacturing defects but does not apply to normal wear and tear, misuse, accidents, or unauthorised modifications.
Warranty claims can be submitted through our website and may require photo verification.
Shipping & Delivery
Free delivery is available to most metropolitan areas across Australia. If your location falls outside the free shipping zone, any delivery costs will be shown after you enter your postcode at checkout.
Orders are dispatched within 1 business day after payment confirmation. Delivery typically takes 2 - 12 business days depending on your location, and tracking details will be provided once your order ships.
Orders are delivered via Australia Post or courier depending on the size and weight of the product.
Large items require a physical address (PO Boxes not supported). Some remote areas may require collection from a nearby freight depot, and any additional delivery fees will be calculated at checkout.
30 Day Returns
If you change your mind, you can return your item within 30 days for a store credit. Please contact us first so we can provide return instructions.
Items must be unused, in original packaging, and in resalable condition. Return shipping costs apply. This policy does not affect your rights under Australian Consumer Law if an item is faulty or incorrect.
Product Description
Features
- Vision Drive Tech: Our cutting-edge technology incorporates advanced curved and metallized reflectors to efficiently capture more light and deliver seamless, clean beams.

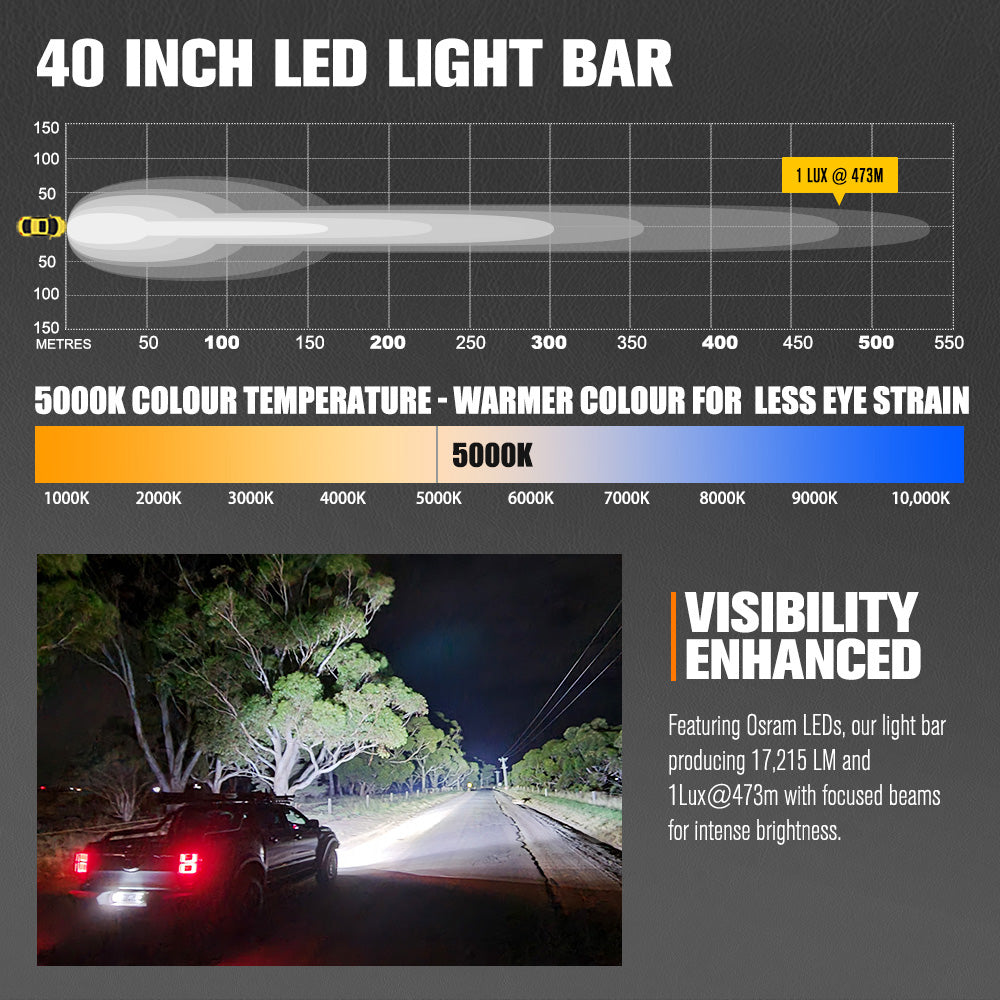

- Visibility Enhanced: Featuring Osram LEDs, our light bar producing 17,215 LM and 1Lux@473m with focused beams for intense brightness.
- Dual-Color DRL: Our 40-inch light bar features integrated white and amber DRL options, enhancing your 4x4’s visibility to other drivers while adding a stylish touch to your rig.
- Warmer Illumination: With a color temperature of 5,000 K CCT, our 40’’ light bar provides a reassuring light that illuminates your path with a gentle embrace.
- Comprehensive Protection: Featuring IP68 protection and a screwless design with UV resin, our off-road light bar is fully shielded against dust and rigorous washdowns.
- Robust & Enduring: AkzoNobel powder coating provides UV & corrosion resistance for aluminum housing, while anti-scratch PC lens and sturdy brackets enhance durability.
- Robust & Enduring: AkzoNobel powder coating provides UV & corrosion resistance for aluminum housing, while anti-scratch PC lens and sturdy brackets enhance durability.

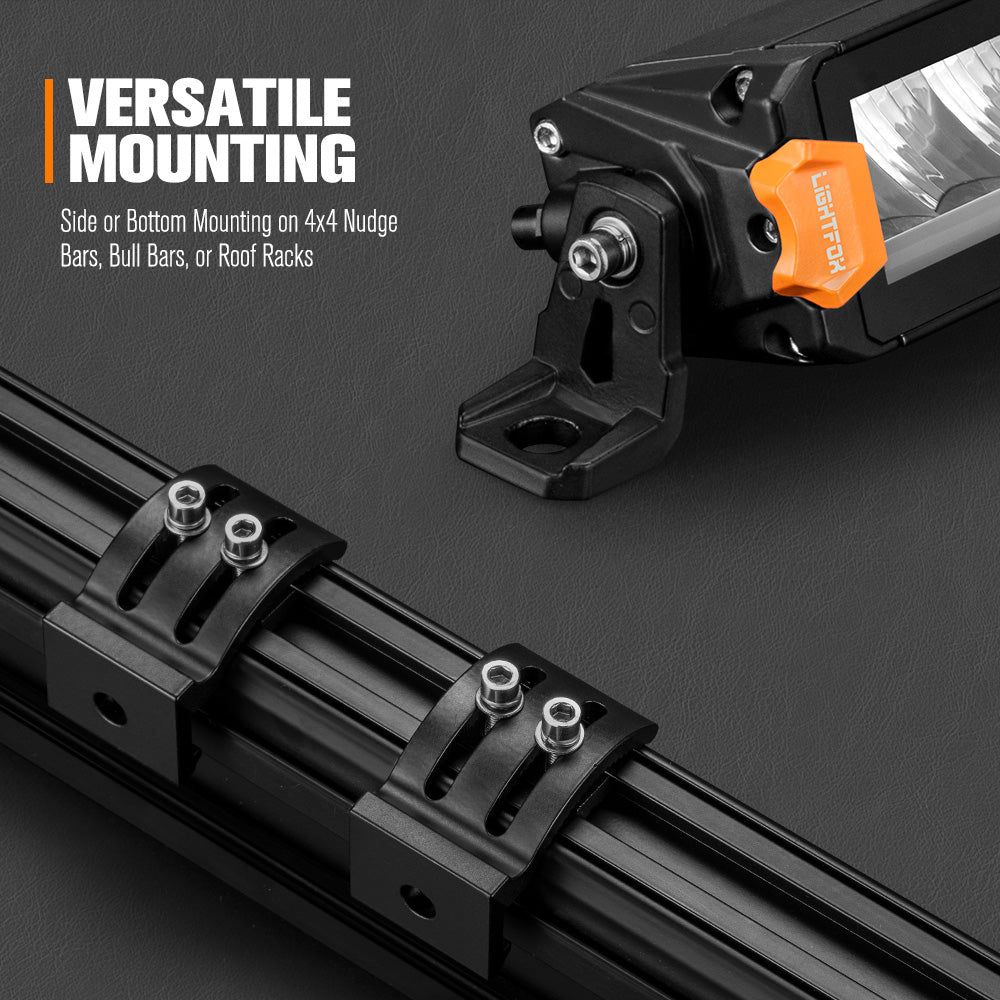

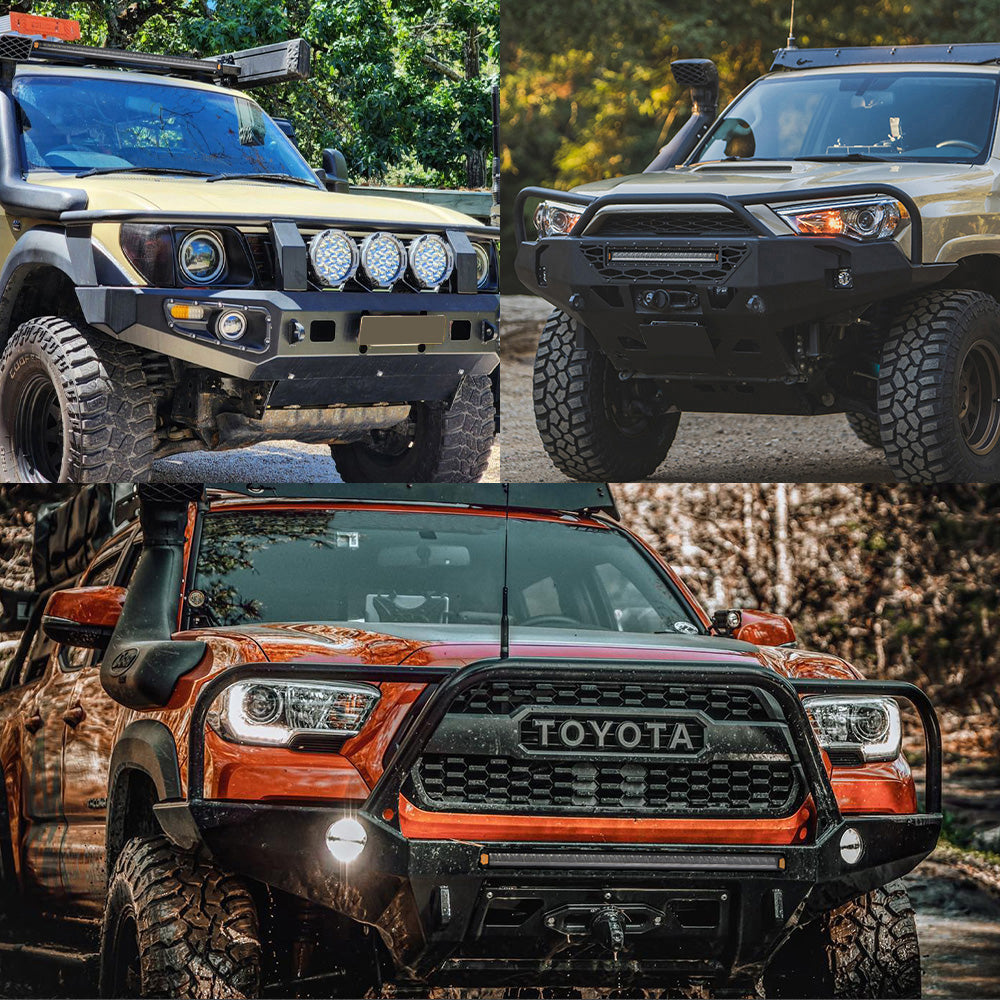

- Dual Mounting Options: Side or bottom mounting available, our LED light bar ensures effortless and flexible installation on 4x4 nudge bars, bull bars, or roof racks.
- Enhanced Reliability: Our 40-inch LED light bar offers protection against reverse polarity, while the breather eliminates condensation for reliable performance.
- Efficient Cooling: Integrated heat sinks in our LED light bar ensure optimal heat transfer, extending the lifespan of up to 50,000 hours.
Specifications
| Housing & Heat Sinks: | Aluminum |
| Lens: | Strengthened PC |
| Coating: | AkzoNobel Powder |
| Sealing Material: | UV Resin |
| Side Bracket: | Aluminum |
| Bottom Bracket: | Aluminum |
| Bulb Type: | Osram LEDs |
| Wattage: | 163 W |
| Lumens: | 17,215 LM |
| Lux Rating: | 1Lux@473m |
| Color Temperature: | 5,000K |
| Spot Beam: | 25° |
| Waterproof: | IP68 Rating |
| Operating Temperature: | -25°C ~ 40°C |
| Connector: | 3-pin DT |
| Expected Lifespan: | 50,000 Hours |

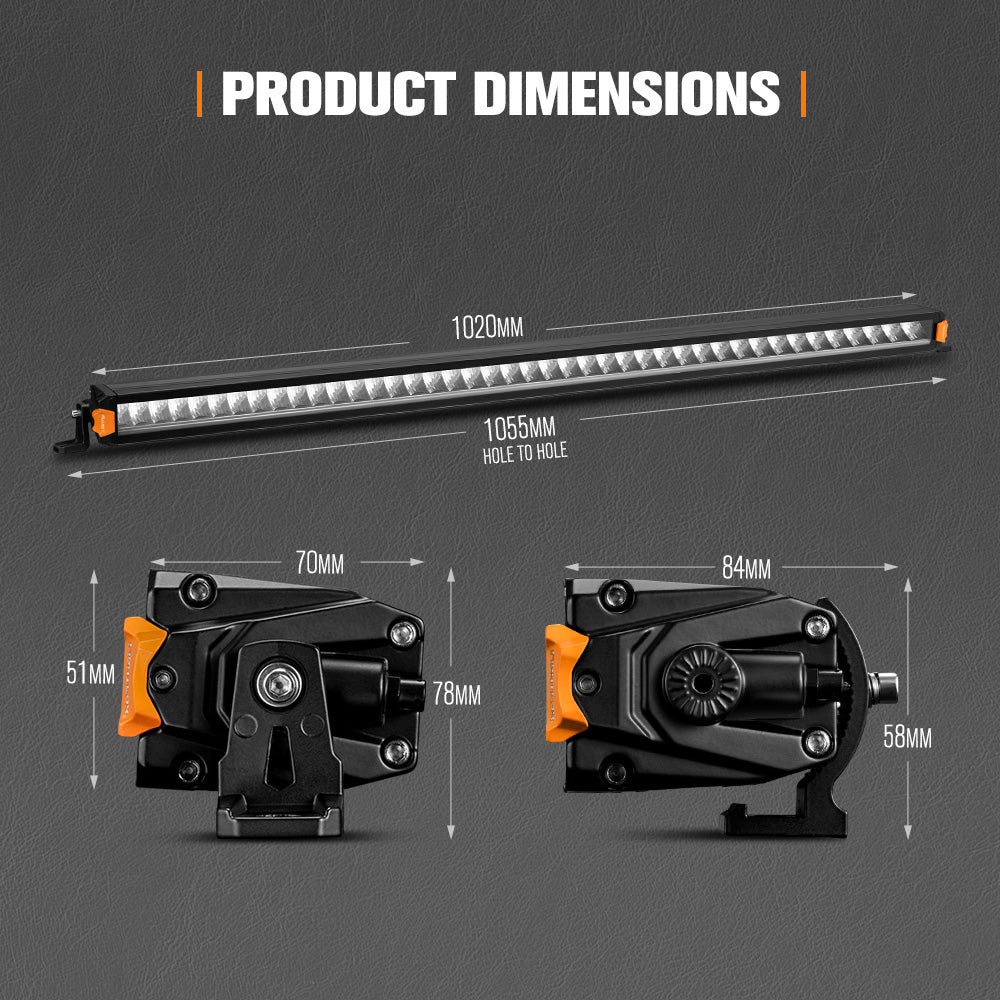

| Package Size: | 108.6 x 10.5 x 8 cm(LxWxH) |
| Package Weight: | 4.3kg |

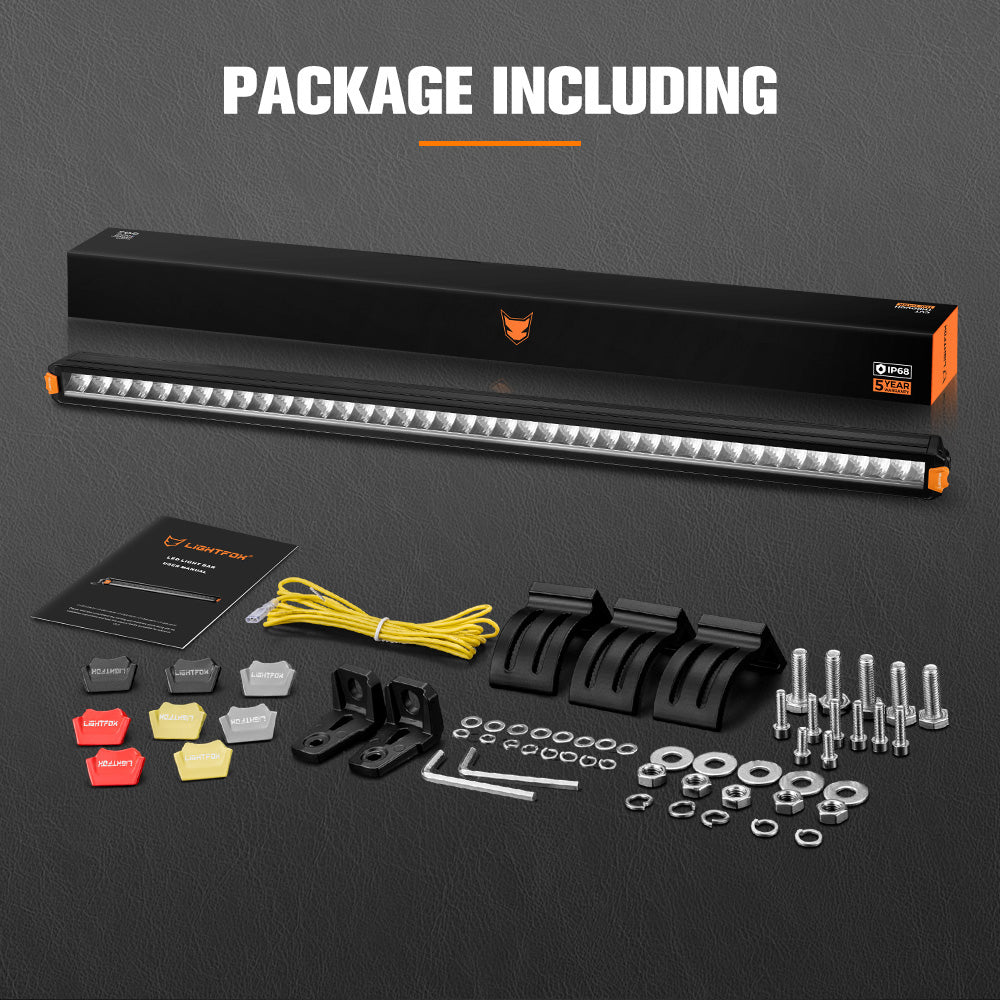

Package Includes
- 1 x Lightfox Vertex Series 40" LED Light Bar
- 1 x Side Brackets
- 1 x Bottom Brackets
- 1 x Mounting Hardware
- 1 x Yellow DRL Wire
- 4 Pairs Color Caps
- 1 x User Manual
GTIN
9356307010947
