Lightfox Vertex Series 50inch LED Light Bar With DRL 1Lux@509m IP68 21,980 LM

Lightfox Vertex Series 50" LED Light Bar is the perfect solution for outdoor enthusiasts seeking improved visibility on dark road ahead. Equipped with Vision Drive Tech and daytime running light (DRL), our light bar ensures exceptional brightness and wide coverage, making it an ideal companion for any outdoor adventure. Enhanced with Osram LEDs, our LED light bar boasts focused beam-shaping, delivering a powerful 21,980 LM output and a remarkable 1Lux@509m distance for complete visibility. Its reinforced PC lens resists against scratches, while the AkzoNobel powder coating defies extreme UV exposure and corrosion. With a color temperature of 5,000 K, our 50-inch light bar provides gentler illumination to reduce eye fatigue. Easily mountable with two mounting options - side or bottom - on 4x4 nudge bars, bull bars, or roof racks, our LED light bar is complemented by a range of color caps, allowing you to stand out as the most stylish on the road.
Features

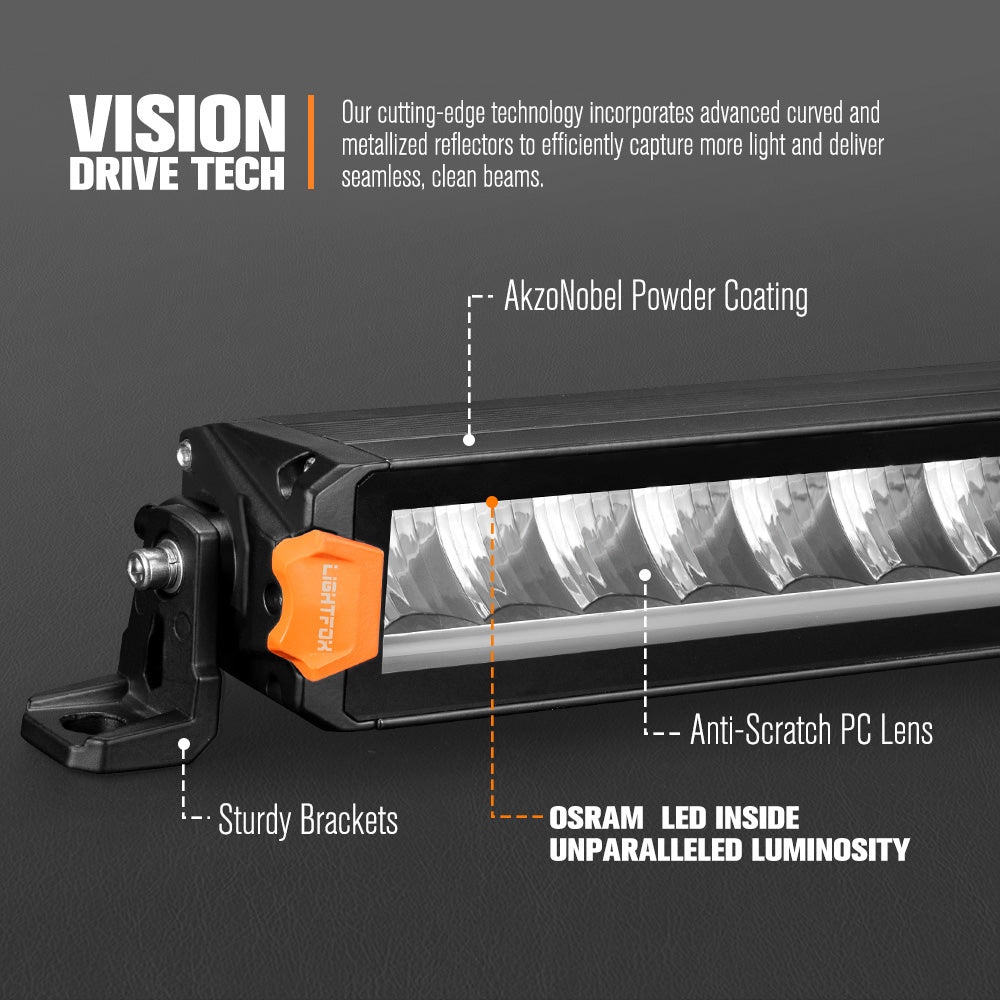

• Vision Drive Tech: Our cutting-edge technology incorporates advanced curved and metallized reflectors to efficiently capture more light and deliver seamless, clean beams.

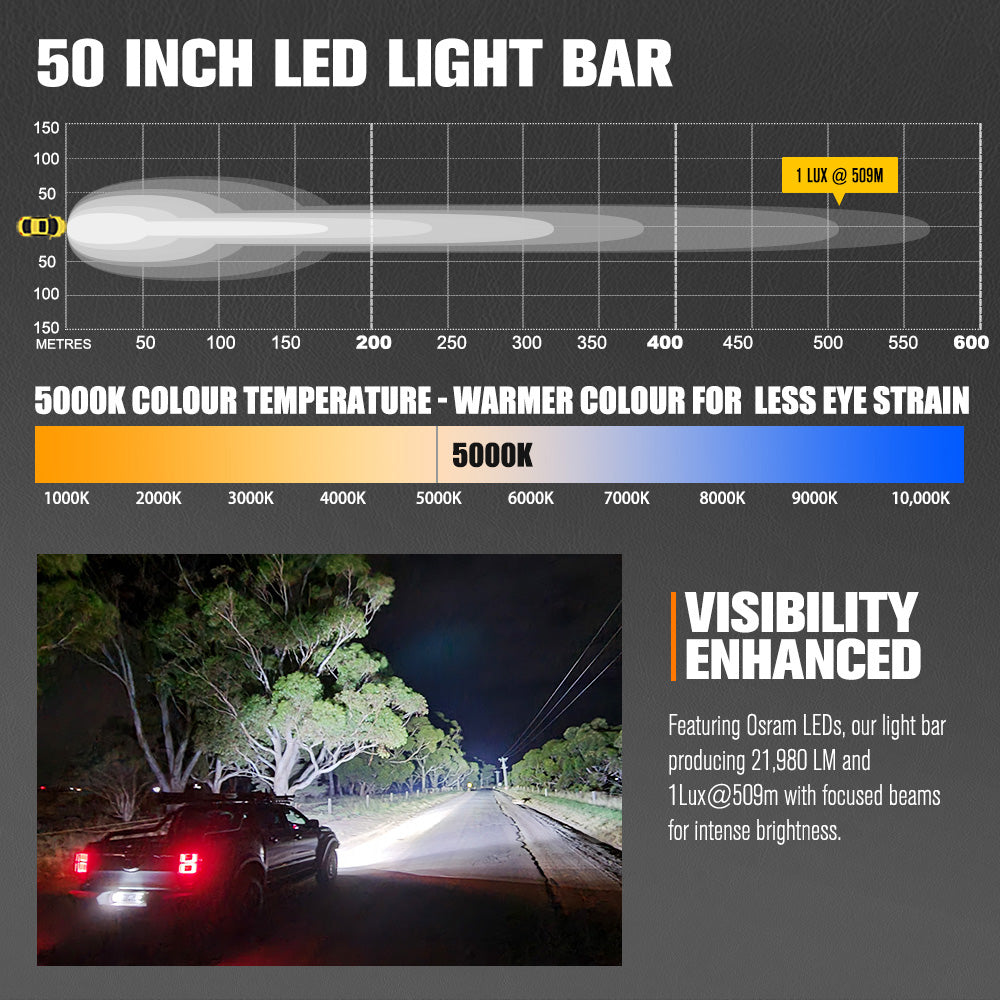

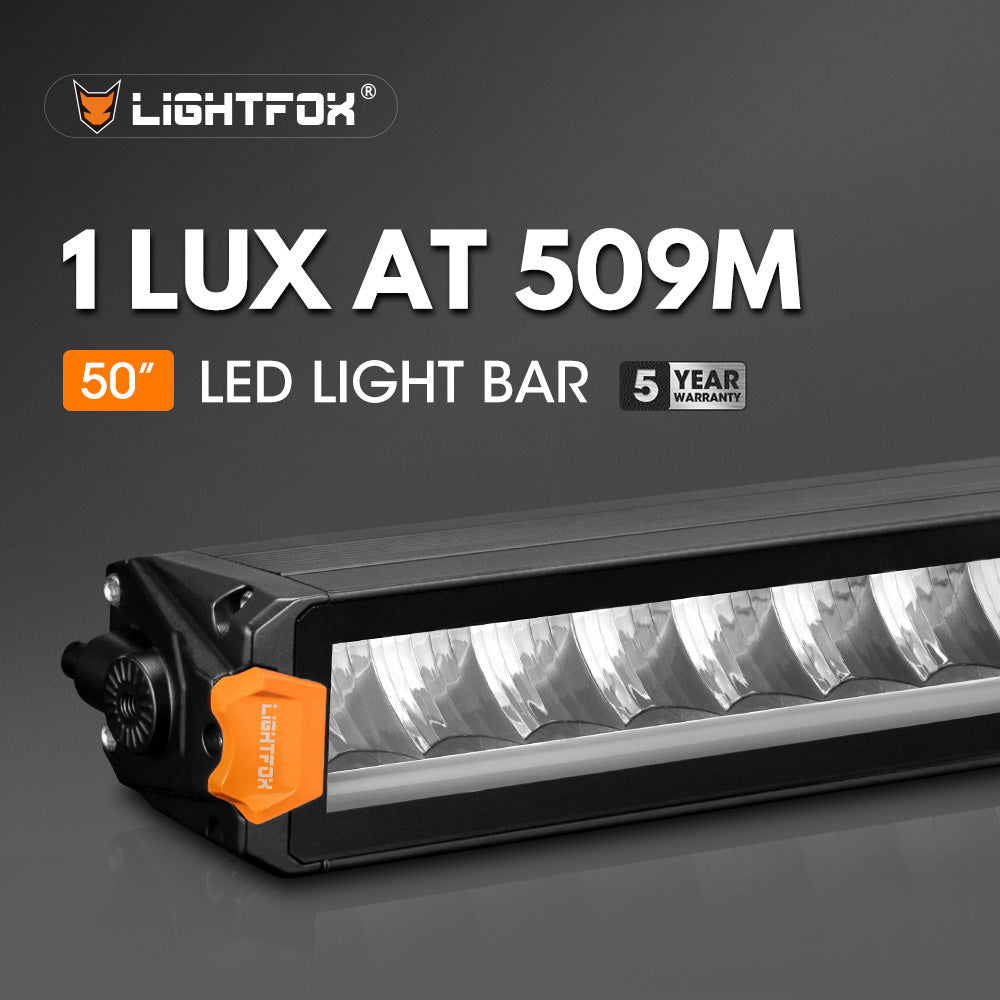

• Visibility Enhanced: Featuring Osram LEDs, our light bar producing 21,980 LM and 1Lux@509m with focused beams for intense brightness.

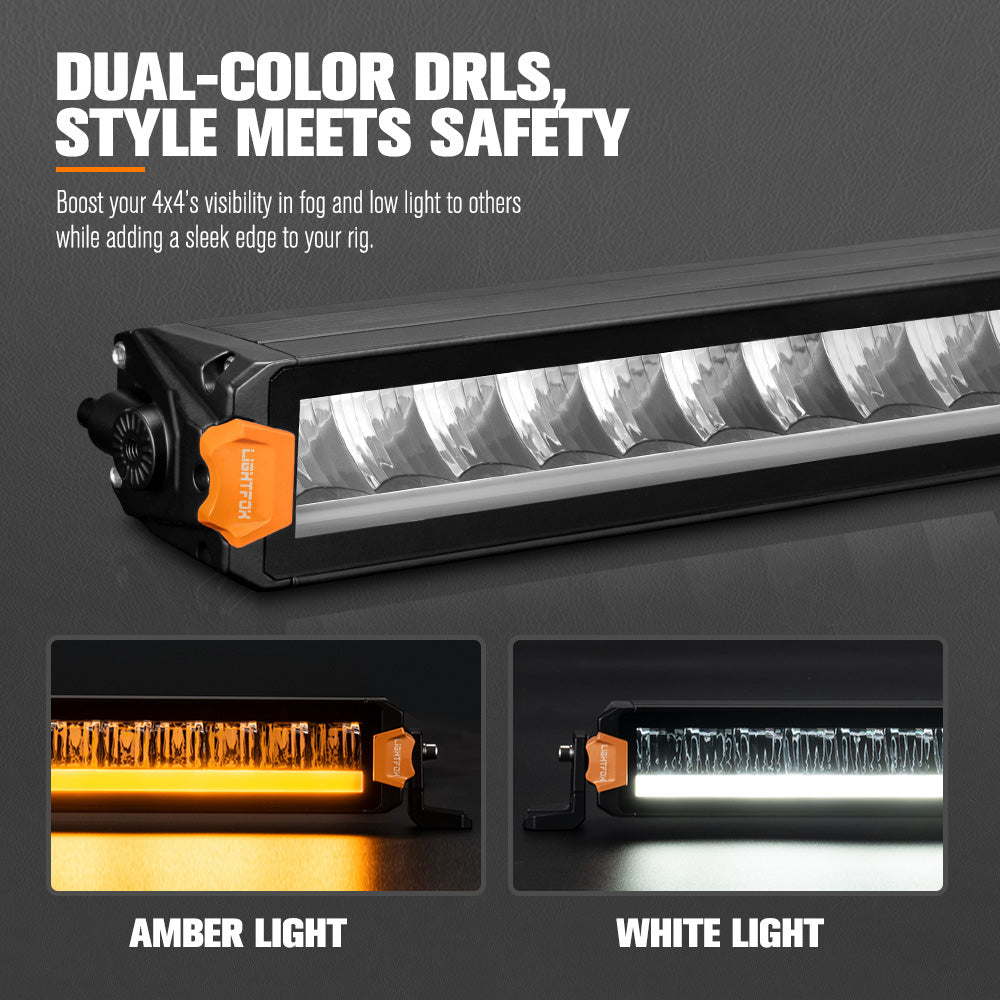

• Dual-Color DRL: Our 50-inch light bar features integrated white and amber DRL options, enhancing your 4x4’s visibility to other drivers while adding a stylish touch to your rig.
• Warmer Illumination: With a color temperature of 5,000 K CCT, our 50’’ light bar provides a reassuring light that illuminates your path with a gentle embrace.
• Comprehensive Protection: Featuring IP68 protection and a screwless design with UV resin, our off-road light bar is fully shielded against dust and rigorous washdowns.
• Robust & Enduring: AkzoNobel powder coating provides UV & corrosion resistance for aluminum housing, while anti-scratch PC lens and sturdy brackets enhance durability.
• Vibrant Color Caps: The vibrant array of color cap options, including yellow, orange, grey, black, and red adds the visual appeal that makes you the spotlight on the road.

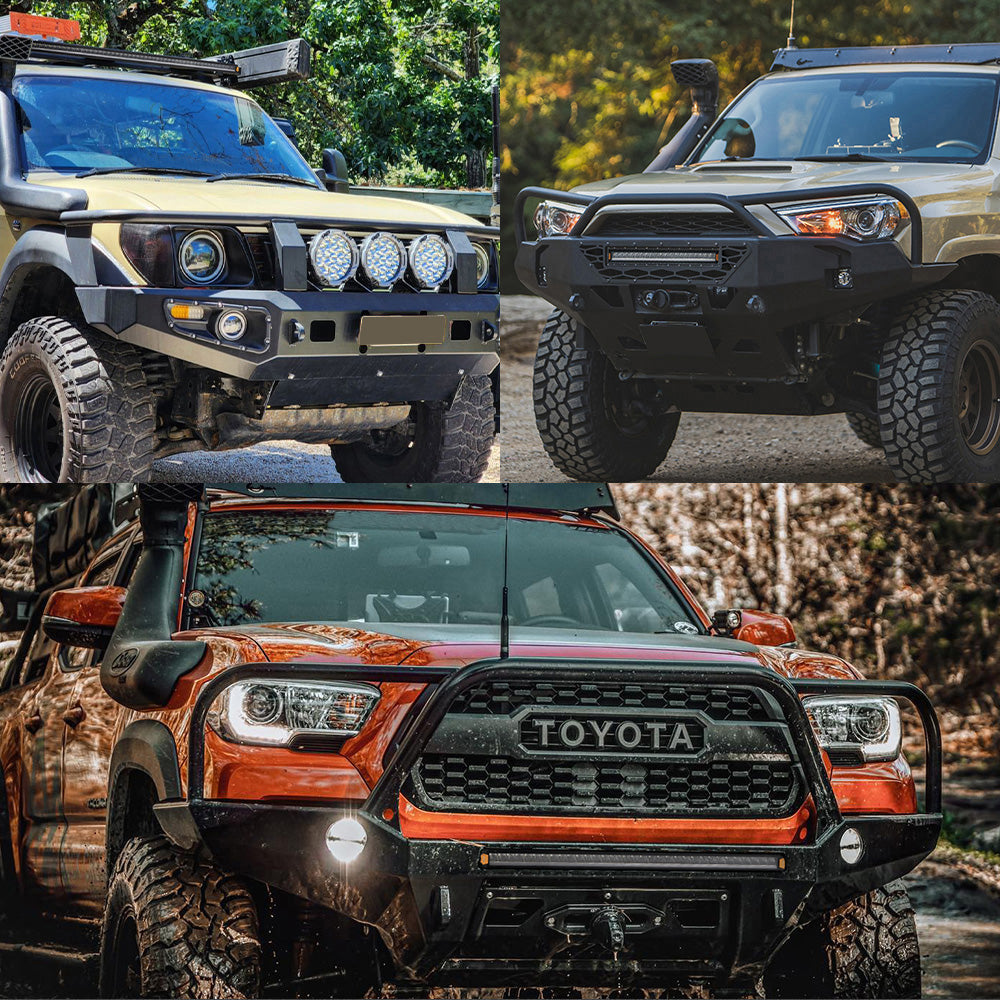

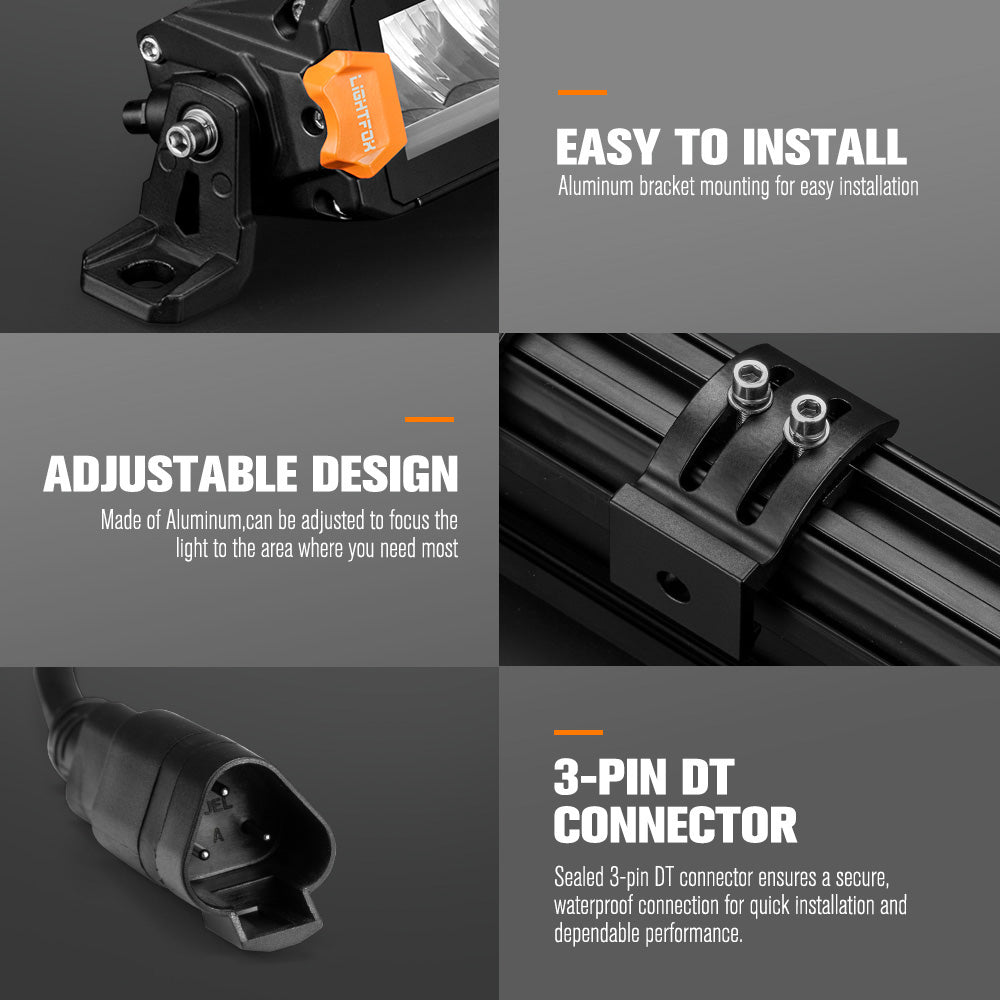

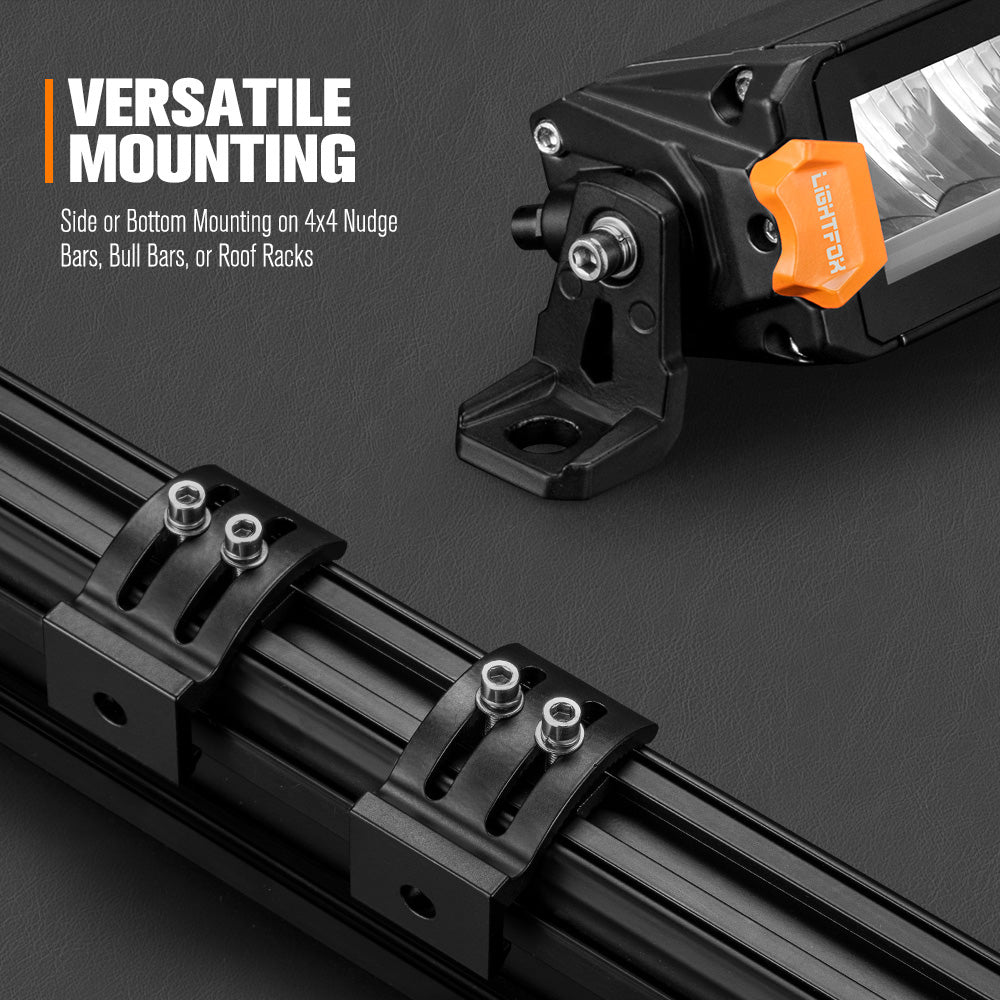

• Dual Mounting Options: Side or bottom mounting available, our LED light bar ensures effortless and flexible installation on 4x4 nudge bars, bull bars, or roof racks.
• Enhanced Reliability: Our 50-inch LED light bar offers protection against reverse polarity, while the breather eliminates condensation for reliable performance.
• Efficient Cooling: Integrated heat sinks in our LED light bar ensure optimal heat transfer, extending the lifespan of up to 50,000 hours.

LED driving lights and LED light bars are popular aftermarket lighting options that can greatly enhance a vehicle's visibility and illumination. However, like any vehicle component, they can experience issues from time to time. In this troubleshooting guide, we'll cover some common problems that can occur with LED driving lights and LED light bars, as well as tips for diagnosing and fixing these issues.

Q: My LED light/LED driving light does not work at all.

A: If your LED light or LED driving light is not working at all, first double check that all connections are correct and properly plugged in. If the problem persists, it is likely that there is an issue with the power supply itself. To troubleshoot, follow these steps:
Connect the light directly to a 12VDC power source, such as the vehicle's battery, to confirm that it is not defective. Make sure to disconnect the light before connecting it to the power source. If the light works normally, the issue is with the wiring, so proceed to the next step.
Check that the switch is turned on and verify that the light is receiving power (the light will illuminate).
Ensure there are no loose wires in the wiring harness.
Inspect the earth/ground to ensure it is secure. If the light fails to illuminate when connected directly to the power source, the issue is with the light itself.

Q: What to do with partially working LED lights?

A: If your LED lights are partially working, it's likely due to low voltage. You may notice a dimming effect or an alternating LED pattern if the voltage is below what the light requires. To address this issue, first charge or replace the battery. Additionally, ensure that all wiring connections are correct to eliminate any weak points.

Q: LED Light Bars are flickering.

A: If your lights are flickering, start by testing the input voltage using a multi-meter. Anything more than 1–2 volts lower than the stated operating voltage could result in flickering. Next, swap the light with a functioning one of the same type. If the flickering problem follows the light, the issue is likely with the light itself. If the problem persists, the issue is likely somewhere else in the circuit.

Q: There is condensation in the lights.

A: If there is condensation in your lights, it's important to differentiate between water ingress and condensation. Condensation is a common occurrence in all LED lights and is not considered a defect, nor does it impact the light's functionality or lifespan. However, in some cases, water may enter the light, pool inside and cause damage. To determine if action is required, follow these steps:
Step 1: Check if the light is functioning properly other than the presence of moisture inside the lens. If not, proceed with the warranty. If the lamp is functioning properly, proceed to Step 2.
Step 2: Check if there is water sloshing around inside the light, as opposed to the mere presence of fog on the lens. If so, proceed with a warranty. Otherwise, proceed to Step 3.
Step 3: Run the light continuously for at least an hour, then check for moisture. If there is a substantial reduction in moisture, you should be able to continue using the LED light. If not, proceed with the warranty.

Q: Can light bar function be wired to a different switch?

A: Although it is technically feasible to connect the light bar function to a different switch, it is not advisable to do so, as it would void the warranty.

Q: Lights are causing interference with radio or other electronics

A: If your LED driving lights or light bars are interfering with your radio or other electronics, several factors could be at play. To resolve the issue, consider the following:
Check the grounding of the lights to ensure that they are adequately grounded and not causing interference.
Verify that the lights were installed correctly, and all components are connected accurately to rule out any installation errors.

Q: Does the fog light come with a wiring harness, and is there a wiring diagram available?

A: Please refer to the "Package Included" section and the wiring diagram provided in the product link to see if the wiring is included.

Q: What type of wiring harness is suitable for this fog light?

A: Please ensure that the light is equipped with a DT connector. For a single light, you will require a 1-way wiring harness, and for multiple lights, you will need a 2-way wiring harness.

To sum up, while LED driving lights and light bars can significantly enhance your vehicle's visibility and illumination, they may face occasional issues. By following the troubleshooting tips discussed above, you can identify and address many common problems that may arise with these lights. If you are unable to troubleshoot and resolve a particular issue, it is advisable to seek assistance from our support team to ensure that the problem is accurately diagnosed and repaired.
