Product Description
Features

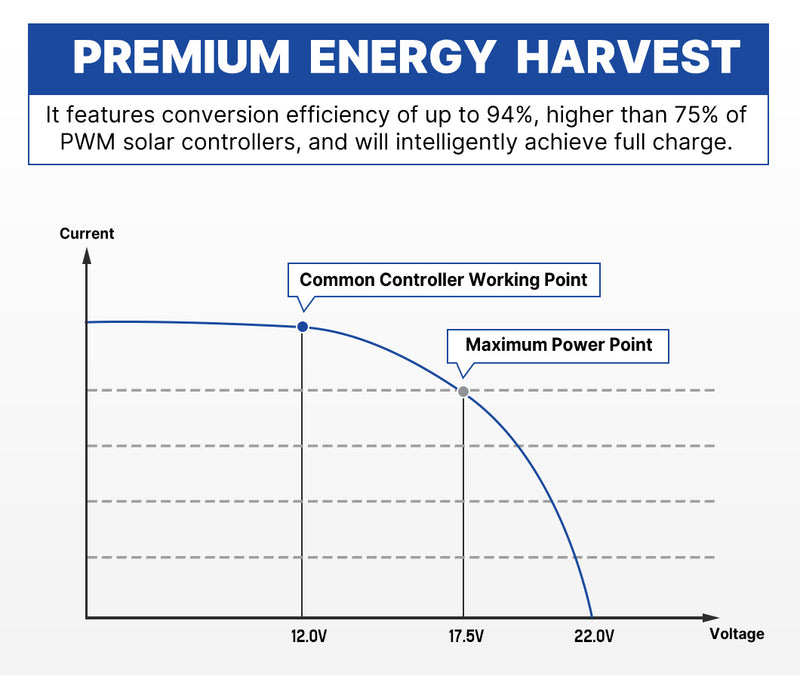

- Premium Energy Harvest: It features conversion efficiency of up to 94%, higher than 75% of PWM solar controllers, and will intelligently achieve full charge.

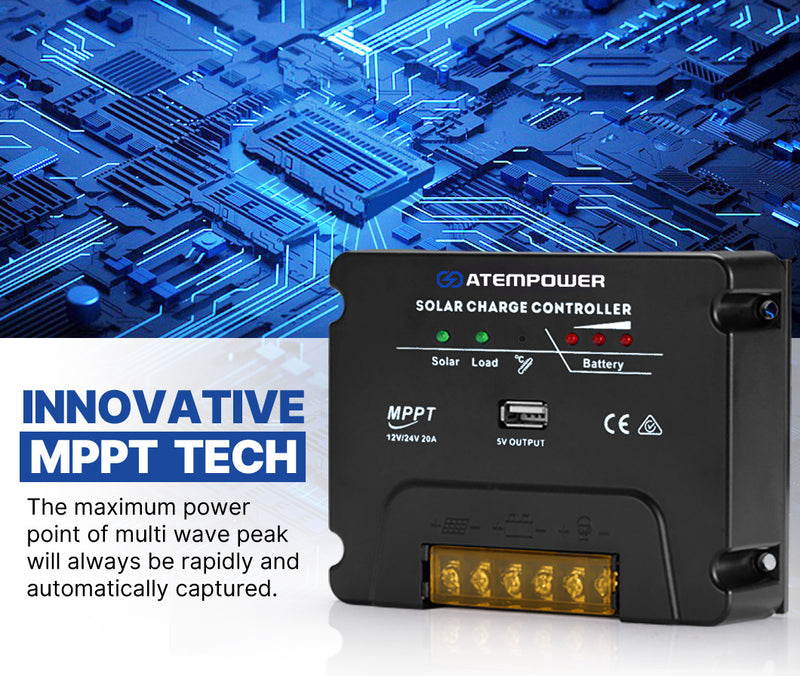

- Innovative MPPT Tech: The maximum power point of multi wave peak will always be rapidly and automatically captured.

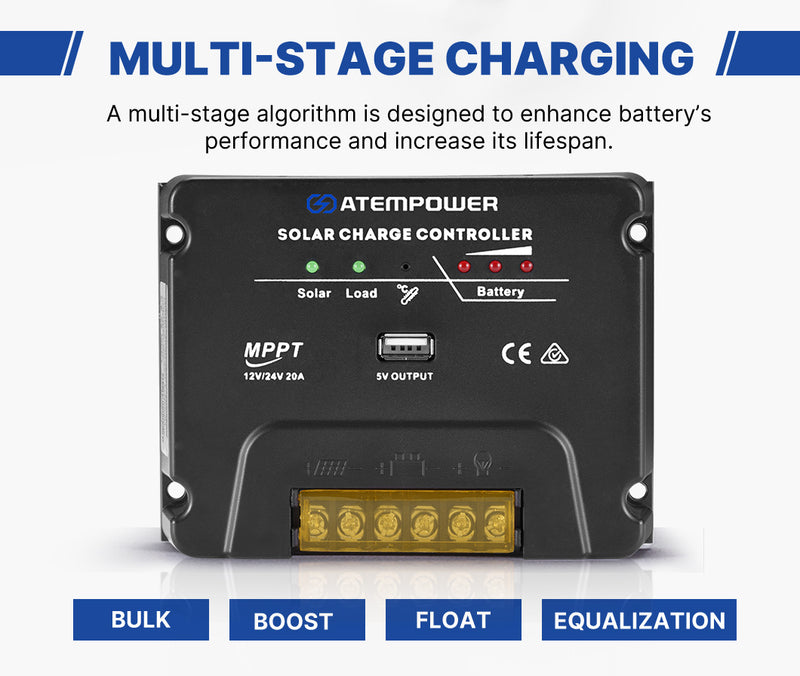

- Multi-Stage Charging: A multi-stage algorithm is designed to enhance battery’s performance and increase its lifespan.
- Upgraded Protection: PV/battery reverse polarity, over-charge/discharge, over load/temperature, backfeeding (night) and short circuit protection are embedded.

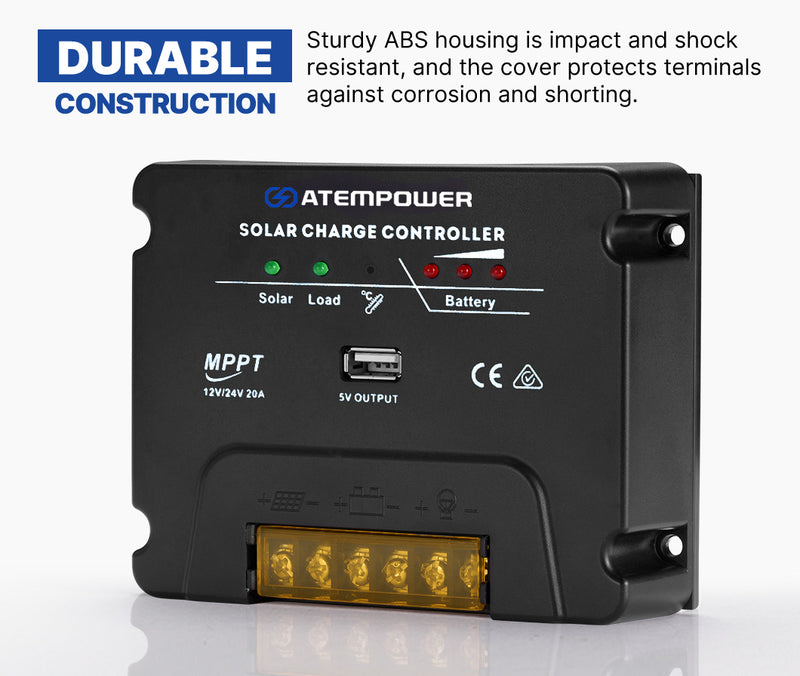

- Durable Construction: Sturdy ABS housing is impact and shock resistant, and the cover protects terminals against corrosion and shorting.

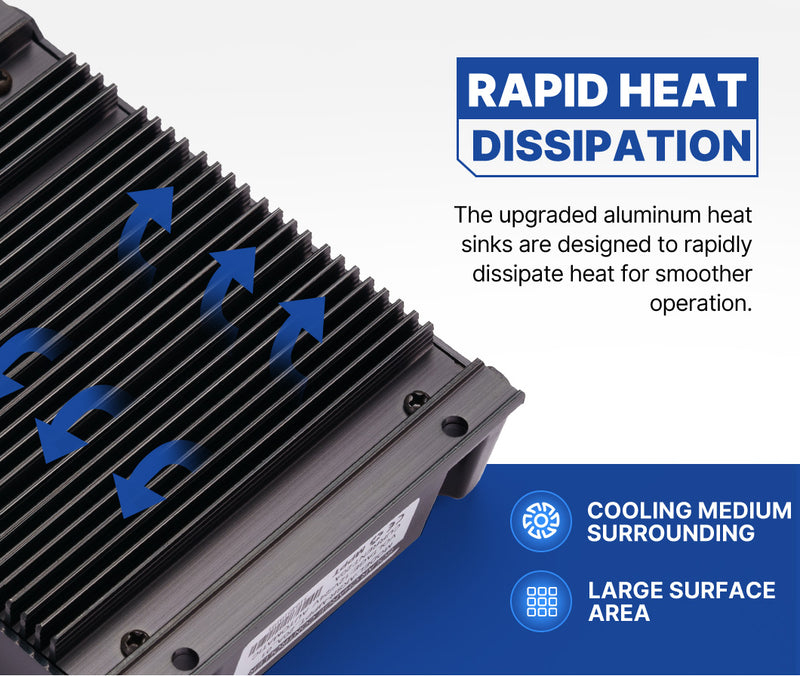

- Rapid Heat Dissipation: With MOSFET to allow larger currents, the upgraded aluminum heat sinks are designed to rapidly dissipate heat for smoother operation.
- Highly Compatible: This solar MPPT controller fits a variety of lead acid deep cycle batteries, including flooded, AGM and GEL, and LiFePO4 batteries.

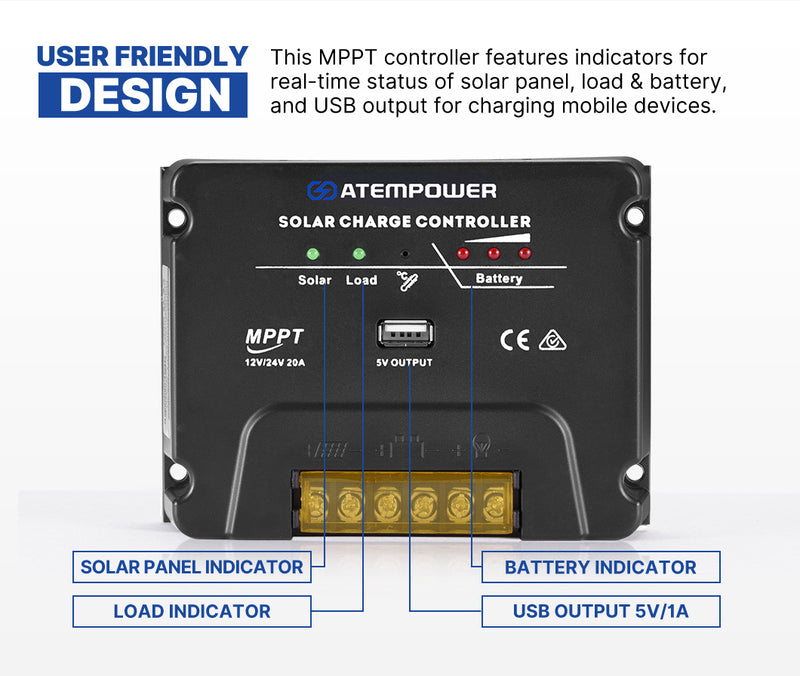

- User Friendly Design: This MPPT controller features indicators for real-time status of solar panel, load & battery, and USB output for charging mobile devices.
Specifications
| Model: | CY1220-MT |
| Rated charge current: | 20A |
| Rated discharge current: | 20A |
| Rated Voltage: | 12V/24V auto work |
| MPPT efficiency: | Max:99% |
| Over load, short circuit protection: | ≥1.5 rated current |
| No load current: | <10mA |
| Over voltage protection: | 16V;x2/24v |
| Charging voltage cut-off: | 14.7V;x2/24v |
| Discharge recovery voltage: | 11.5V;x2/24v |
| Overdischarge voltage cut-off: | 10.5V;x2/24v |
| USB output: | 5V 1A |
| Operating temperature: | -35℃~+55℃ |
| Dimension of controller: | 131x99.5x29.5(mm) (LxWxH) |
| Weight: | 300g |

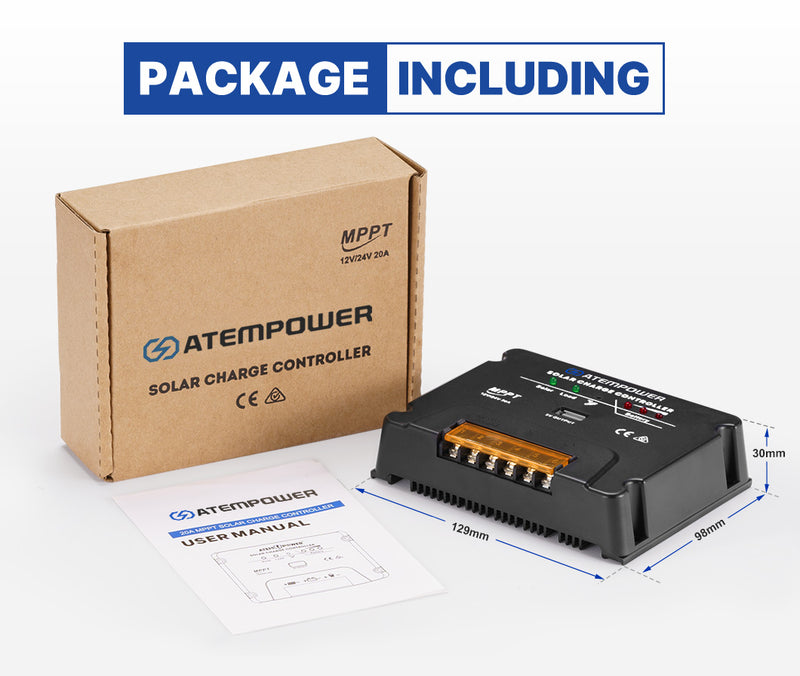

Package Includes
- 1 x ATEM POWER MPPT Controller
- 1 x User Manual
GTIN
9356307007268
