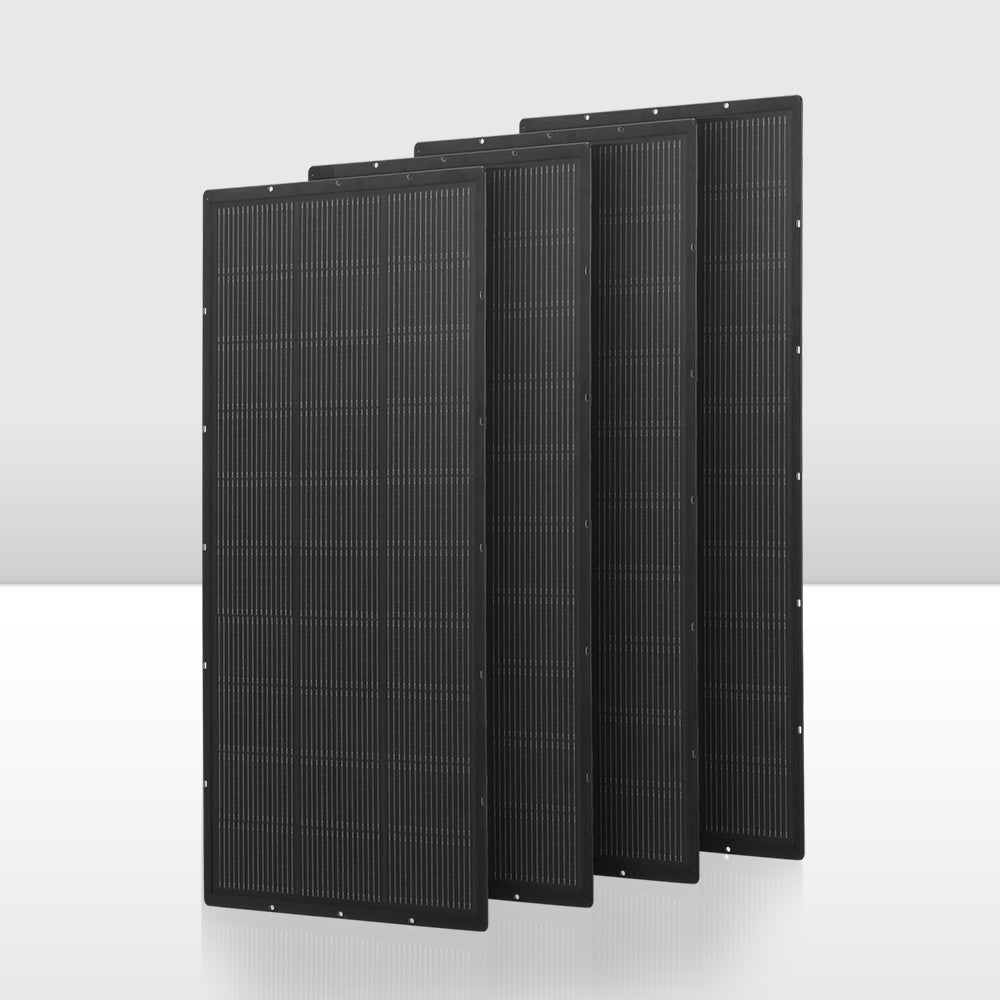

San Hima 4X 110W PERC Solar Panel Kit Mono Multi-busbar Bypass Diode Tech 5MM

San Hima 4X 110W PERC Solar Panel Kit Mono Multi-busbar Bypass Diode Tech 5MM

Name: San Hima 4X 110W PERC Solar Panel Kit Mono Multi-busbar Bypass Diode Tech 5MM
Brand: San Hima
SKU: SH-VASP-110W-SLX4-VOR
Price: 356.96 AUD
Availability: InStock
Rating: 5.0 (10 reviews)

Product Highlights

Includes four panels for 440W combined output, ready to link in series or parallel
Reduces roof drag at 5mm thick, lower-profile than most panels
Gets more from every ray, PERC cells with multi-busbar tech hit 25% efficiency
Stays sealed in rain, dust and harsh weather with IP68 protection

56 Sold

$419.95

$356.96

-15%

Own it today from $89.24 per fortnight

In Stock! Ship in 1 business day

Free Fast Shipping AU Metro Areas

AU Metro Areas

3 Years Warranty

30 Day Returns

Will This Work With My Setup?

Fixed solar panels mount permanently to roof racks, canopy roofs, caravan roofs, trailers and flat surfaces. All panels use MC4 connectors and connect to your existing charge controller.

Mounting: Panels bolt to your roof rack or mounting surface using Z-brackets or flat mounts. PERC panels include a mounting kit. Other panels need mounting hardware sold separately. Check panel dimensions against your available roof space before ordering.

Wiring: MC4 connectors are standard across all panels. If your setup uses Anderson-style plugs, you'll need an MC4-to-Anderson adapter (not included).

Charge controller: Each panel needs a charge controller to protect your battery. If your existing MPPT or DC-DC charger is rated for the panel's wattage and amperage, connect directly. Otherwise, source a controller that matches the panel's max current.

Adding more panels: Run two or more panels in parallel using MC4 branch connectors for more output. Match wattage across panels for best results. Check your charge controller's voltage limit before wiring panels in series.

3 Years Warranty

This item is backed by a 3 Years Warranty

If a product develops a fault, you are entitled to a replacement or full refund.

What's covered: Defects in materials and workmanship under normal personal use.

What's not covered: Normal wear and tear, accidents, misuse, neglect, or lack of maintenance. Incorrect voltage, power surges, or voltage supply problems. Tampering, unauthorised repairs, or use of defective or incompatible accessories. Natural disasters or other external causes. Damage from operating the product outside the manufacturer's instructions.

How to claim: Submit a claim through the Vicoffroad website with proof of purchase. Customer service reviews each claim case by case and may request a photo. A return label is issued if the product needs to be returned for assessment.

This warranty covers the original purchaser only and is not transferable on resale. It is in addition to your rights under Australian Consumer Law.

Shipping & Delivery

Free Shipping: We offer free shipping for most metro postcodes across Australia. Regional and remote areas may carry an extra charge, you'll see your total once you enter your postcode at checkout.

Dispatch: We send your order within 1 business day.

Delivery: Most orders arrive in 2 to 12 business days, sent via Australia Post or courier depending on size and weight. We'll email you a tracking number once your order is on the way.

PO Box: We don't ship to PO Boxes. Please provide a physical street address at checkout.

Pickup: Local pickup is available from our Altona warehouse (Victoria). Pay online, and we'll email you when your order is ready to collect.

In-stock items are usually ready within 2 hours. Pre-sale items are ready within 3 business days of stock arriving.

30 Day Returns

30-Day Change of Mind: You can return your order within 30 days of purchase for store credit. Refunds aren't available for change of mind, including ordering the wrong item, gifts that don't suit, or products that didn't meet your expectations.

How to Return: Contact us first so we can give you return instructions. Items posted without confirmation may not be accepted.

Return Costs and Condition: Return freight is at your cost. Items must come back in resalable condition with original packaging and all accessories. Once we receive and check the item, we'll issue your store credit with the freight cost deducted.

Faulty or Damaged Items: Contact us if your item arrives faulty or damaged. We'll guide you through the next steps to resolve it.

This policy does not limit your rights under Australian Consumer Law.

San Hima 4X 110W PERC Solar Panel Kit Mono Multi-busbar Bypass Diode Tech 5MM

56 Sold

$419.95

$356.96

-15%

Product Description

SKU: SH-VASP-110W-SLX4-VOR Adventure is unpredictable, but your power supply doesn’t have to be. At just 5 mm thick, the San Hima ultra slim solar panel fits seamlessly onto your roof, barely adding any height at all. Its low-profile design is barely noticeable from the side, giving you the freedom to navigate low-clearance spots with ease. With Grade-A monocrystalline cells, this panel brings a solid 25% conversion efficiency, meaning you’ll get more juice from every bit of sunlight. Plus, PERC technology reflects stray light back into the panel, ensuring maximum energy capture. Multi-Busbar technology means your panel keeps working—even if one cell gets damaged. And thanks to the bypass diodes, you don’t have to worry about partial shading slowing you down either. Looking to build a bigger system? You can link up to 8 panels in series or 4 in parallel. The tempered glass is built to withstand impacts, while the lightweight aluminum frame keeps it sturdy without weighing you down.
Features

Incredibly Lightweight: Weighing just 4.3 kg, our San Hima 110W ultra slim fixed solar panel won’t weigh your vehicle down or cut into fuel efficiency.
Ultra-Slim Build: At just 5 mm thick, it sits low on your 4WD, reducing wind resistance and keeping overall height down so you can squeeze into those tight spots.

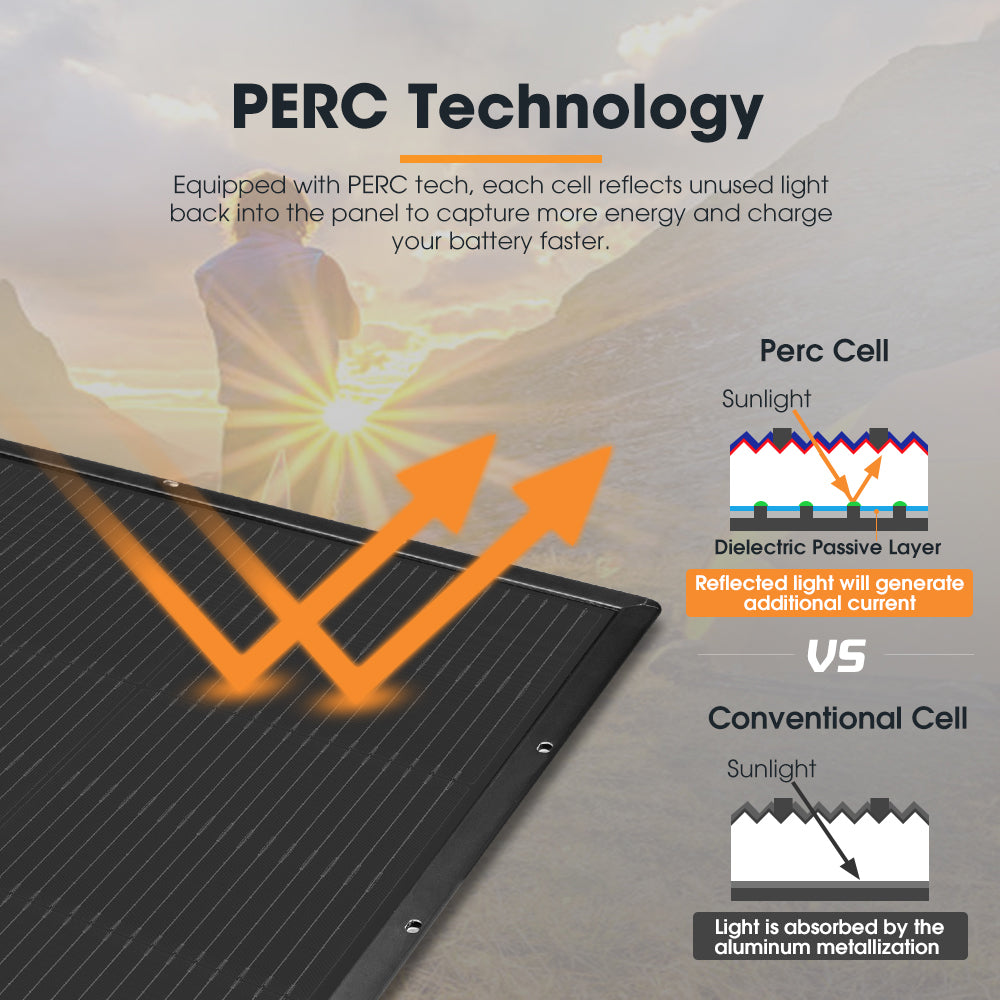

PERC Technology: Equipped with PERC tech, each cell reflects unused light back into the panel to capture more energy and charge your battery faster.
Grade-A Monocrystalline Cells: This cell delivers 25% conversion efficiency, outperforming standard solar panels of the same size for more power per centimeter.

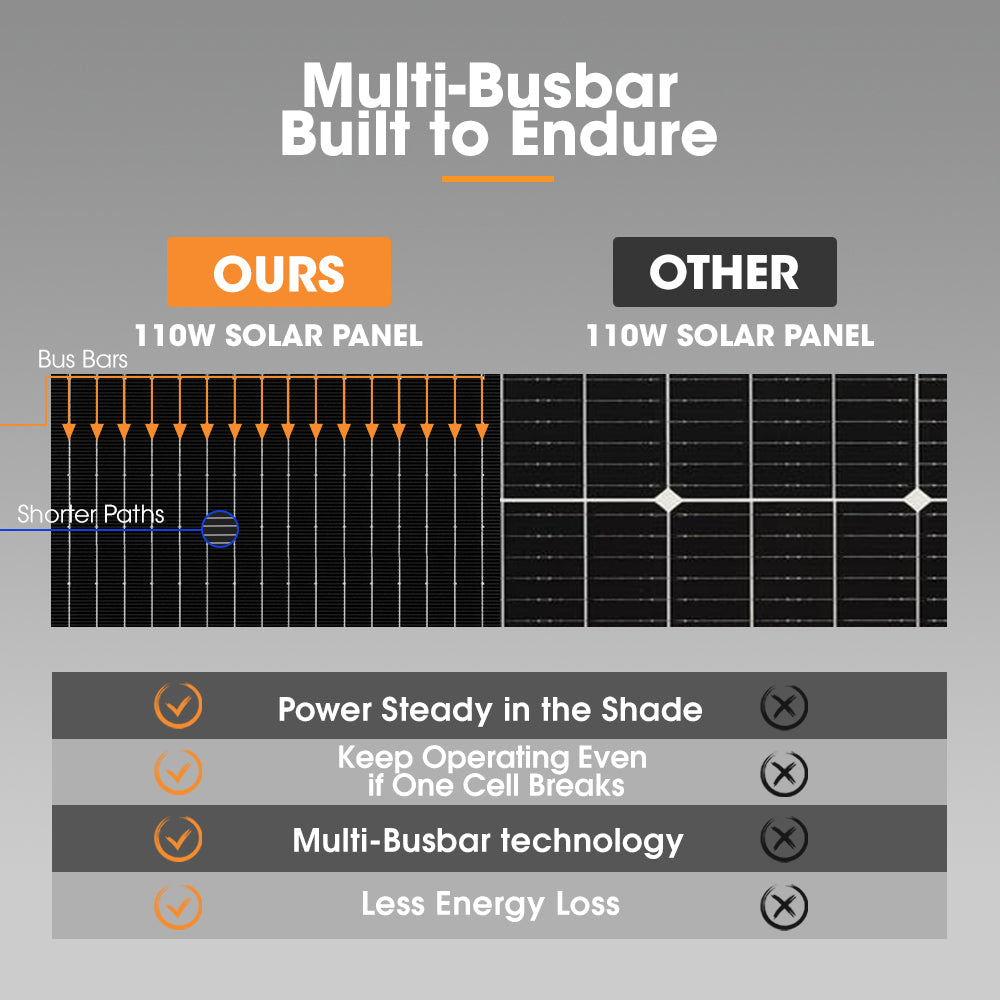

Multi-Busbar Technology: Shorter electrical paths mean less power loss and higher output. Even if one cell breaks, energy can still be captured by other busbars.
Series or Parallel Ready: Connect up to 8 panels in series or 4 in parallel for more output—rated up to 1,000V DC, perfect for powering larger setups.

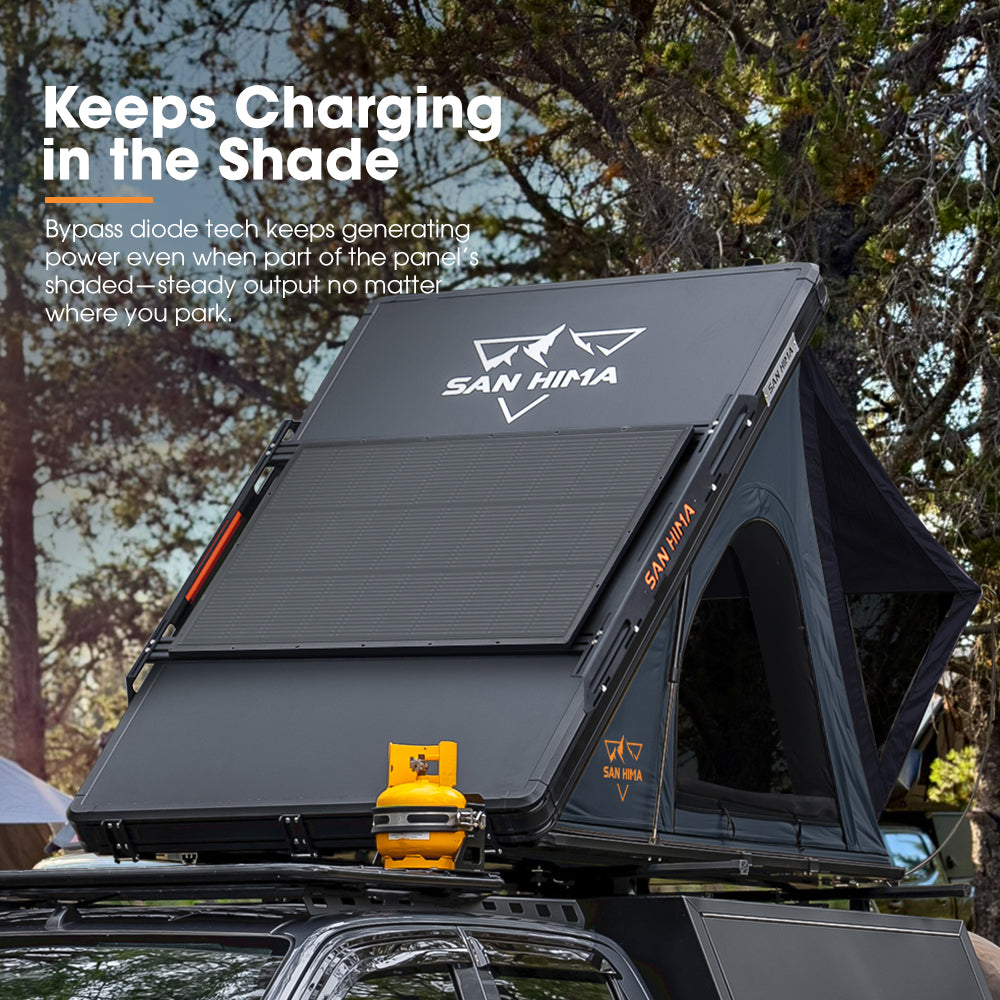

Bypass Diode Technology: Keeps generating power even in partial shade—ideal for rooftop installs where sunlight shifts through the day.
Built Tough: From impact-resistant tempered glass to a slim but sturdy aluminum frame and IP68 protection, this panel is ready for whatever the outdoors throws at it.

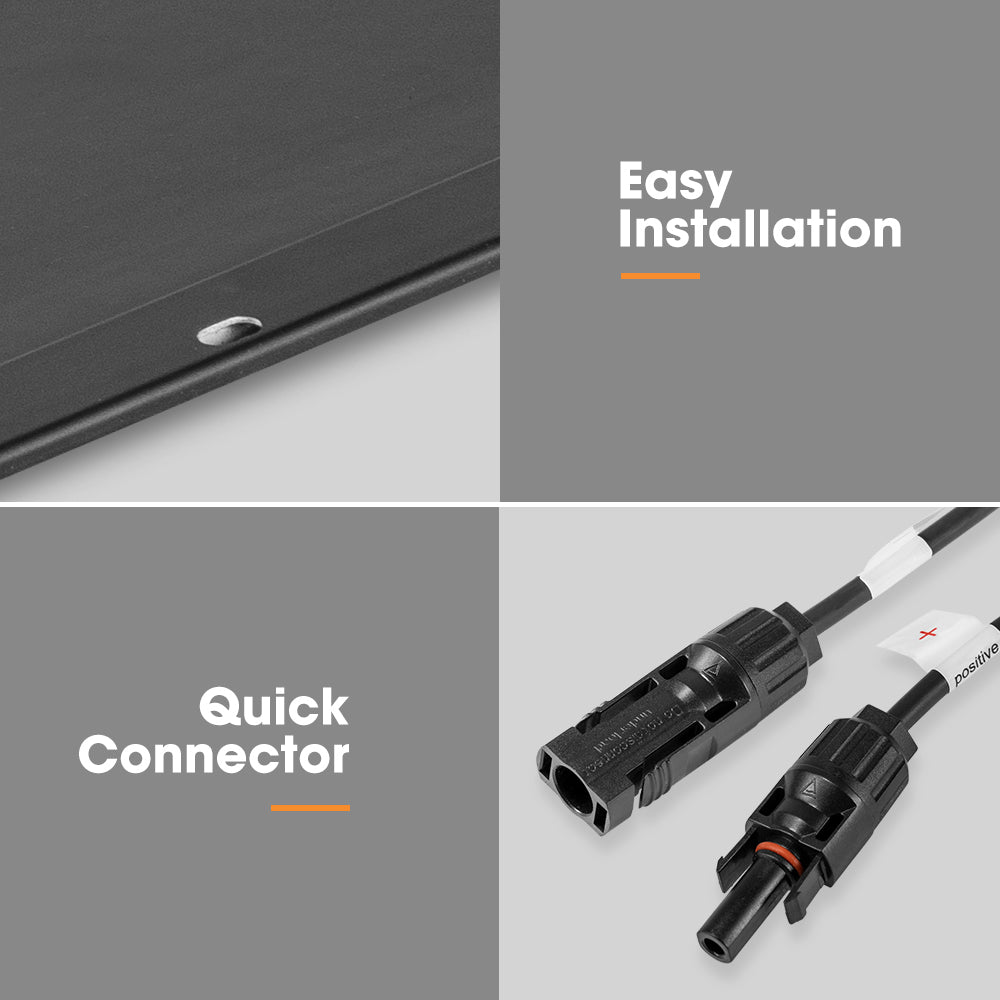

Easy Mounting: Our San Hima 110W ultra slim fixed solar panel also comes with brackets and rubber pads for quick, secure, and hassle-free installation.

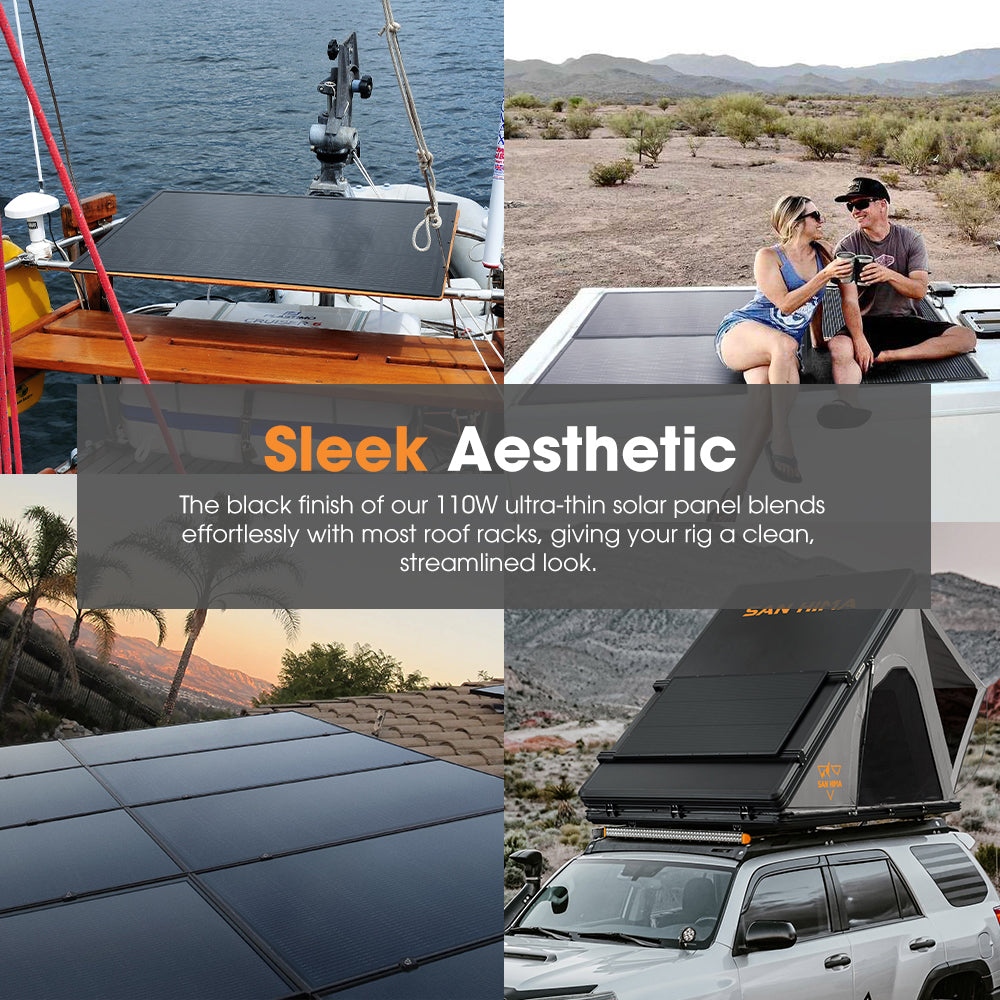

Sleek Aesthetic: The black finish of our 110W ultra-thin solar panel blends effortlessly with most roof racks, giving your rig a clean, streamlined look.

Solar Cell Type:	Grade-A Monocrystalline Cells
Max. Power:	110W
Open Circuit Voltage (VOC):	22.32V
Short Circuit Current(ISC):	6.82A
Max Power Voltage (VMP):	19.18V
Max Power Current (IMP):	6.03A
Module Efficiency:	25%
Maximum System Voltage:	1,000V
Maximum Series Fuse Rating:	50A
IP Rating:	IP-68
Operating Temperature:	-20℃~75℃
Nominal Operating Cell Temperature (NOCT):	40℃
Power Tolerance:	±10%
Output Tolerance:	±10%
Front:	Tempered Glass
Connector:	MC4
Certifications:	CE, FCC, PSE, RoHS

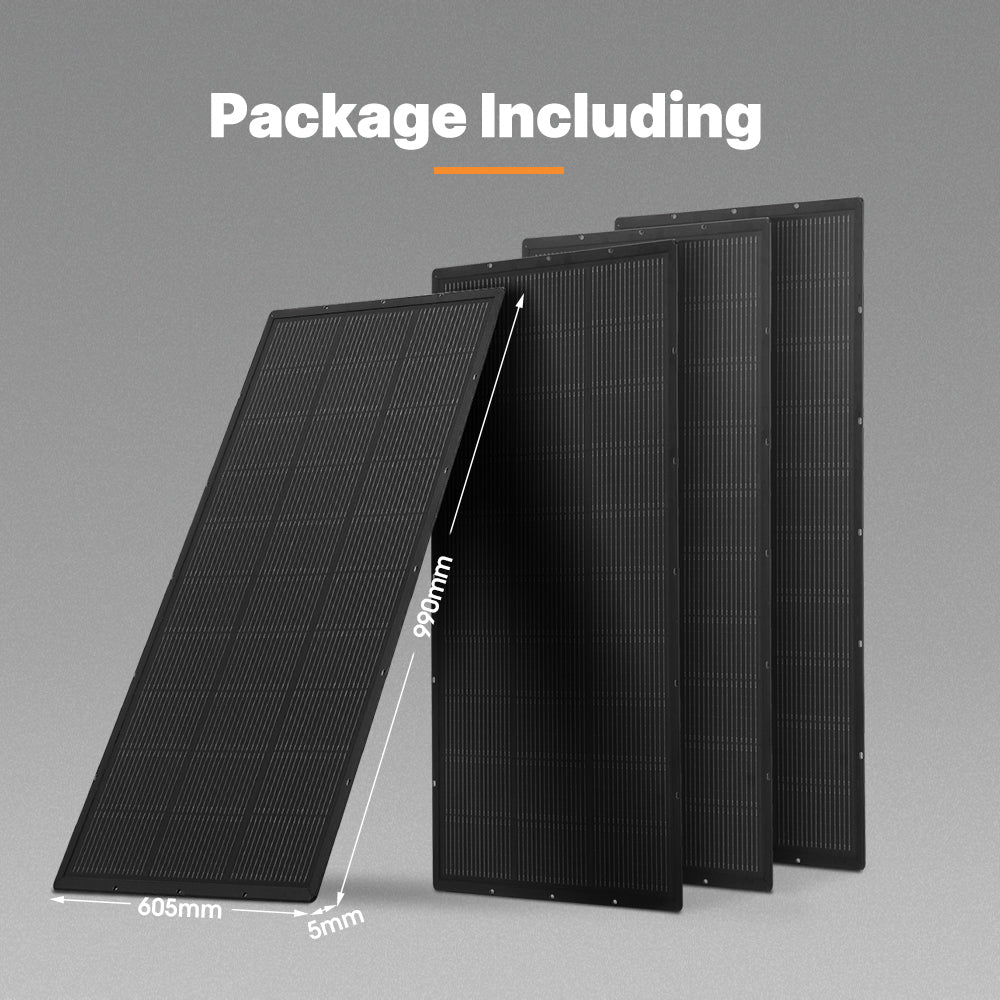

Package Size(Single):	104.2 x 66.4 x 6.5 cm(LxWxH)
Product Weight(Single):	4.3 kg (panel) / 4.6 kg (total)
