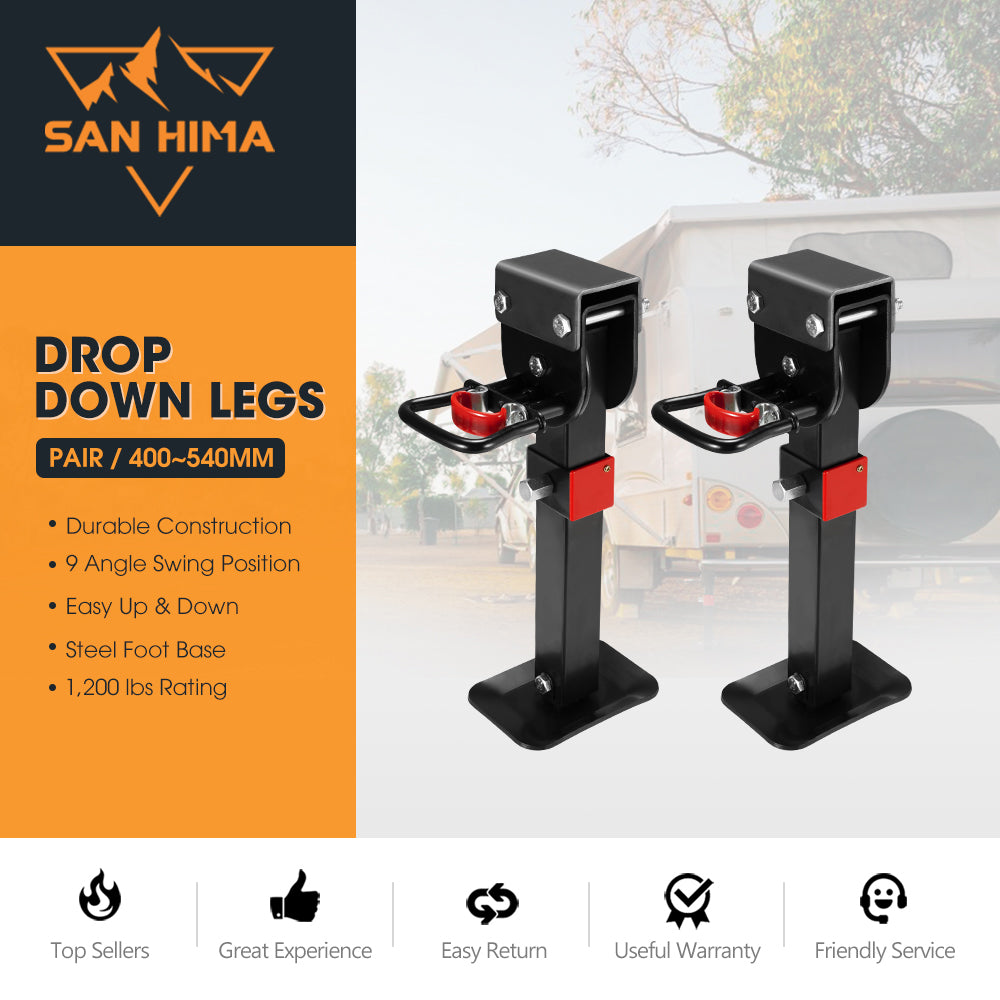

2x 400mm Corner Legs Drop Down W/Handle Steel Base 1200LBS

2x 400mm Corner Legs Drop Down W/Handle Steel Base 1200LBS

Name: 2x 400mm Corner Legs Drop Down W/Handle Steel Base 1200LBS
Brand: San Hima
SKU: VPCL001A-B*2-VOR
Price: 127.46 AUD
Availability: InStock
Rating: 4.9 (8 reviews)

Fits Caravans, camper trailers, and trailer chassis

Product Highlights

Replace two corner legs at once, matched pair
Steady in strong wind, 1,200 lbs per leg
Extends 400mm to 540mm for your chassis
Weld straight to chassis, mounting plates included

1.3k+ Sold

$149.95

$127.46

save $22.49

15% off

Own it today from $31.86 per fortnight

In stock. Ships in 1 business day.

Free Shipping Most Metro Areas

Most Metro Areas

1 Year Warranty

30 Day Returns

Delivery Melbourne VIC 3000, Australia Change postcode

Enter your postcode to see shipping cost

Melbourne VIC 3000, Australia

See full shipping terms

Will These Fit My Caravan?

Fits Caravans, camper trailers, and trailer chassis

These drop-down corner legs are a complete stabiliser set with their own mounting plates included. They are not a drop-in replacement for AL-KO branded legs or other branded carriers.

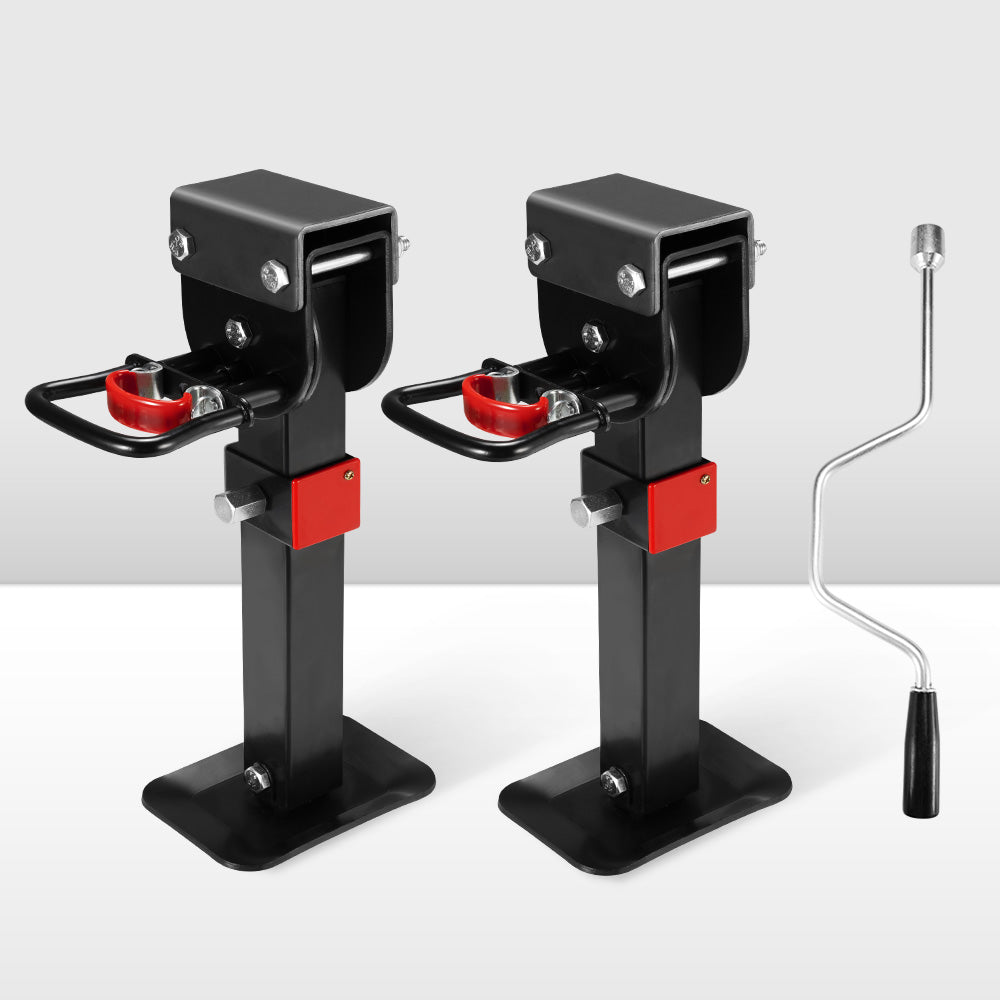

Set: Each pack includes 2 (or 4) drop-down legs, 2 (or 4) mounting plates, all required bolts and nuts, and one hex drive handle.

Fitment: Suits caravans, camper trailers, and box trailers. The legs use the included mounting plates, not your existing AL-KO or branded brackets.

Installation: If your chassis already has compatible brackets, bolt the legs in using the supplied hardware. If not, the supplied mounting plates need to be welded onto your chassis. We recommend a workshop install if you don't weld yourself.

Not compatible with AL-KO carriers: These legs are several millimetres wider than AL-KO carriers and will not bolt into existing AL-KO C-channels. If you currently run AL-KO branded legs, you will need to remove the existing carriers and weld the included plates on. Best suited to new caravan builds, full renovations, or replacement projects where welding is part of the plan.

Load rating: Each leg is rated for static load only (1,200 or 1,500 lbs depending on the SKU). Never use as a jack to lift the caravan or trailer.

1 Year Warranty

This item is backed by a 1 Year Warranty

If a product develops a fault, you are entitled to a replacement or full refund.

What's covered: Defects in materials and workmanship under normal personal use.

What's not covered: Normal wear and tear, accidents, misuse, neglect, or lack of maintenance. Incorrect voltage, power surges, or voltage supply problems. Tampering, unauthorised repairs, or use of defective or incompatible accessories. Natural disasters or other external causes. Damage from operating the product outside the manufacturer's instructions.

How to claim: Submit a claim through the Vicoffroad website with proof of purchase. Customer service reviews each claim case by case and may request a photo. A return label is issued if the product needs to be returned for assessment.

This warranty covers the original purchaser only and is not transferable on resale. It is in addition to your rights under Australian Consumer Law.

Shipping & Delivery

Free Shipping Most Metro Areas: This item ships free to most metro postcodes. A fee applies for other postcodes, varying by location. Use the shipping calculator above to see the shipping fee for this item. If your cart already has items, the calculator shows the combined fee for this product and everything in your cart.

PO Box: This item can be delivered to a PO Box. If your cart also contains items that need a street address, please use a street address for the full order.

Dispatch: We send your order within 1 business day.

Delivery: Most orders arrive in 2 to 12 business days, sent via Australia Post or courier depending on size and weight. We'll email you a tracking number once your order is on the way.

Pickup: Local pickup is available from our Altona warehouse (Victoria). Pay online, and we'll email you when your order is ready to collect.

In-stock items are usually ready within 2 hours. Pre-sale items are ready within 3 business days of stock arriving.

30 Day Returns

30-Day Change of Mind: You can return your order within 30 days of purchase for store credit. Refunds aren't available for change of mind, including ordering the wrong item, gifts that don't suit, or products that didn't meet your expectations.

How to Return: Contact us first so we can give you return instructions. Items posted without confirmation may not be accepted.

Return Costs and Condition: Return freight is at your cost. Items must come back in resalable condition with original packaging and all accessories. Once we receive and check the item, we'll issue your store credit with the freight cost deducted.

Faulty or Damaged Items: Contact us if your item arrives faulty or damaged. We'll guide you through the next steps to resolve it.

This policy does not limit your rights under Australian Consumer Law.

2x 400mm Corner Legs Drop Down W/Handle Steel Base 1200LBS

1.3k+ Sold

$149.95

$127.46

save $22.49

15% off

Product Description

SKU: VPCL001A-B*2-VOR Spending holiday with your family is both stress relieving and relaxing, but how about your camper? It will rock on the strong wind especially when you are camping on an uneven ground. And this is where San Hima drop down corner leg comes into play. This drop down corner leg (1,200lbs capacity) is made of heavy-duty steel with electrophoresis, a process that equips this leg with superior rust, corrosion, scratch and impact resistant performance. So you can rest assured that it will accompany you for really a long time. To suit uneven ground, the base, which measures 16cm x 12cm, will offer your caravan a firmer base and can also achieve a 180° flip. In addition, the rotating plate can also be adjusted to 9 different angles to provide steady yet flexible support to your caravan. A hex drive is included to make the leg go “up” and “down” more convenient. And this device is ideal for trailer, caravan, camper trailer, boat trailer, motorcycle trailer, etc. Be sure not to miss it.
Features

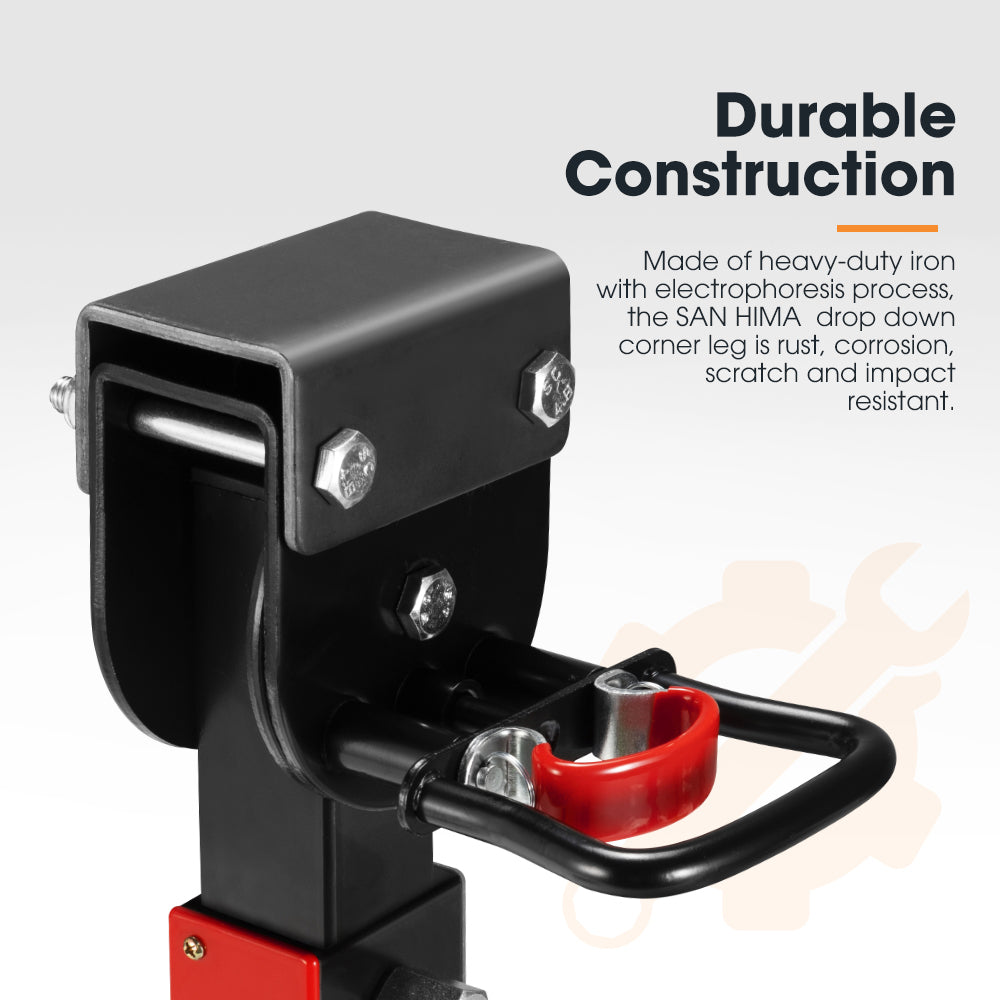

Durable Construction: Made of heavy-duty steel with electrophoresis process, the SAN HIMA drop down corner leg is rust, corrosion, scratch and impact resistant.

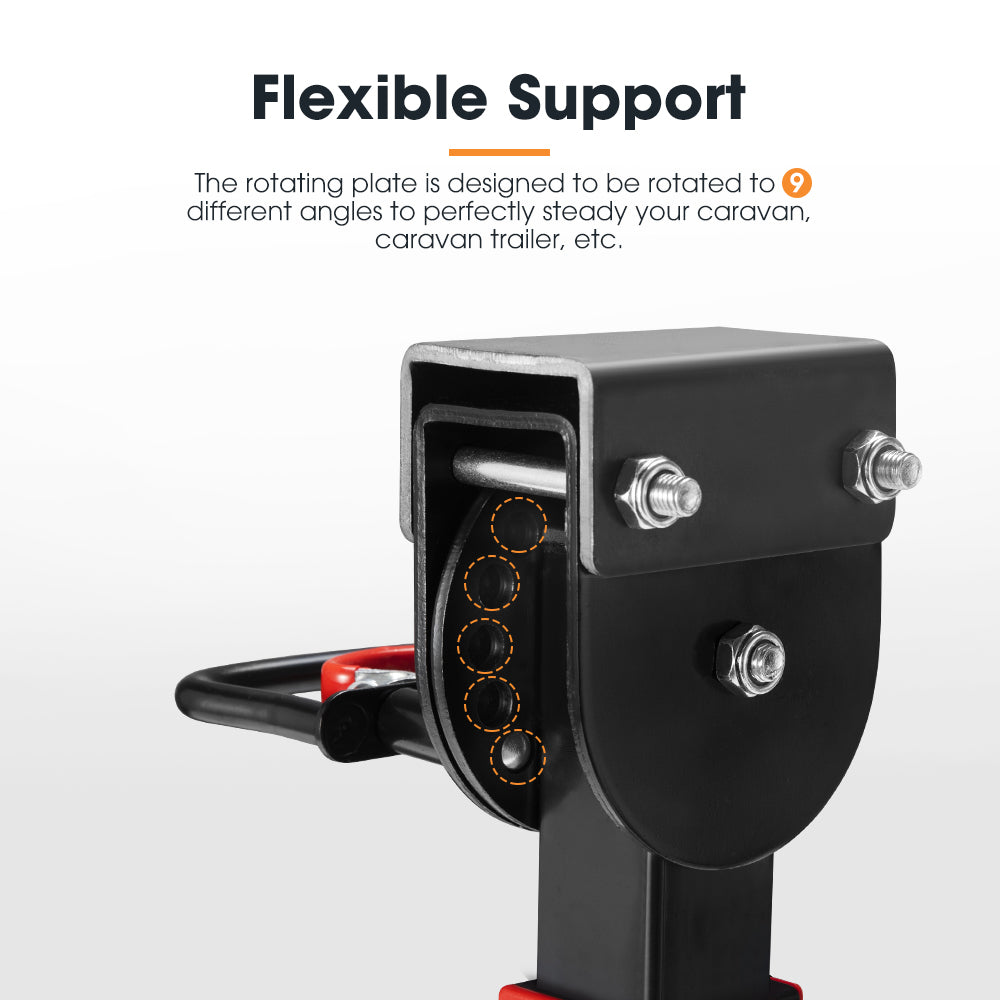

Flexible Support: The rotating plate is designed to be rotated to 9 different angles to perfectly steady your caravan, caravan trailer, etc.

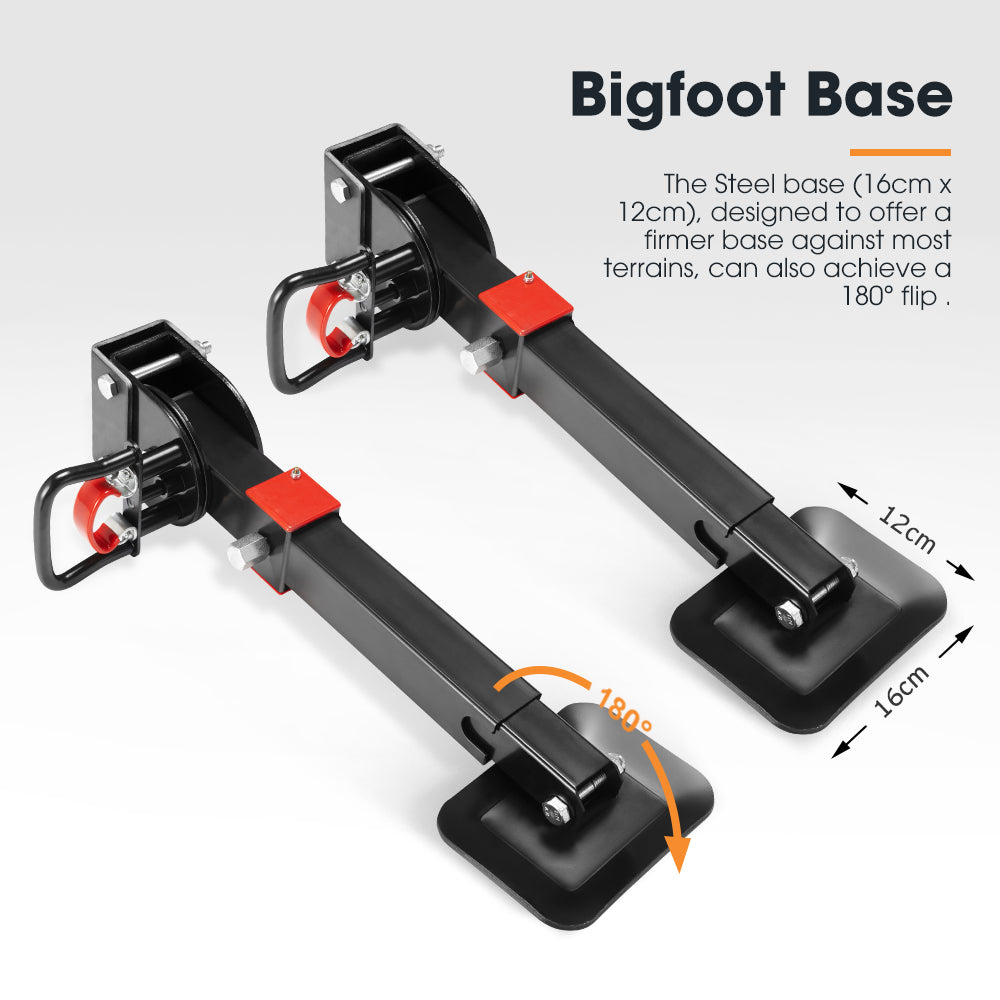

Bigfoot Base: The base (16cm x 12cm), designed to offer a firmer base against most terrains, can also achieve a 180° flip.

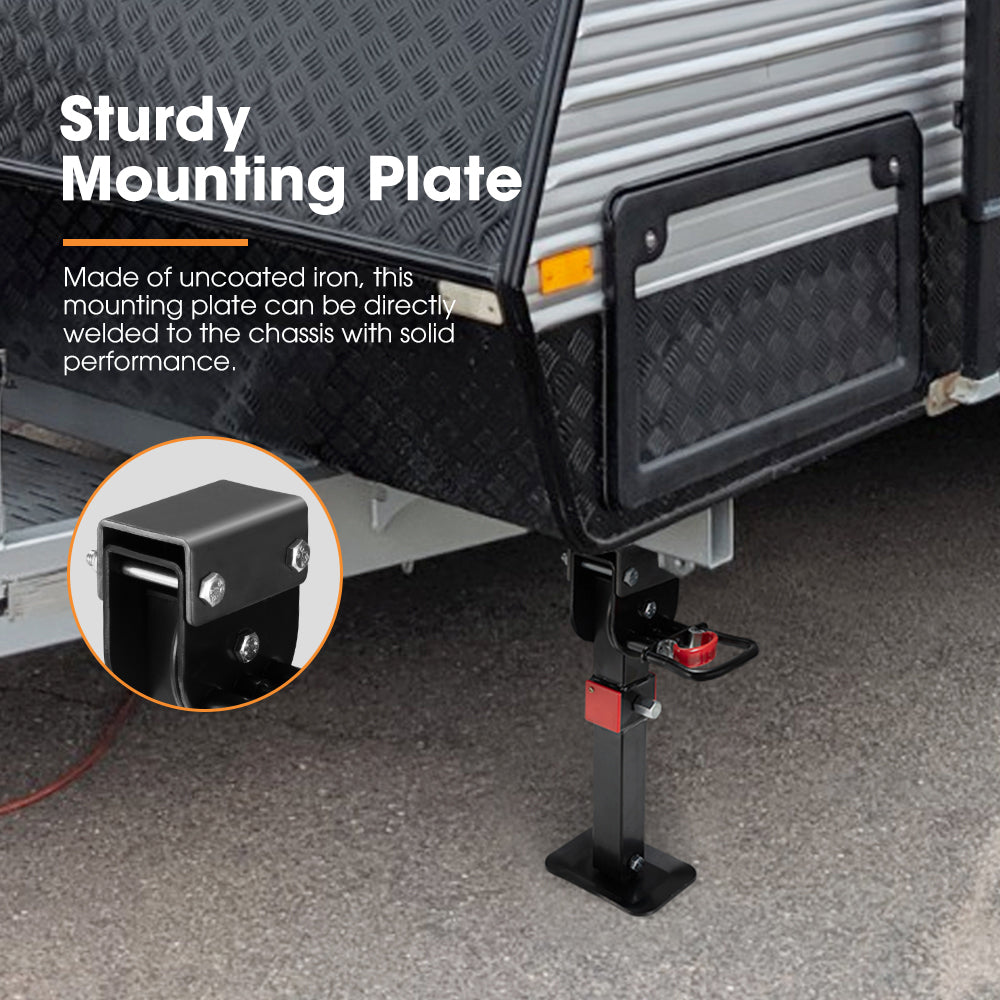

Sturdy Mounting Plate: Made of uncoated iron, this mounting plate can be directly welded to the chassis.

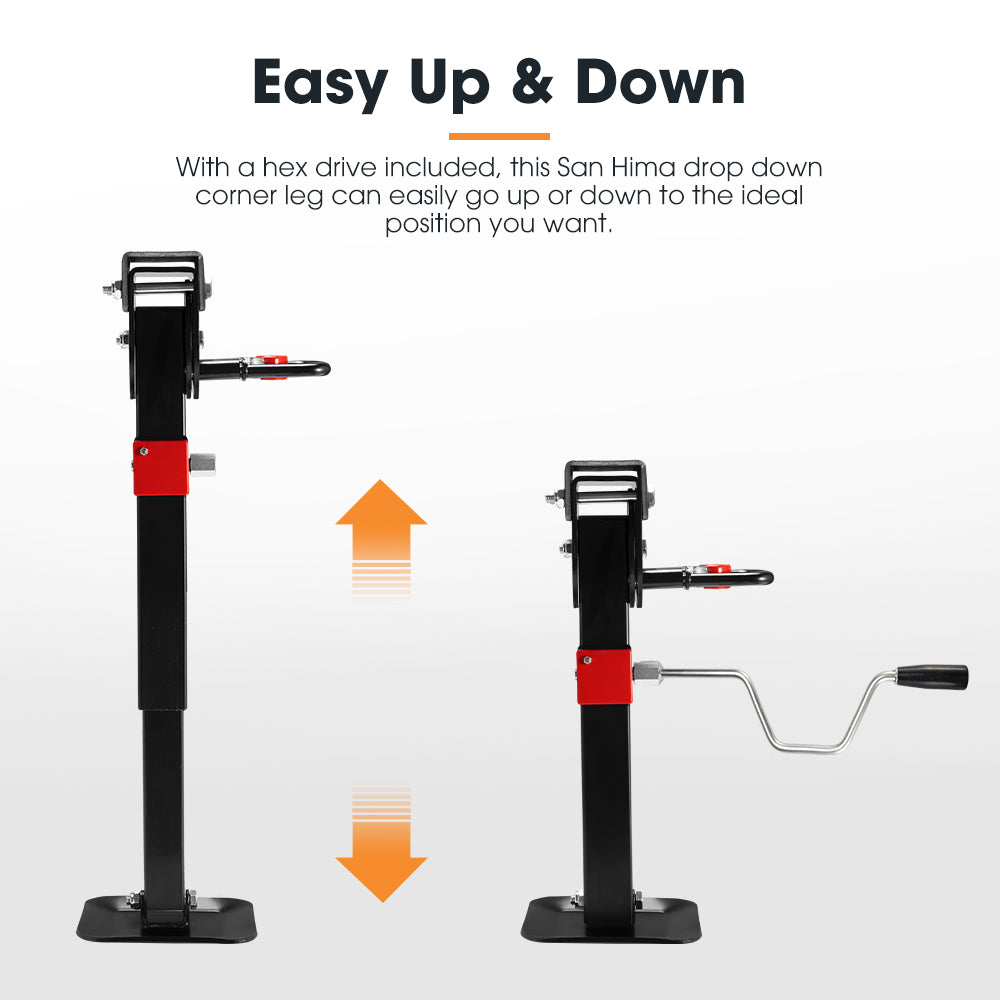

Easy Up & Down: With a hex drive included, this San Hima drop down corner leg can easily go up or down to the ideal position you want.
Enhanced Capacity: The San Hima drop down corner leg is engineered to withstand up to 1,200 lbs of weight, which is sure to excel your demands.

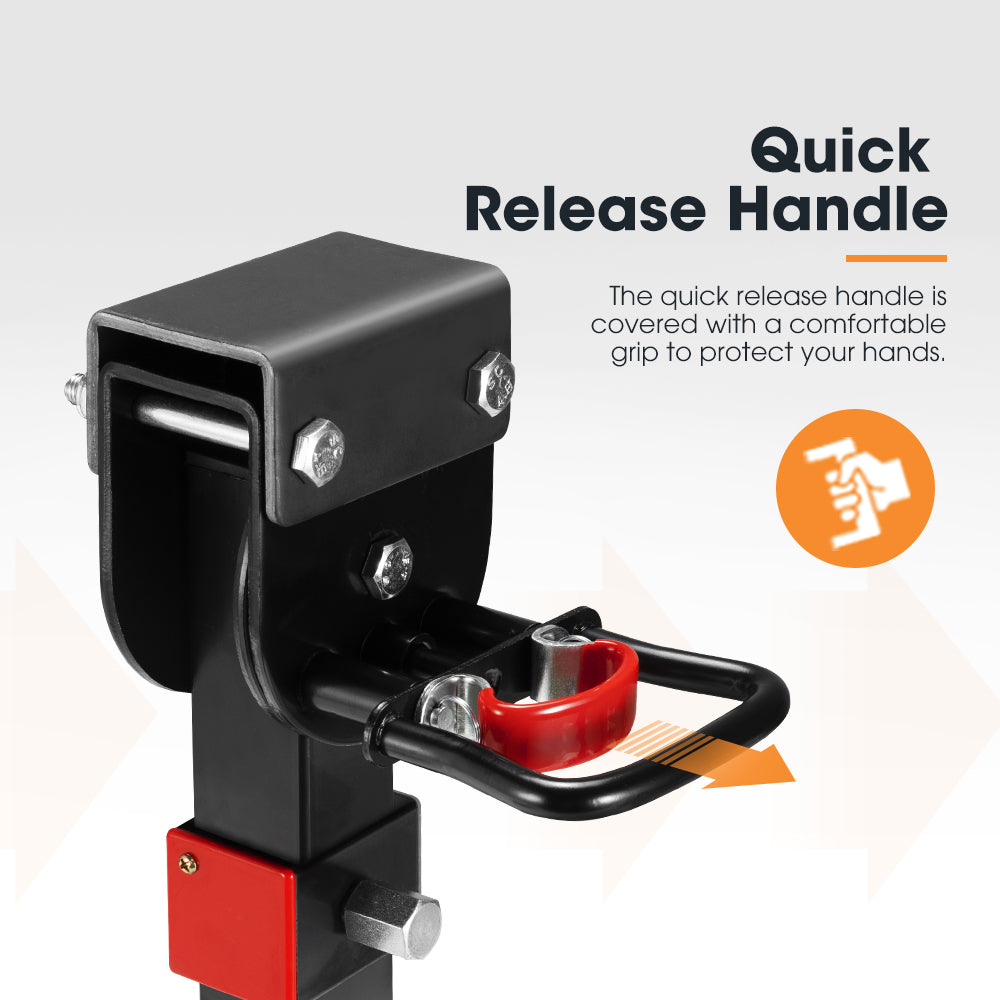

Comfortable Grip: The quick release handle is covered with a comfortable grip to protect your hands.
Flexible Installation: The San Hima drop down corner leg can also be welded to the chassis with or without the mounting bracket. Extended Height: 550MM

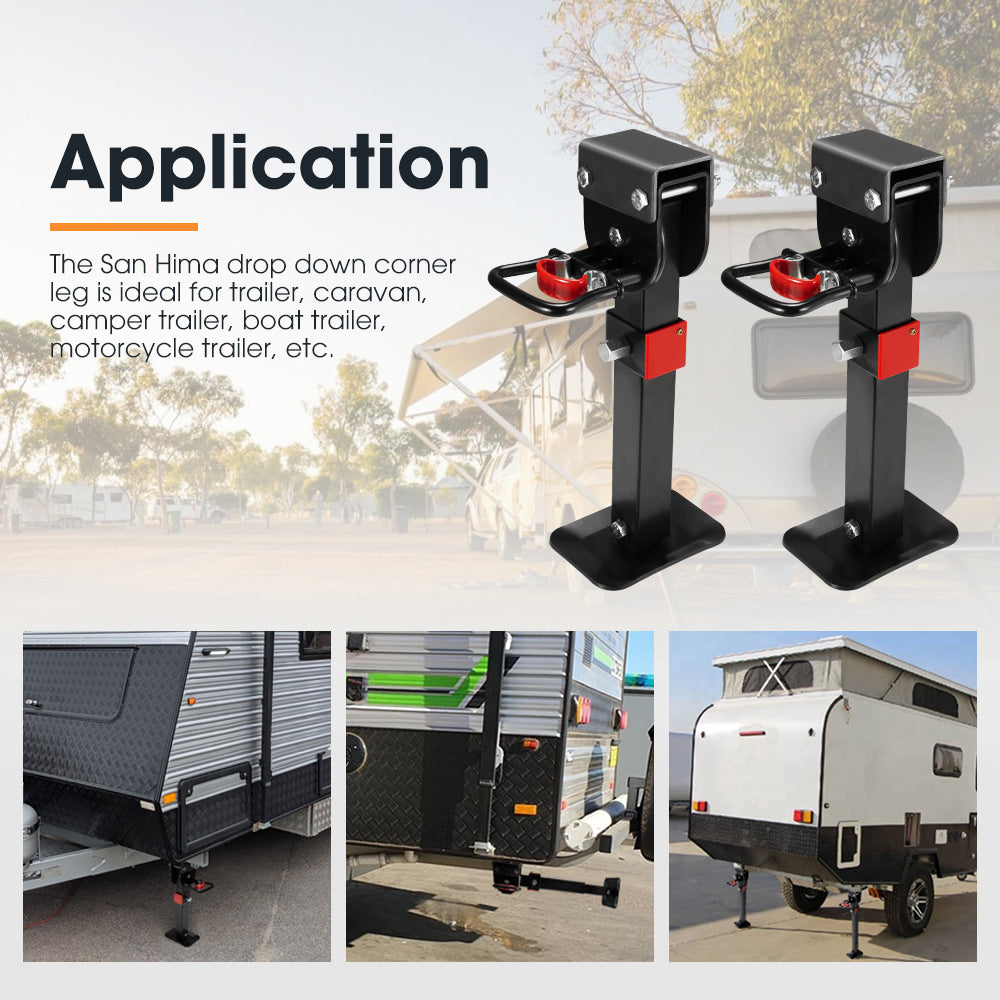

Super Versatility: The San Hima drop down corner leg is ideal for trailer, caravan, camper trailer, boat trailer, motorcycle trailer, etc.

Color:	Black
Rated Capacity (Single):	1,200lbs
Material (Drop Down Corner Leg):	Iron
Material (Mounting Plate):	Uncoated Iron
Surface Finish (Drop Down Corner Leg):	Electrophoresis

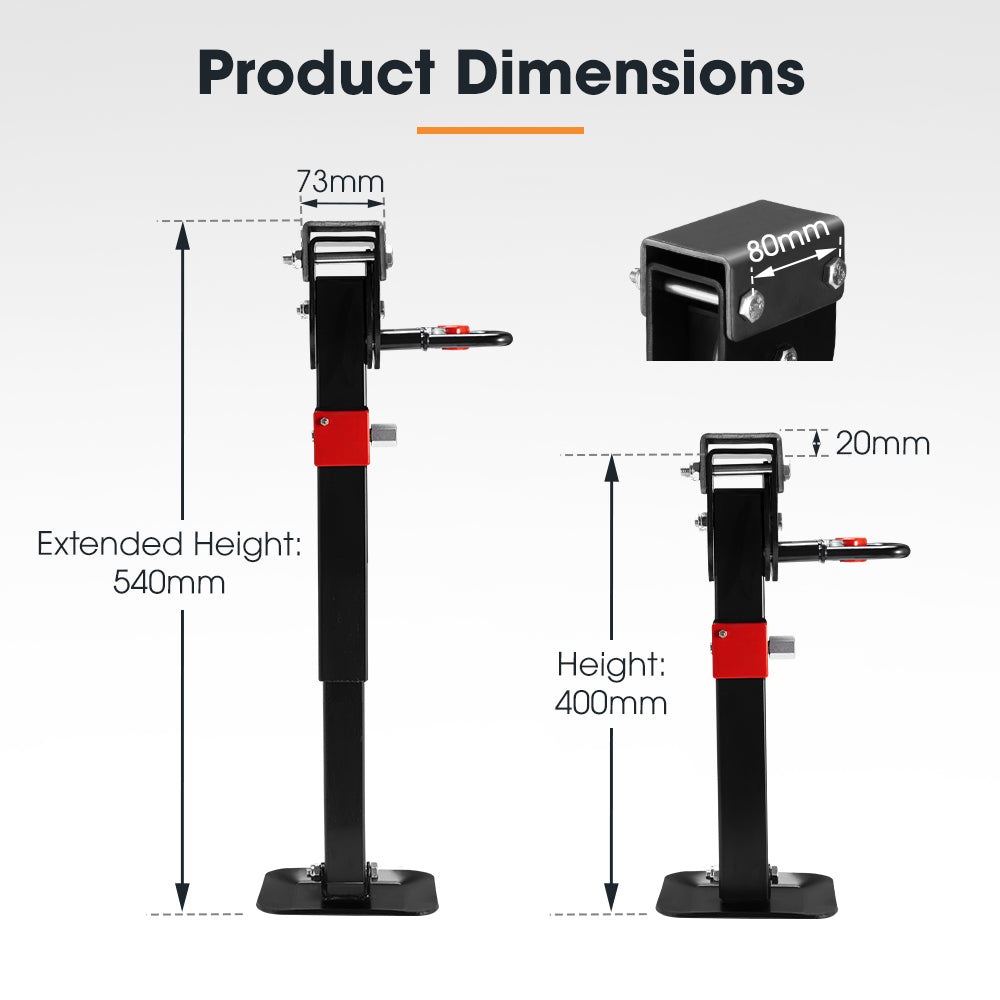

Minimum Height (Fully Extended):	54cm (Mounting Plate Included)
Maximum Height (Dropped Down):	40cm (Mounting Plate Included)
Package Size:	470x310x125mm(per pair)
Weight:	12.25kg (per pair)
