- Description
- Specification
Spare Sensors:
If you're after spare sensors the part numbers are TP-09S (internal valve) and TP-10S (external cap)
Towing? This clever monitor allows you to 'un-link' when you are not towing so you wont have the monitor beeping while worried about lost sensors.
Instructions: When the trailer is not connected to the main vehicle, press the LINK and - buttons at the same time. The trailer and its tire icons will be removed temporarily. Press the LINK and + buttons at the same time and the trailer and its tire icons will re-appear. Clever, HUH!
Overview:
The Masten TP-19 TPMS Tyre Pressure Monitor System with Premium Waterproof External Sensors is specifically designed for for those wanting to monitor their tyre pressure in a non-obscure way due to the compact design of this monitor.
Features
Features
- Simple DIY installation!
- Masten improved wireless signal
- Attractive design with visual and audible alarm
- 8 Metre Wireless Range
- PSI and BAR Adjustable Units
- Adjustable Front and rear sensors high/low pressure alarm range
- Real-time Tire Pressure and Temperature Display of all Tyres Simultaneously
- TPMS information screen will automatically appear if a tyre problem is detected
- The clear display allows you to easily identify problem tyres in red for fast evaluation
- Premium quality sensors
- Up to 3 Year Battery Life for External Cap Sensors (Battery can be changed)
- User friendly programming functions
- Monitor Tyre Pressure and Temperature on your Car, Truck, Trailer, Caravan, Horse Floats Continuously in Real-time
- The Masten TP-19/TP-20 Monitor produces an audible alarm when the pressure drops below or rises above your preferred set ranges
- Anti-Theft and Company Sensors that will lock onto your tyres
- We have options available for 4, 6 and 8 sensor kits – the TP-19/TP-20 will pair with up to 22 tyres and we offer spares at an extra charge
- Easy to use monitor with a simple switch function allowing you to switch off caravan/trailer sensors when it’s parked
- Audible alarm when monitor or sensor batteries are running low
- Included Cigarette Socket Charger and hard wire cable for concealed power
- Note:Your order will dispatched within 2-3 business days.
Monitor Specifications | |
Operational Temperature: | -20 to 80°C |
Storage Temperature: | -30 to 85°C |
Transmission Frequency: | 433.92MHz |
Charger Input Voltage: | DC 8 to 30V |
Size: | 116(L) x 68(W) x25 (H)mm |
Weight: | 138g |
External Cap Specifications | |
Operational Temperature: | -40 to 80°C |
Storage Temperature: | -40 to 85°C |
Pressure Range: | 0 to 8BAR, 0~116PSI |
Pressure Accuracy: | ±0.1BAR, ±1.5PSI |
Temperature Accuracy: | ±3°C |
Transmission Power: | <10dBm |
Transmission Frequency: | 433.92MHz |
Battery life: | Approx 3 years(CR1632, -40 to 80°C) |
Size: | 21mm(diameter) x 17.5mm(height) |
Weight: | 9g |
Internal Valve Sensor Specifications-Optional | |
Operational Temperature: | -40 to 80°C |
Storage Temperature: | -40 to 85°C |
Pressure Range: | 0 to 8BAR, 0~116PSI |
Pressure Accuracy: | ±3°C |
Transmission Power: | <10dBm |
Transmission Frequency: | 433.92MHz |
Battery life: | Up to 5 years |
Size: | 60(L) x 35(W) x21(H)mm |
Weight: | 48g |

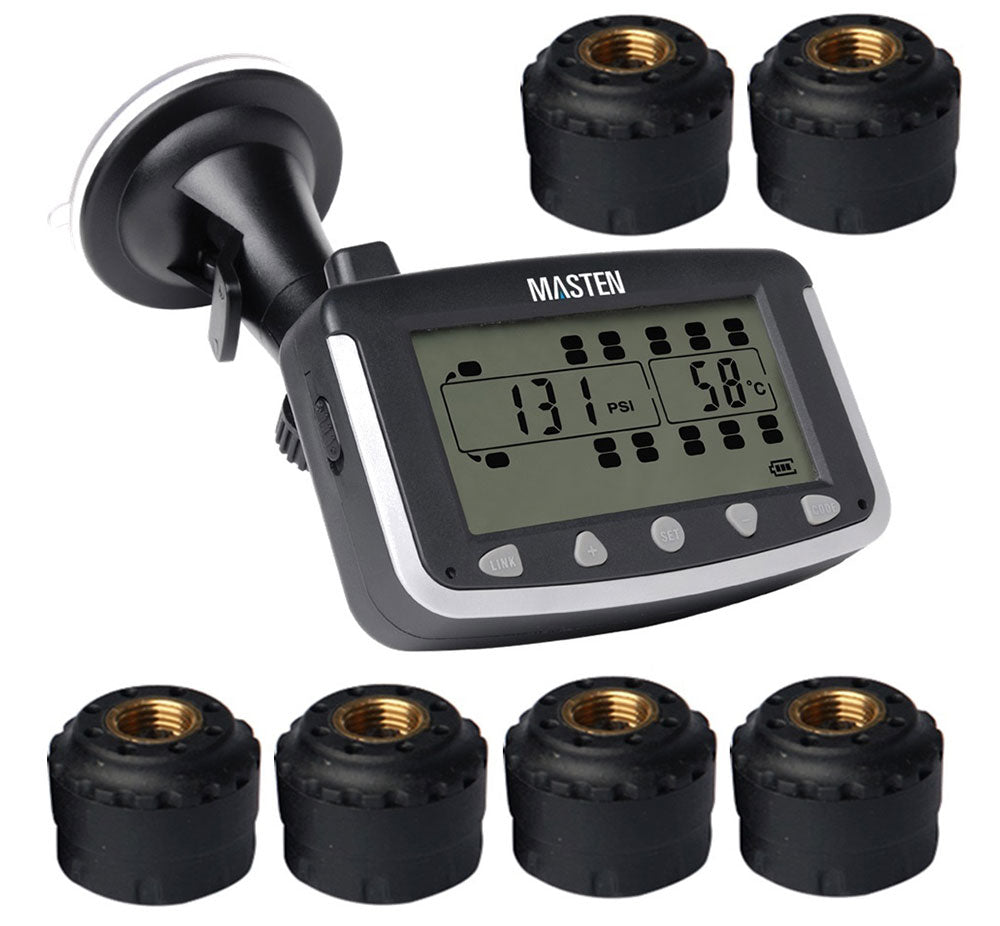

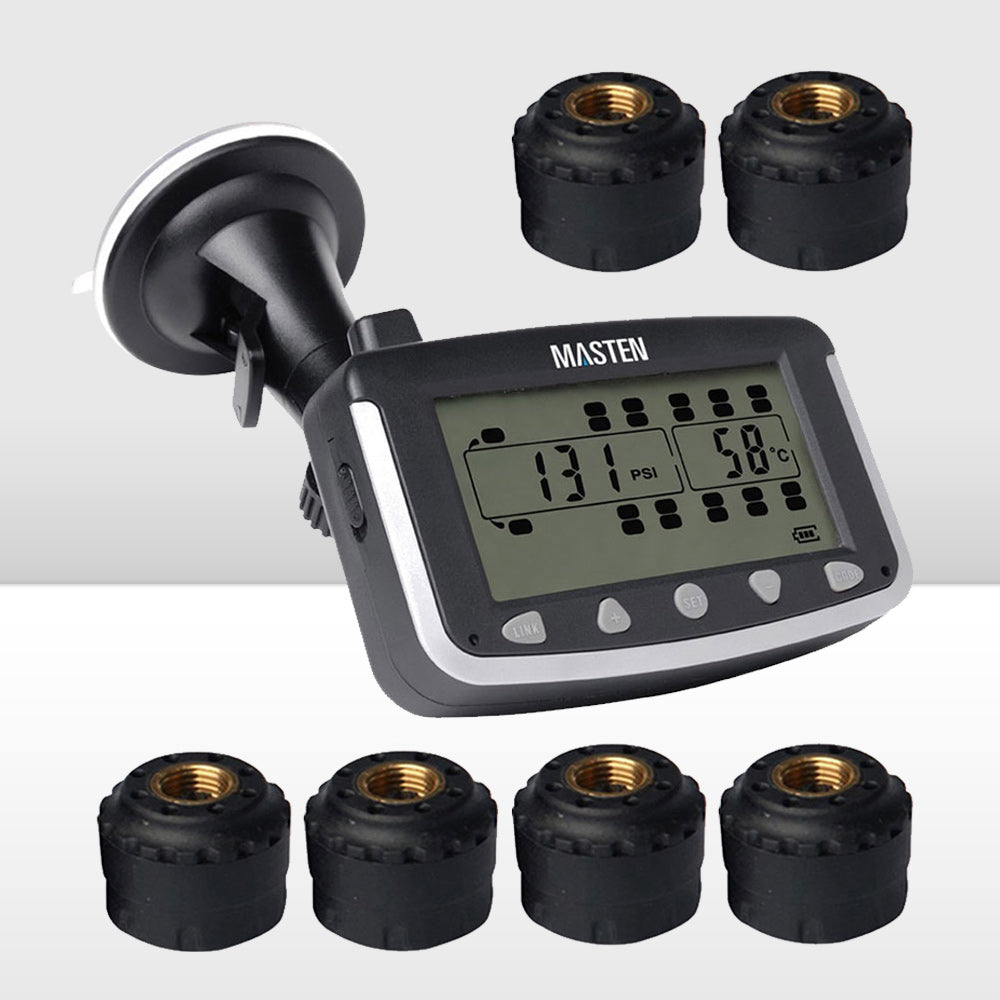

PACKAGE INCLUDES
- 1X Masten Real-Time TPMS 3.5" Monitor with Upgraded Transmitter and Improved Brightness Panel
- 6X Premium Masten TP-10S External Cap Sensors
- 6X Weather-proof Rubber Seals
- 1X Cigarette Socket Power Adapter
- 1X Desk-Mount Monitor Holder Attachment
- 1X Windscreen Suction Mount
- 2X TPMS Wrench
WARRANTY
2 Year Warranty
GTIN
