Atem Power 12V 130W Bifacial Shingled Solar Panel Kit Mono Fixed Camping Caravan

Atem Power 12V 130W Bifacial Shingled Solar Panel Kit Mono Fixed Camping Caravan

Name: Atem Power 12V 130W Bifacial Shingled Solar Panel Kit Mono Fixed Camping Caravan
Brand: Atem Power
SKU: AP-FISED-DS130W-VOR
Price: 151.95 AUD
Availability: OutOfStock
Rating: 5.0 (13 reviews)

Product Highlights

Captures extra power from reflected light, rear side picks up 72W
Handles shade well with shingled cells, PERC tech and bypass diodes
Stays sealed in rain, dust and harsh weather year round with IP68
Light enough for roof racks and canopy mounting at 6.5kg per panel

386 Sold

$159.95

$151.95

Own it today from $37.98 per fortnight

Free Fast Shipping AU Metro Areas

AU Metro Areas

5 Year Warranty

30 Day Returns

Will This Work With My Setup?

Fixed solar panels mount permanently to roof racks, canopy roofs, caravan roofs, trailers and flat surfaces. All panels use MC4 connectors and connect to your existing charge controller.

Mounting: Panels bolt to your roof rack or mounting surface using Z-brackets or flat mounts. PERC panels include a mounting kit. Other panels need mounting hardware sold separately. Check panel dimensions against your available roof space before ordering.

Wiring: MC4 connectors are standard across all panels. If your setup uses Anderson-style plugs, you'll need an MC4-to-Anderson adapter (not included).

Charge controller: Each panel needs a charge controller to protect your battery. If your existing MPPT or DC-DC charger is rated for the panel's wattage and amperage, connect directly. Otherwise, source a controller that matches the panel's max current.

Adding more panels: Run two or more panels in parallel using MC4 branch connectors for more output. Match wattage across panels for best results. Check your charge controller's voltage limit before wiring panels in series.

5 Year Warranty

This item is backed by a 5 Year Warranty

If a product develops a fault, you are entitled to a replacement or full refund.

What's covered: Defects in materials and workmanship under normal personal use.

What's not covered: Normal wear and tear, accidents, misuse, neglect, or lack of maintenance. Incorrect voltage, power surges, or voltage supply problems. Tampering, unauthorised repairs, or use of defective or incompatible accessories. Natural disasters or other external causes. Damage from operating the product outside the manufacturer's instructions.

How to claim: Submit a claim through the Vicoffroad website with proof of purchase. Customer service reviews each claim case by case and may request a photo. A return label is issued if the product needs to be returned for assessment.

This warranty covers the original purchaser only and is not transferable on resale. It is in addition to your rights under Australian Consumer Law.

Shipping & Delivery

Free Shipping: We offer free shipping for most metro postcodes across Australia. Regional and remote areas may carry an extra charge, you'll see your total once you enter your postcode at checkout.

Dispatch: We send your order within 1 business day.

Delivery: Most orders arrive in 2 to 12 business days, sent via Australia Post or courier depending on size and weight. We'll email you a tracking number once your order is on the way.

PO Box: We don't ship to PO Boxes. Please provide a physical street address at checkout.

Pickup: Local pickup is available from our Altona warehouse (Victoria). Pay online, and we'll email you when your order is ready to collect.

In-stock items are usually ready within 2 hours. Pre-sale items are ready within 3 business days of stock arriving.

30 Day Returns

30-Day Change of Mind: You can return your order within 30 days of purchase for store credit. Refunds aren't available for change of mind, including ordering the wrong item, gifts that don't suit, or products that didn't meet your expectations.

How to Return: Contact us first so we can give you return instructions. Items posted without confirmation may not be accepted.

Return Costs and Condition: Return freight is at your cost. Items must come back in resalable condition with original packaging and all accessories. Once we receive and check the item, we'll issue your store credit with the freight cost deducted.

Faulty or Damaged Items: Contact us if your item arrives faulty or damaged. We'll guide you through the next steps to resolve it.

This policy does not limit your rights under Australian Consumer Law.

Product Description

SKU: AP-FISED-DS130W-VOR If you want solar panels that deliver higher energy yields, look no further than our shingled bifacial solar panels! They capture sunlight from both sides, providing 15% more energy compared to monofacial panels. Shingle technology also elevates efficiency, generating more power even in low-light conditions. Thanks to its ability to capture sunlight from both sides and the incorporation of PERC and bypass diodes, this 130W bifacial solar panel maximizes energy output on cloudy days and performs exceptionally on snowy days. The back side is always available, ensuring a continuous supply of solar power for your off-grid life. And that's not all – the shingled technology boosts output by 15~20% compared to traditional solar panels. Wired in parallel, these shingled solar panels significantly reduce losses and eliminating the hot spot effect caused by shade. On top of that, its IP-68 rating allows it to defy harsh conditions, while no visible circuitry gives it a sleek look.
Features

Bifacial Evolution: With a 130W primary side, and a 72W back side for ambient light, you can catch up to 15% more energy than traditional monofacial solar panels.

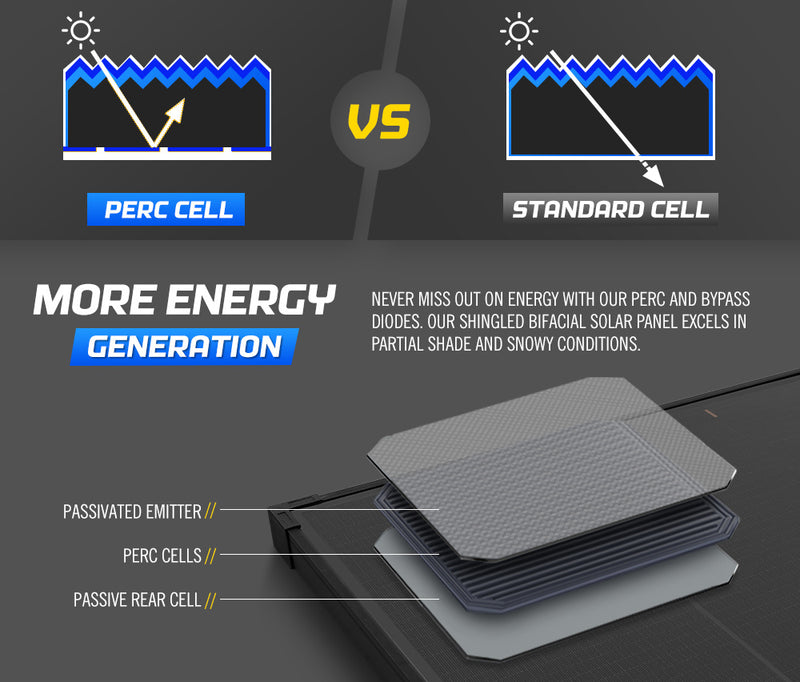

More Energy Generation: Never miss out on energy with our PERC and bypass diodes. Our shingled bifacial solar panel excels in partial shade and snowy conditions.
Shingled Cell Tech: Shingled tech uses a string of strips and ECA that ensures 15~20% more output compared with traditional monofacial solar panels
Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel.

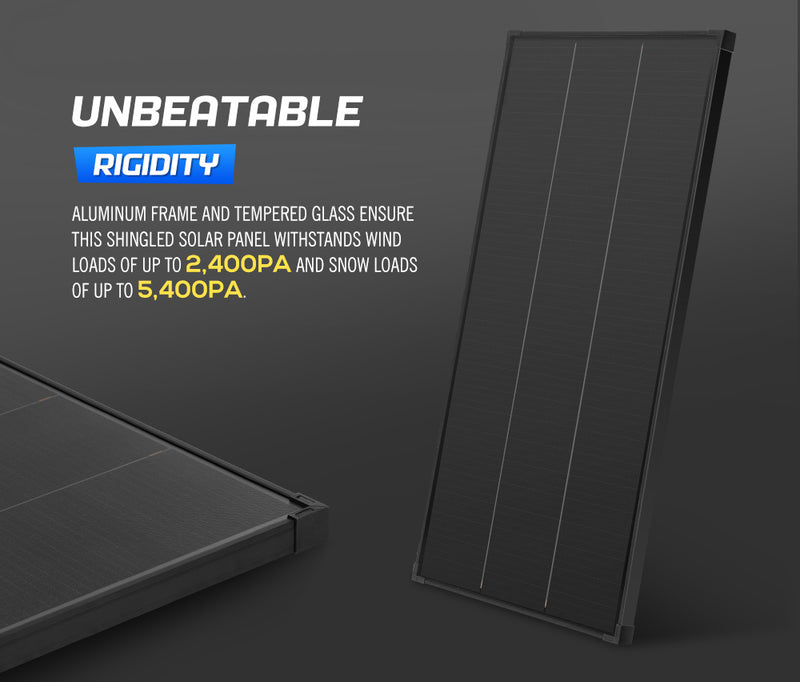

Unbeatable Rigidity: Aluminum frame and tempered glass ensure this shingled solar panel withstands wind loads of up to 2,400Pa and snow loads of up to 5,400Pa.
All Weatherproof: Rain or shine, our shingled bifacial solar panel's IP68 waterproof rating keeps your electronics running, worry-free.

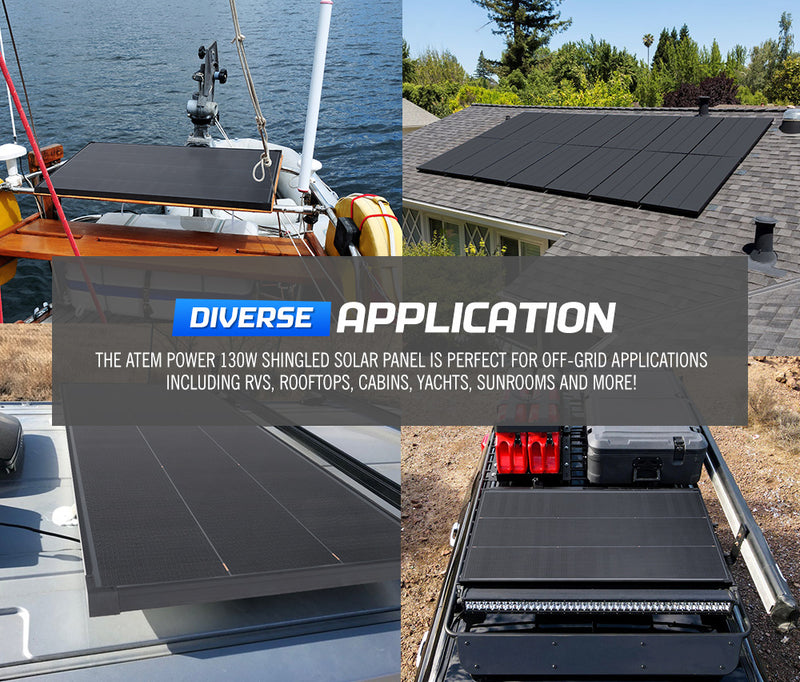

Diverse Application: The ATEM POWER 130W shingled solar panel is perfect for off-grid applications including RVs, rooftops, cabins, yachts, sunrooms and more!
More Aesthetic: Sleek and circuitry-free, our shingled bifacial solar panel adds a clean and stylish touch while delivering unmatched performance.

Material:	Shingled Cells
Front Glass:	Tempered Glass
Frame:	Aluminum
Color:	Black
Wire Size:	2.5mm2
Max Power at STC:	130W(Front)/72W(Rear)
Max. System Voltage:	500V
Open Circuit Voltage (VOC):	24.27V
Short Circuit Current (ISC):	6.37A(Front)/5.21A(Rear)
Max Power Voltage (VMP):	20.42V
Max Power Current (IMP):	6.37A
Power Tolerance:	0~3%
Output Tolerance:	0~3%
Module Efficiency:	22%
Bifaciality Coefficients:	55.3%
Operating Temperature:	-40℃~80℃
Nominal Operating Cell Temerature (NOCT):	25℃
IP Rating:	IP-68
Wind Resistance:	2,400Pa
Snow Load:	5,400Pa
Certifications:	CE/RoHS

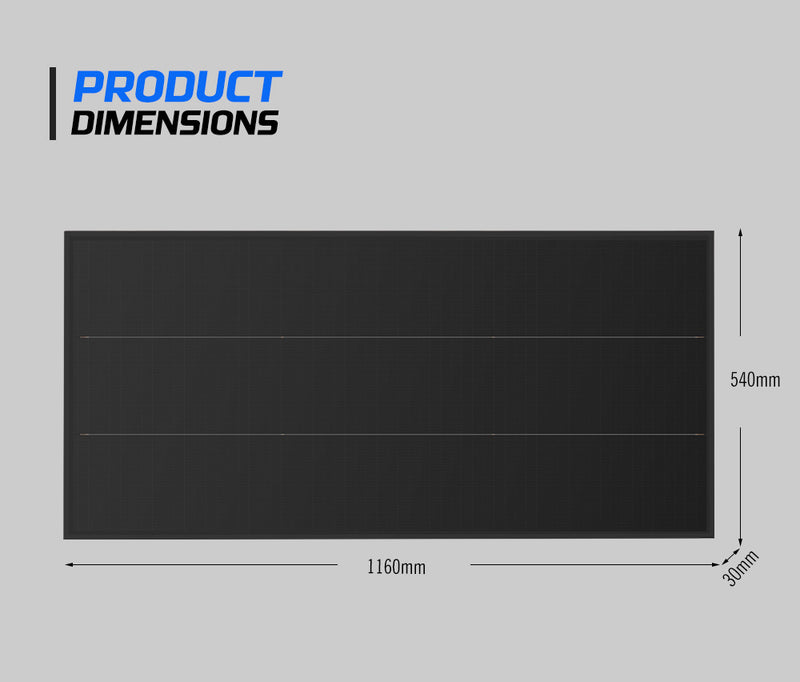

Package Size:	118(L) x 5.80(W) x 56.30cm(H)
Product Weight:	6.5kg
