EPOWER 2600W/12V W/RCD & AC TFER Switch
Sustainability features
This product has sustainability features recognised by trusted certifications:
Contains at least 50% recycled material.
Made with chemicals safer for human health and the environment.
Manufactured on farms or in facilities that protect the rights and/or health of workers.
Certification Body
Intertek
Certification number
TE-00299281
In Stock! Ship in 10-15 business days!
FREE SHIPPING ZONE
We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.
EPOWER 2600W/12V W/RCD & AC TFER Switch
Regular price
Sale price$1,999.00 (/)
Description
The ePOWER 2600W Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, ePOWER inverters deliver clean and energy efficient true sine wave AC power from your DC supply.

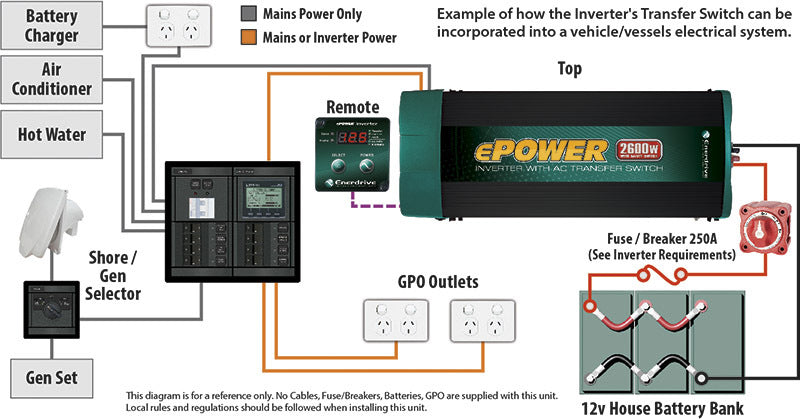

This ePOWER Inverter incorporates a 16A AC Transfer Switch which allows for seamless AC power transfer between Mains/Generator and Inverter. This helps to keep your appliances running with almost no break time on AC transfer and allows for a much simpler installation on-board.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The ePOWER 2600W is built to operate basic equipment such as power tools, computers, microwave ovens, televisions and other appliances that use up to 2600W of power for operation.

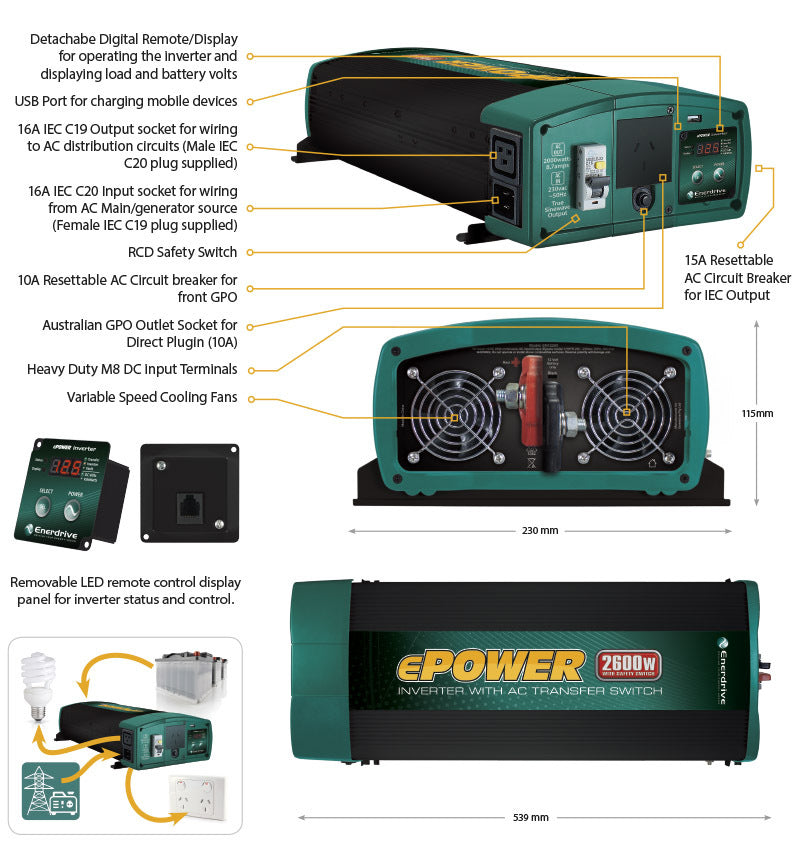

Features
Features
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Removable LED Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Silent Operation
- Compact Size for Easy Installation
- USB Port for charging USB devices
FAQs
Specifications
| Model – Description | EN1226S-X |
| AC Output Power | 2600W |
| AC Output Current | 11.3A |
| AC Output Voltage | 230 Vac / 50 Hz |
| AC Output Waveform | Sinewave (<3% THD) |
| Nominal DC Input Voltage | 12.5 VDC |
| No Load battery draw | < 1.5 ADC |
| DC Input Voltage operating range | 10.5 – 15.5 VDC |
| Under Voltage Alarm | 11.0 / 12.1 VDC |
| Under Voltage Alarm Recovery | 11.3 / 12.3 VDC |
| Under Voltage Shutdown | 10.5 / 11.8 VDC |
| Under Voltage Shutdown Recovery | 12.0 / 12.6 VDC |
| Over Voltage Shutdown | 15.5 VDC |
| USB Port | 5V, 2.1A |
| AC Transfer Switch | |
| Transfer Time | < 30 ms |
| Transfer Relay Rating | 16A (resistive load) |
| AC Input socket IEC-C20 | 16A max |
| AC Output socket IEC-C19 | 16A max |
| AC Output Front GPO | 10A max |
| Safety and Environmental | |
| Conformance | All required Australian Standards , CE LVD: EN/IEC 62040-1, IEC61558-2-16 |
| EMI / EMC | CE EMC: EN/IEC 62040-2 category C1 |
| Agency Markings | RCM , CE |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5-90% non-condensing |
| Operating Altitude | Up to 3000 meters above sea level |
| Weights and Dimensions | |
| Weight | 7.0 kg |
| Dimensions (W x L x H) | 560x230x115 mm |
| Warranty | 5 Years |
Package Includes
- 1 x Inverter with AC Transfer
Warranty
5 Years Warranty
GTIN
9342616000335
