- Description
- Specification

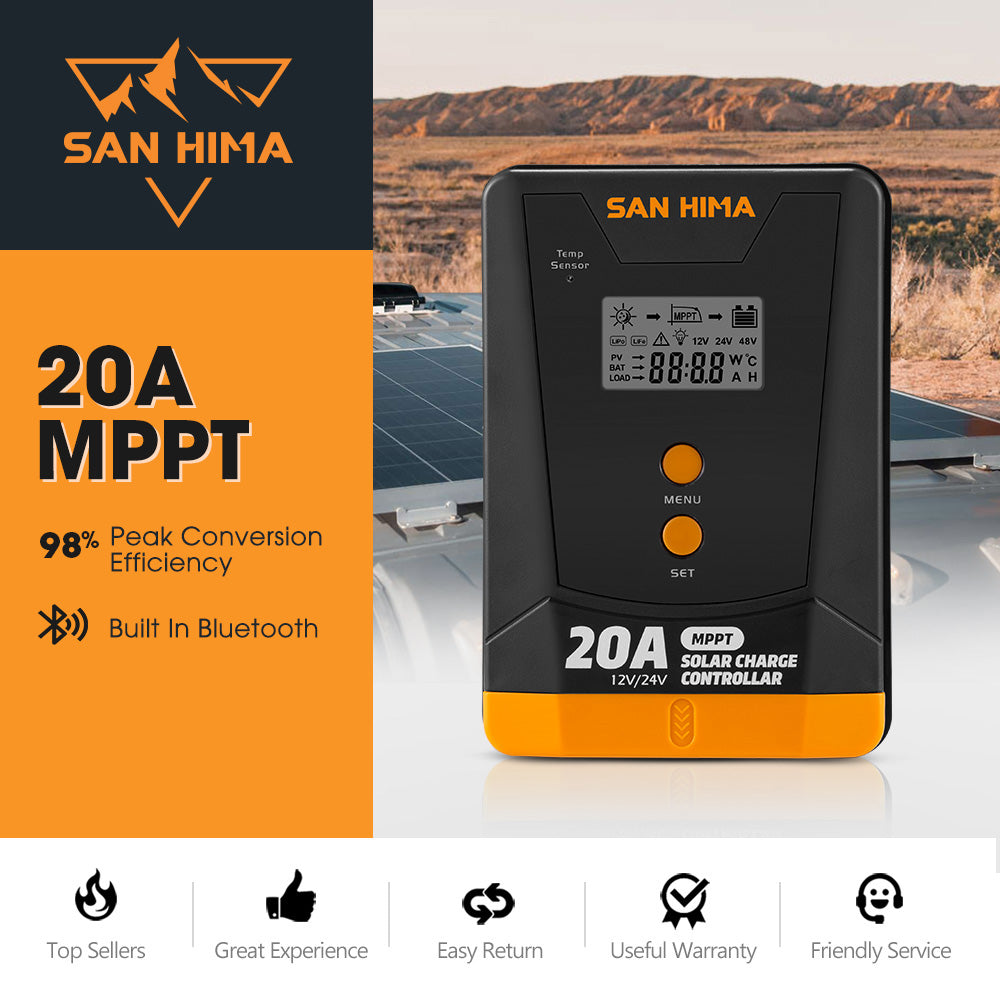

Whether you're on the road in an RV or relaxing in a shaded woodland cabin, our MPPT controller utilizes advanced MPPT technology to optimize solar power capture for efficient battery charging, boasting 99.5% tracking efficiency. Its built-in temperature sensor and Bluetooth module simplify setup and monitoring.
Our MPPT solar charge controller provides exceptional functionality and ease of use for both 12V and 24V systems. It seamlessly adapts to various battery types, supporting lithium-ion, flooded, AGM, gel, and calcium batteries. Our MPPT lithium solar charge controller ensures comprehensive protection against multiple potential issues, safeguarding your system and battery. Our MPPT solar regulator includes a clear LCD screen that displays essential information, allowing for easy monitoring of your solar setup. The built-in Bluetooth module allows for convenient remote monitoring, enabling real-time access to system data and parameter adjustment from anywhere.
Features
Features
- Efficient MPPT Technology: Our MPPT solar charge controller achieves exceptional tracking efficiency of 99.5% and its peak conversion efficiency reaches 98%.
- Accurate Charging: An integrated temperature sensor measures ambient temperature in real-time to ensure precise temperature compensation during charging.

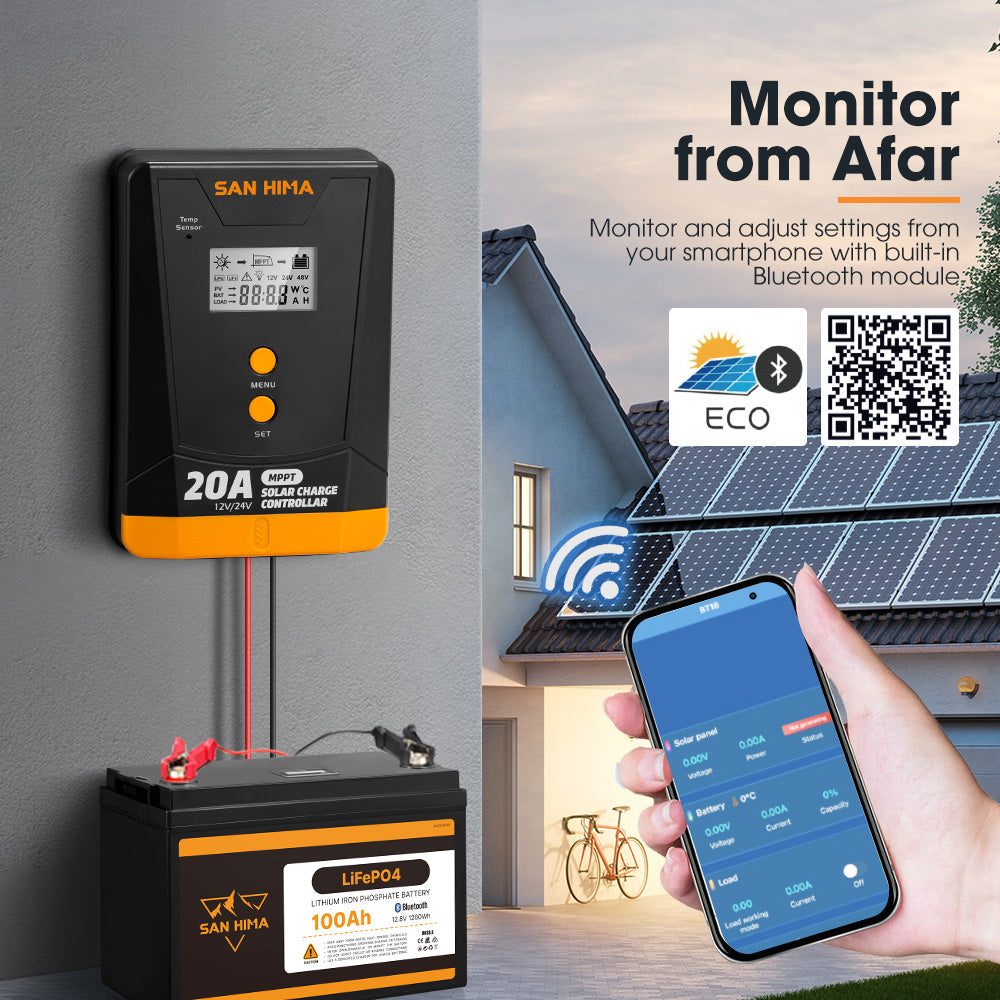

- Remote Monitoring: With built-in Bluetooth module, effortlessly monitor your system, access real-time data, and adjust parameters directly from your smartphone.

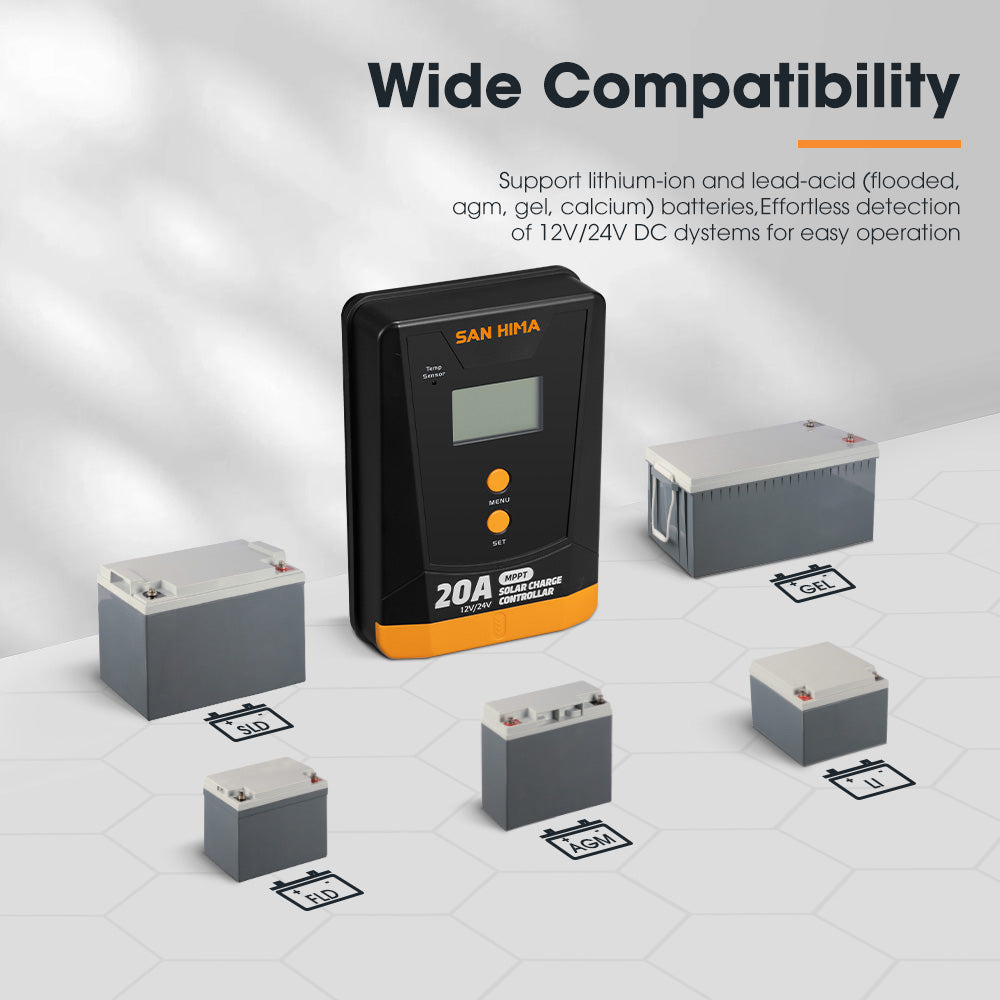

- Highly Compatible: Our MPPT controller supports diverse battery types including lithium-ion and lead-acid variants such as flooded, AGM, gel, and calcium batteries.

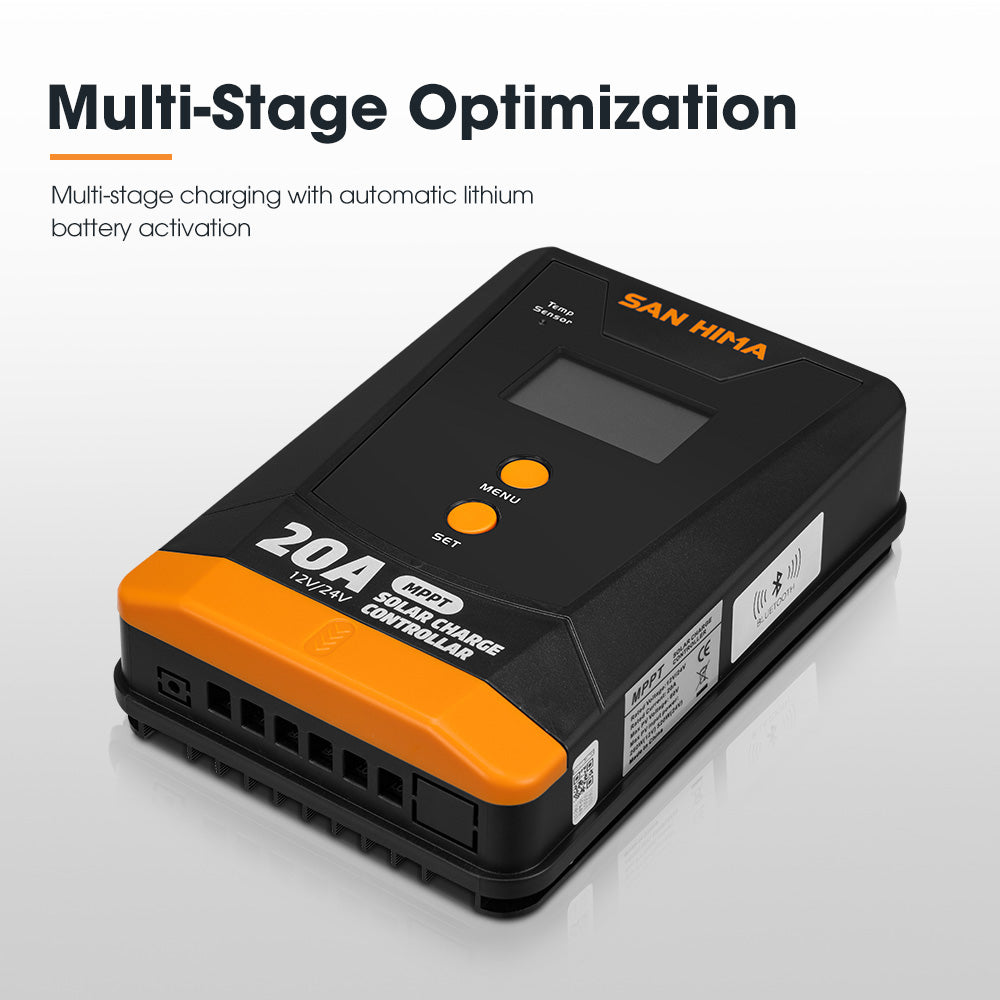

- Multi-Stage Charging: Our MPPT charge controller features multi-stage charging for various battery types, including automatic activation for lithium batteries.

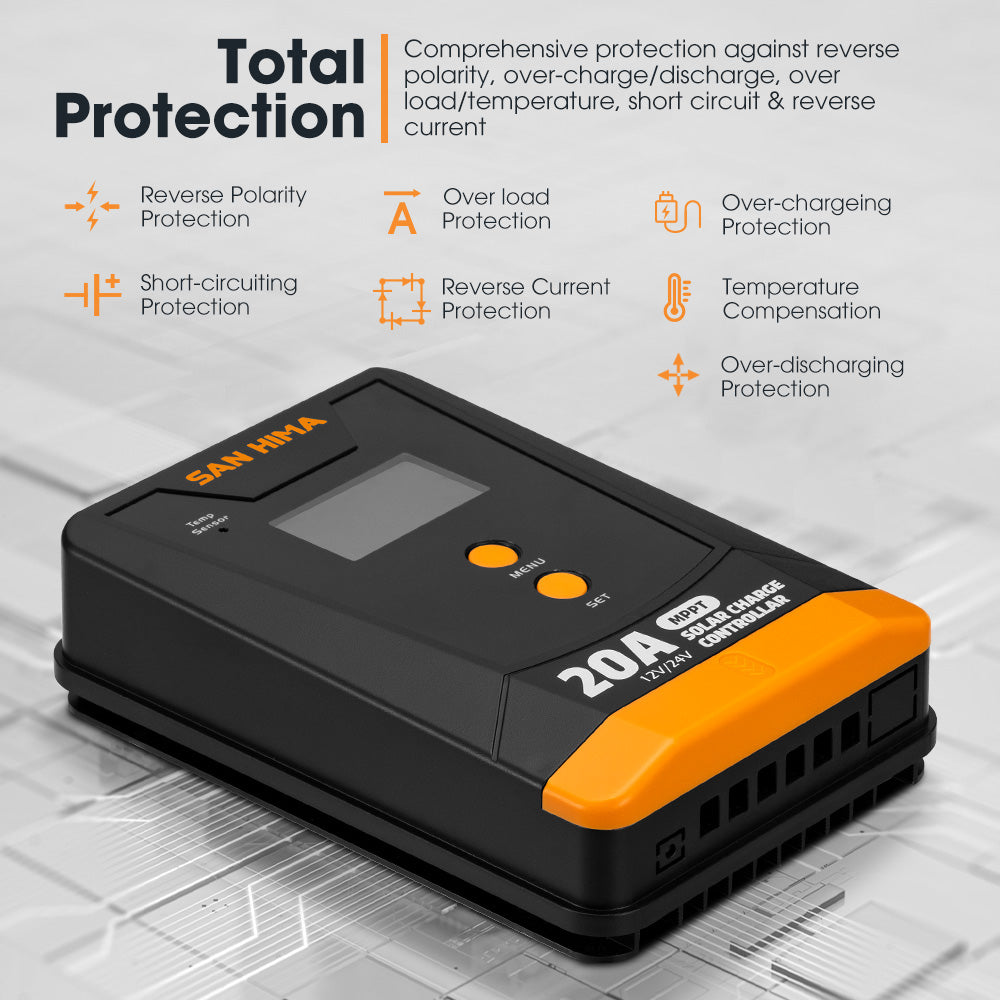

- Complete Protection: Our MPPT controller offers full protection against reverse polarity, over-charge/discharge, over load/temperature, short circuit & reverse current.
- Automatic Voltage Detection: Our MPPT lithium solar charge controller seamlessly detects 12V / 24V DC system voltages, offering effortless and user-friendly operation.

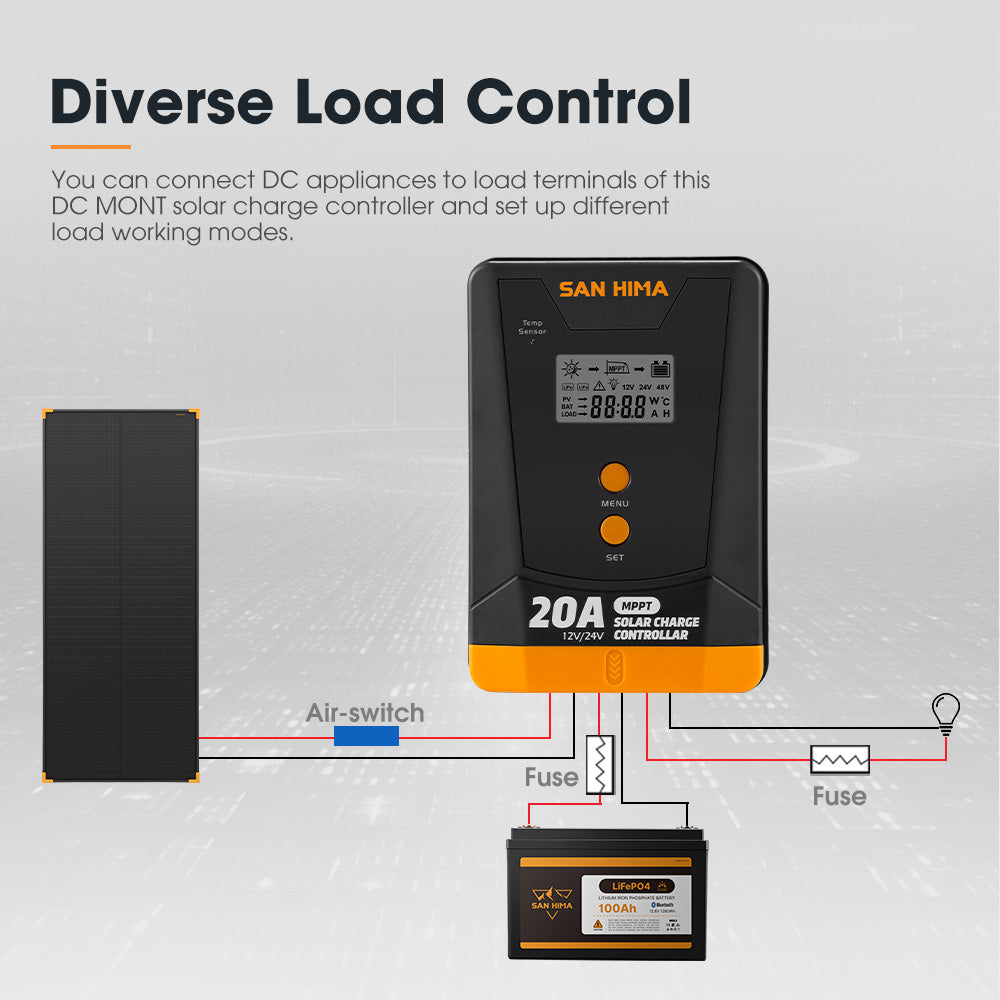

- Versatile Load Control: Connect DC appliances to the load terminals and configure various load working modes to suit your specific needs.

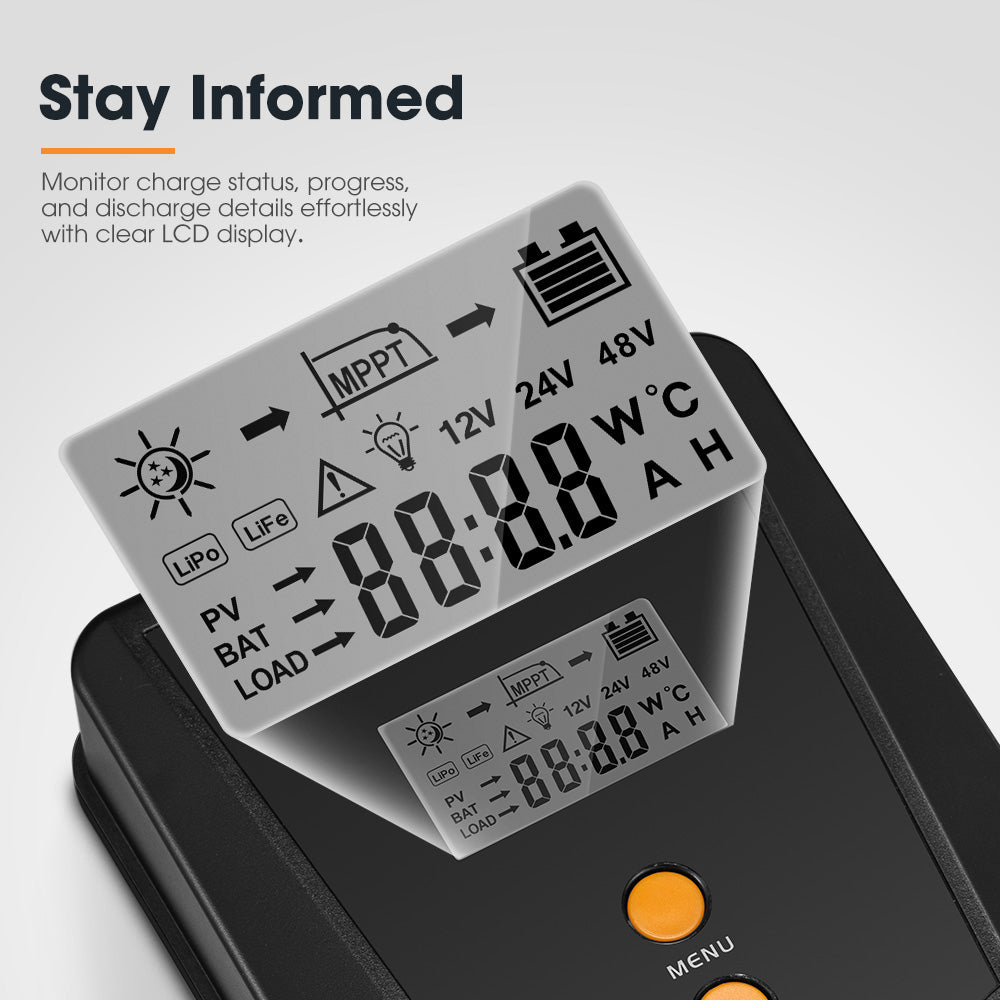

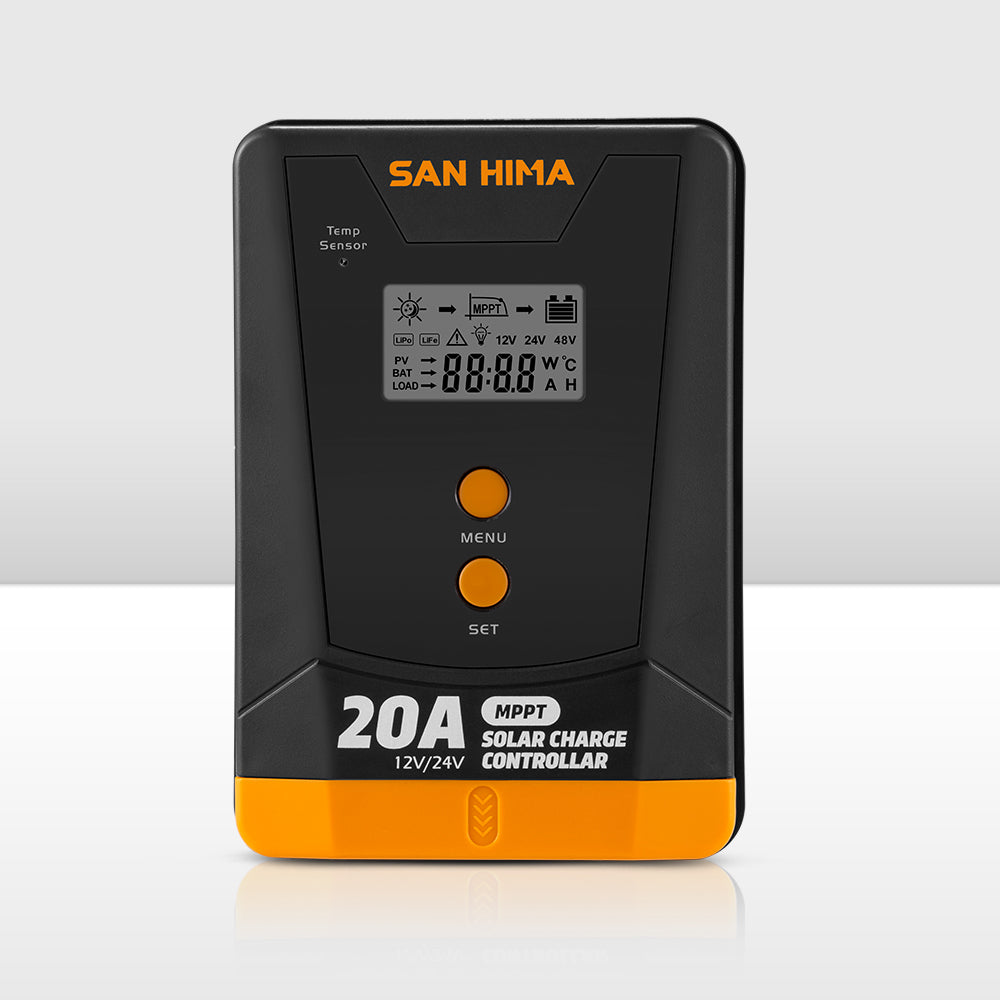

- Clear LCD Display: Our MPPT solar controller features an easy-to-read LCD screen that enables easy viewing of charge status, progress, and discharge details for your setup.
- Enhanced Heat Dissipation: The dense aluminium heat sinks effectively dissipate heat, ensuring maximum charging efficiency and the safety of components.
Electrical | |
System Voltage: | 12V/24V Auto Recognition |
Rated Battery Current: | 20A |
Rated Load Current: | 20A |
Battery Voltage: | 8~32V |
Max. Solar Input Voltage: | 60V |
Max. Solar Input Power: | 12V / 260W, 24V / 520W |
Self-Consumption: | ≤50mA @ 12V/24V |
Temp Compensation: | -4mV/℃/2V/(25℃) |
General | |
Max. Terminal Size: | 10mm² / 7AWG |
Working Temperature: | -20~55°C |
Storage Temperature: | -30~80°C |
Humidity Range: | ≤90%, No Condensation |
Enclosure: | IP32 |
Altitude: | ≤ 3,000m |
Certification: | IEC, LVD |

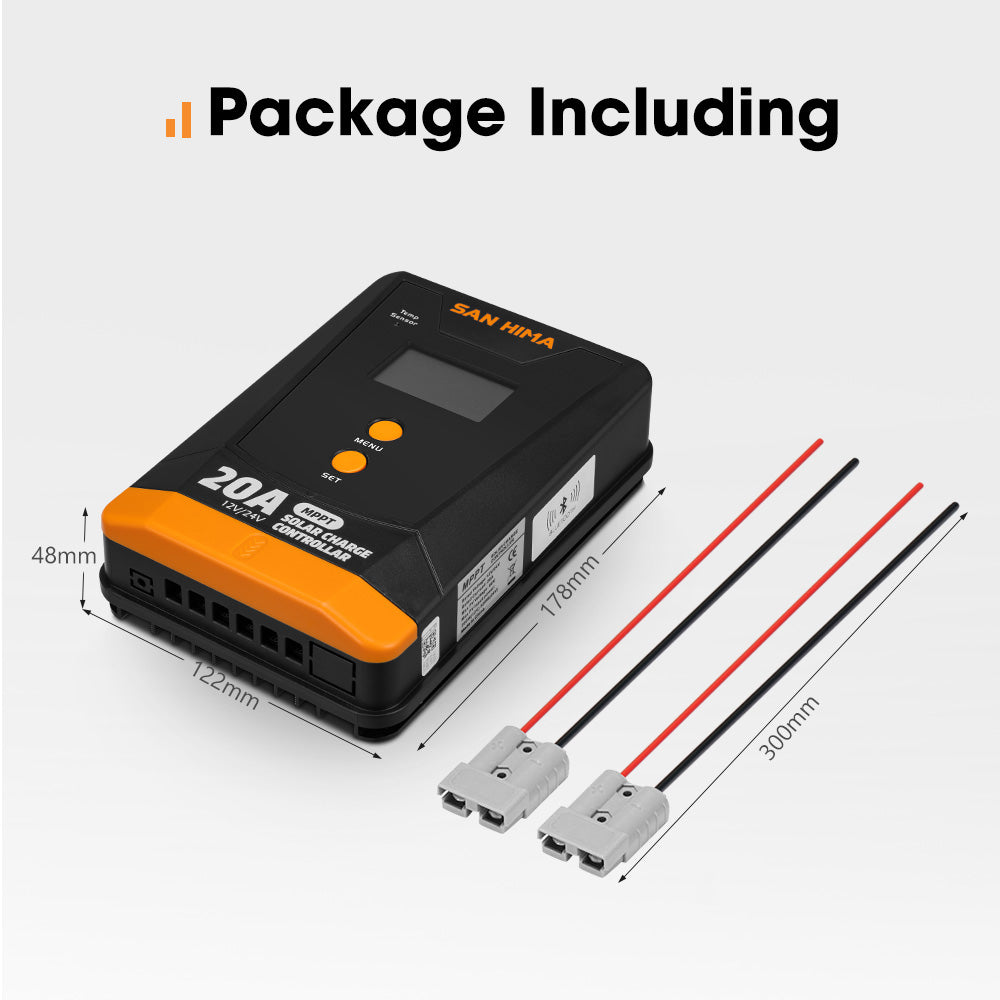

Package Size: | 21.5x14.5x7.5cm |
Gross Weight: | 0.8kg |
