San Hima 2X 170W PERC Solar Panel Kit Mono Multi-busbar Bypass Diode
Sustainability features
This product has sustainability features recognised by trusted certifications:
Contains at least 50% recycled material.
Made with chemicals safer for human health and the environment.
Manufactured on farms or in facilities that protect the rights and/or health of workers.
Certification Body
Intertek
Certification number
TE-00299281
Please note: This is a pre-sale product and will be shipped on 27 Jan.
FREE SHIPPING ZONE
We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.
San Hima 2X 170W PERC Solar Panel Kit Mono Multi-busbar Bypass Diode
Regular price$369.95
Sale price$314.46 -15% (/)
Description
Adventure is unpredictable, but your power supply doesn’t have to be. At just 5 mm thick, the San Hima ultra slim solar panel fits seamlessly onto your roof, barely adding any height at all. Its low-profile design is barely noticeable from the side, giving you the freedom to navigate low-clearance spots with ease.
With Grade-A monocrystalline cells, this panel brings a solid 25% conversion efficiency, meaning you’ll get more juice from every bit of sunlight. Plus, PERC technology reflects stray light back into the panel, ensuring maximum energy capture. Multi-Busbar technology means your panel keeps working—even if one cell gets damaged. And thanks to the bypass diodes, you don’t have to worry about partial shading slowing you down either. Looking to build a bigger system? You can link up to 8 panels in series or 4 in parallel. The tempered glass is built to withstand impacts, while the lightweight aluminum frame keeps it sturdy without weighing you down.
Features
Features
- Incredibly Lightweight: Weighing just 6.4 kg, our San Hima 170W ultra slim fixed solar panel won’t weigh your vehicle down or cut into fuel efficiency.
- Ultra-Slim Build: At just 5 mm thick, it sits low on your 4WD, reducing wind resistance and keeping overall height down so you can squeeze into those tight spots.

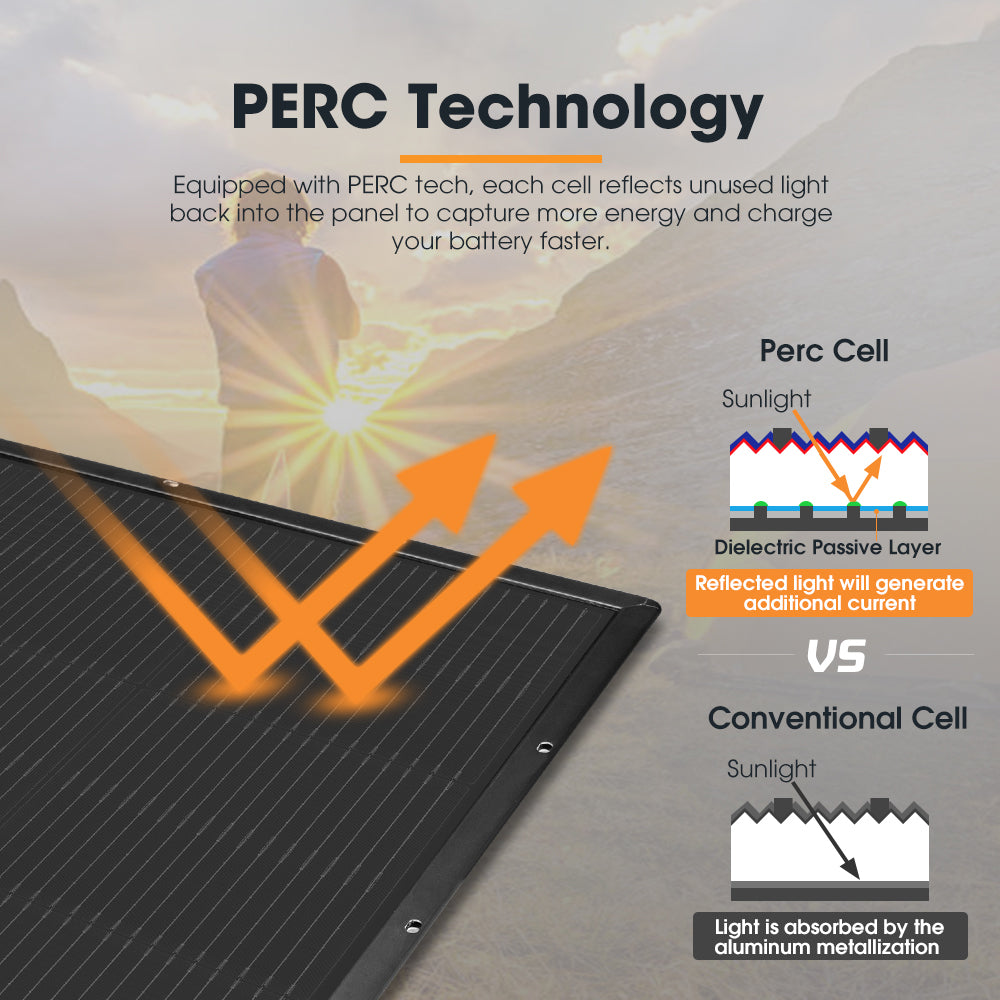

- PERC Technology: Equipped with PERC tech, each cell reflects unused light back into the panel to capture more energy and charge your battery faster.

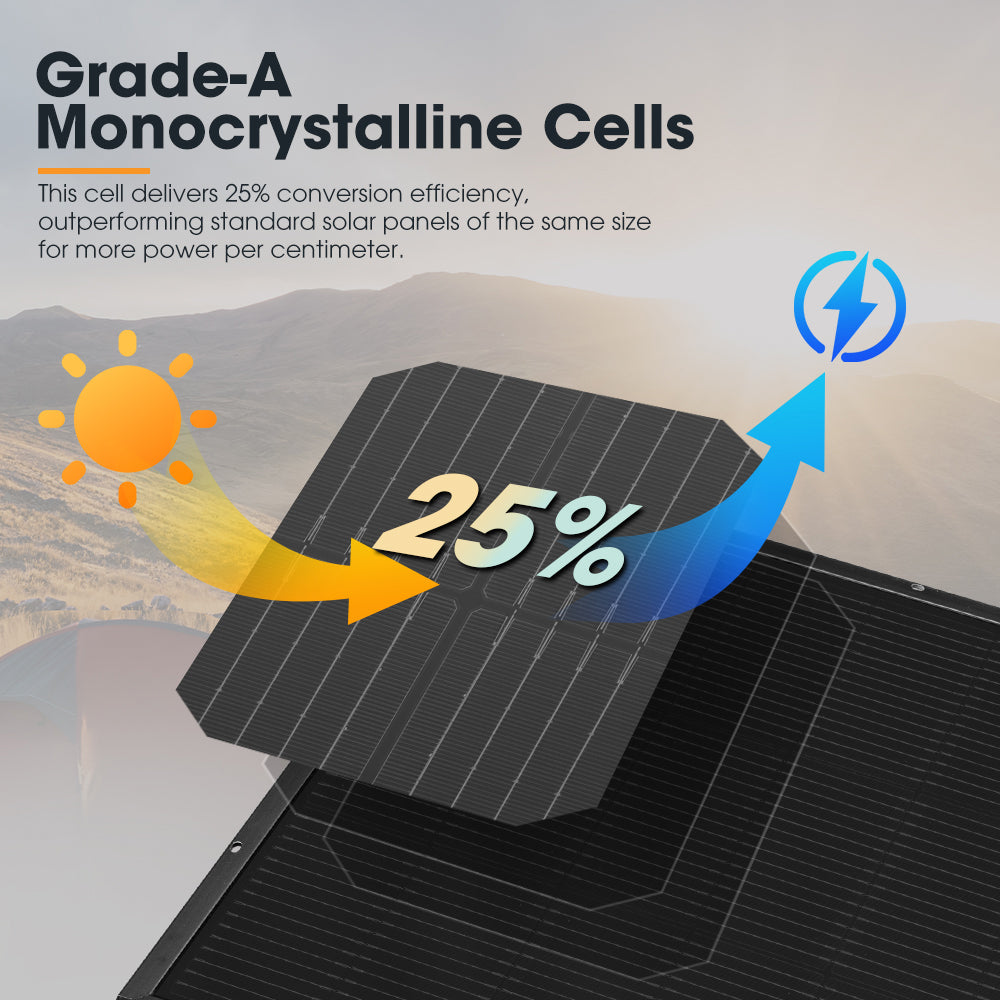

- Grade-A Monocrystalline Cells: This cell delivers 25% conversion efficiency, outperforming standard solar panels of the same size for more power per centimeter.

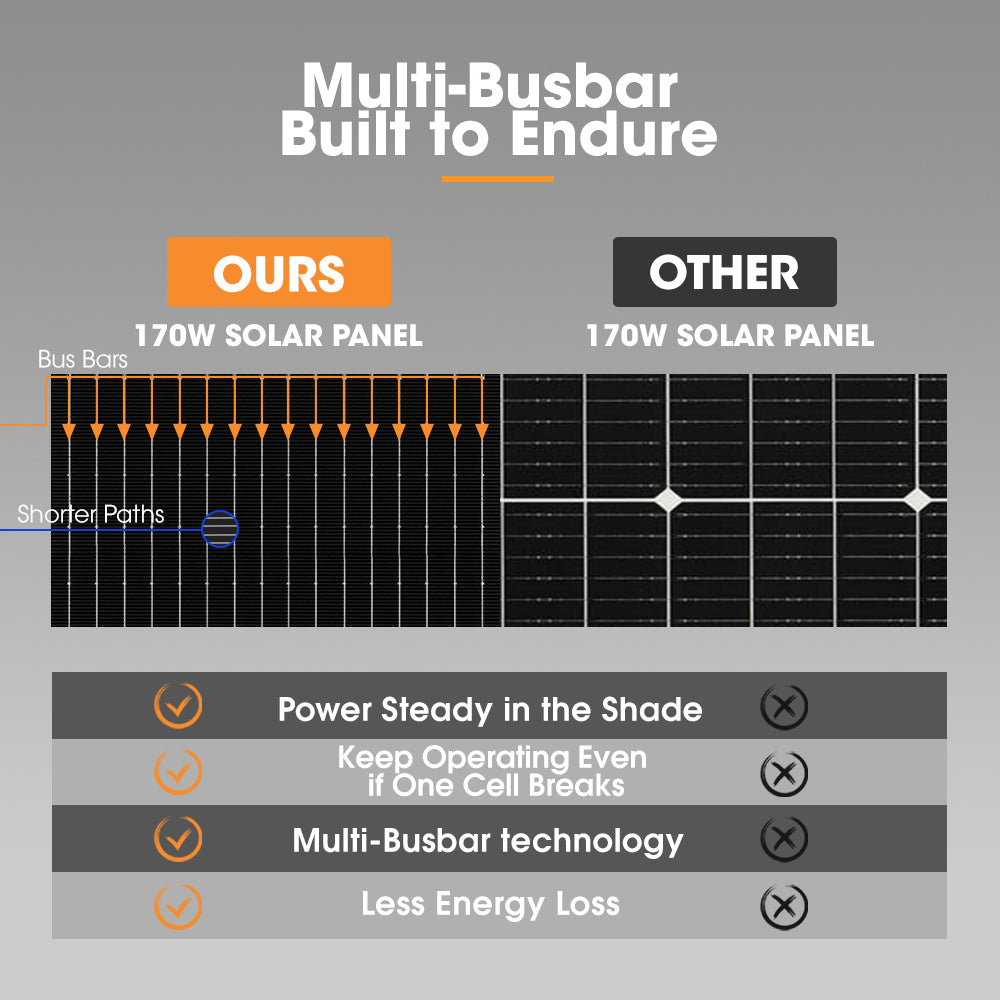

- Multi-Busbar Technology: Shorter electrical paths mean less power loss and higher output. Even if one cell breaks, energy can still be captured by other busbars.
- Series or Parallel Ready: Connect up to 8 panels in series or 4 in parallel for more output—rated up to 1,000V DC, perfect for powering larger setups.

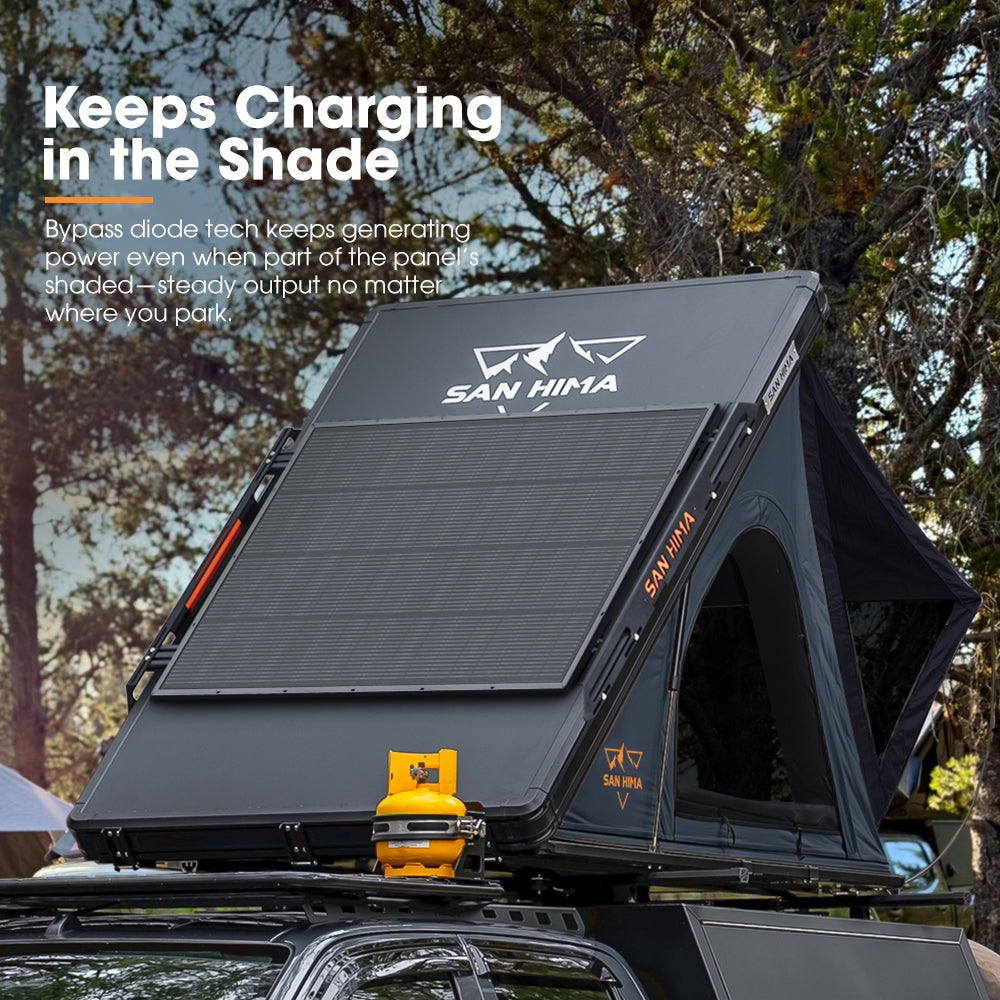

- Bypass Diode Technology: Keeps generating power even in partial shade—ideal for rooftop installs where sunlight shifts through the day.
- Built Tough: From impact-resistant tempered glass to a slim but sturdy aluminum frame and IP68 protection, this panel is ready for whatever the outdoors throws at it.

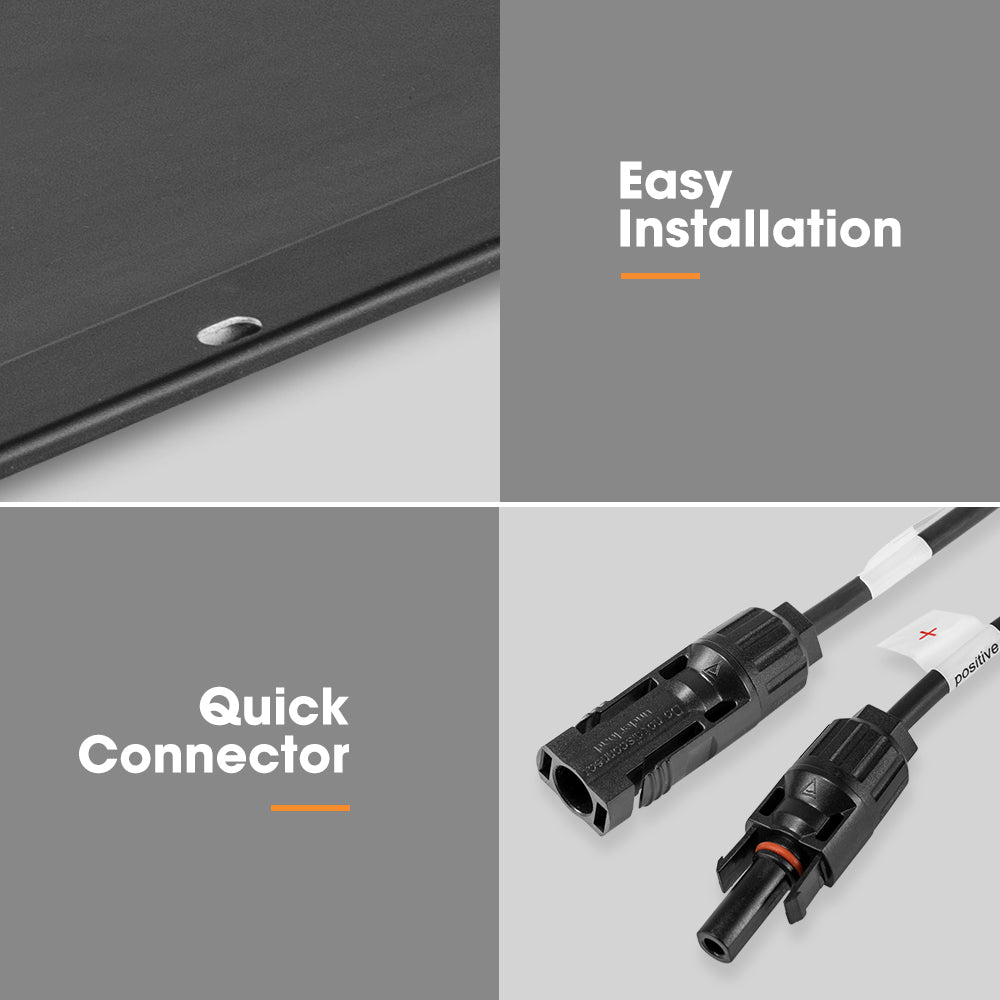

- Easy Mounting: Our San Hima 170W ultra slim fixed solar panel also comes with brackets and rubber pads for quick, secure, and hassle-free installation.

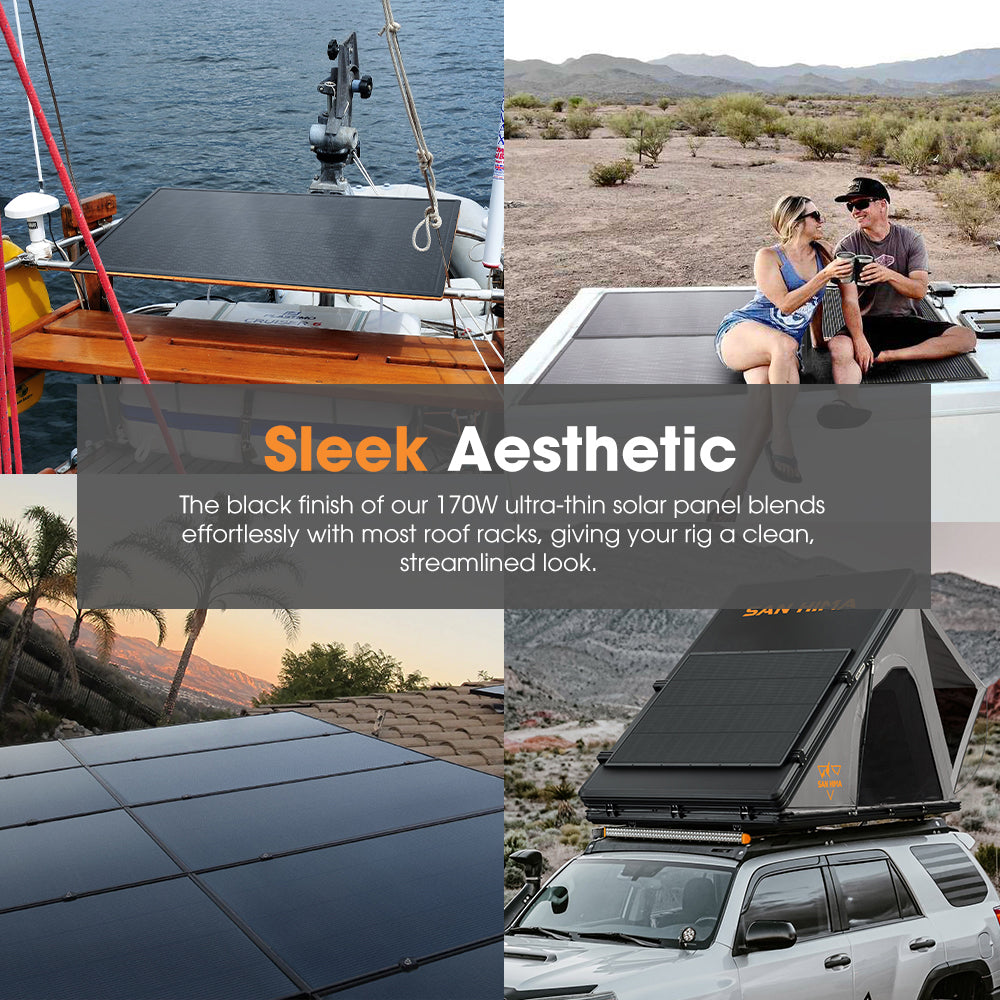

- Sleek Aesthetic: The black finish of our 170W ultra-thin solar panel blends effortlessly with most roof racks, giving your rig a clean, streamlined look.
FAQs
Specifications
| Solar Cell Type: | Grade-A Monocrystalline Cells |
| Max. Power: | 170W |
| Open Circuit Voltage (VOC): | 26.58V |
| Short Circuit Current(ISC): | 8.23A |
| Max Power Voltage (VMP): | 24.29V |
| Max Power Current (IMP): | 7.69A |
| Module Efficiency: | 25% |
| Maximum System Voltage: | 1,000V |
| Maximum Series Fuse Rating: | 50A |
| IP Rating: | IP-68 |
| Operating Temperature: | -20℃~75℃ |
| Nominal Operating Cell Temperature (NOCT): | 40℃ |
| Power Tolerance: | ±10% |
| Output Tolerance: | ±10% |
| Front: | Tempered Glass |
| Connector: | MC4 |
| Certifications: | CE, FCC, PSE, RoHS |
| Package Size(Single): | 124.5 x 85.6 x 6.5 cm(LxWxH) |
| Product Weight(Single): | 6.4 kg (panel) / 6.7 kg (total) |
Package Includes

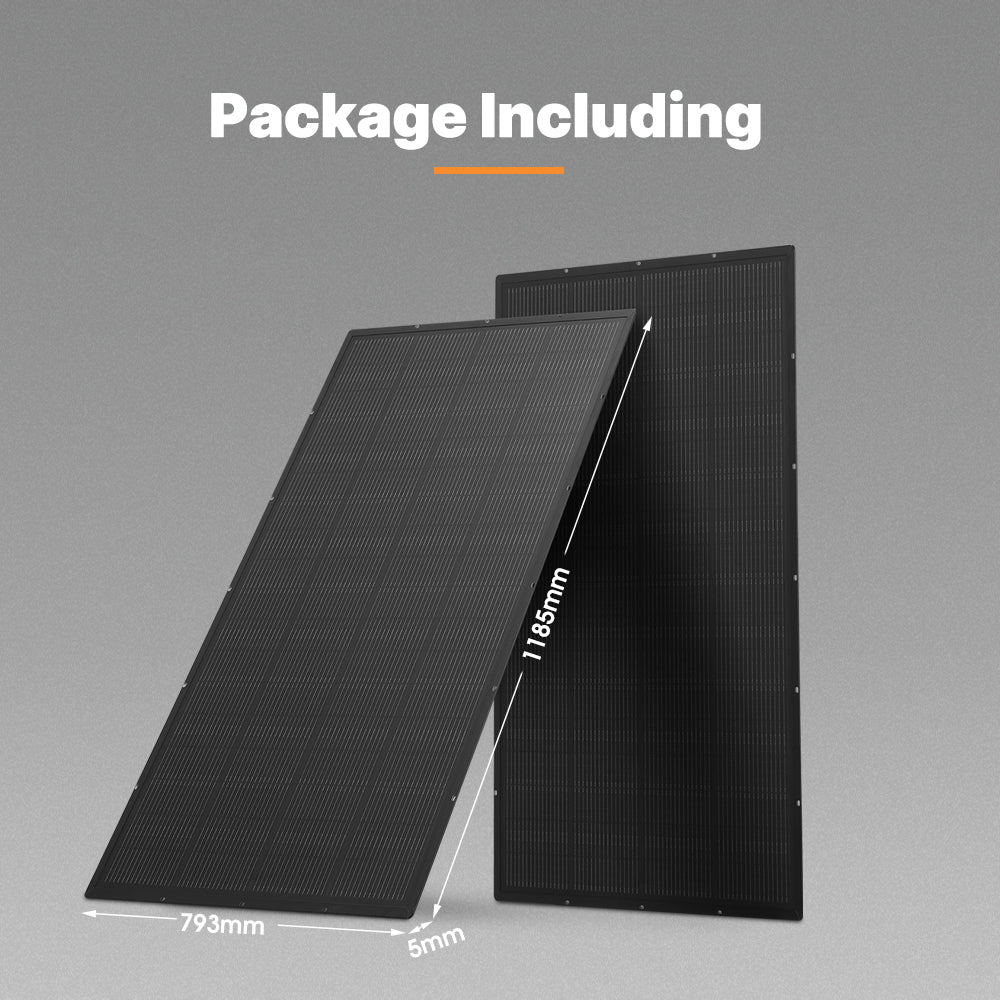

- 2 x San Hima 170W Ultra Slim Fixed Solar Panels
- Set Of Mounting Kit
- 2 x User Manuals
Warranty
3 Years Warranty
GTIN
0757117061355
