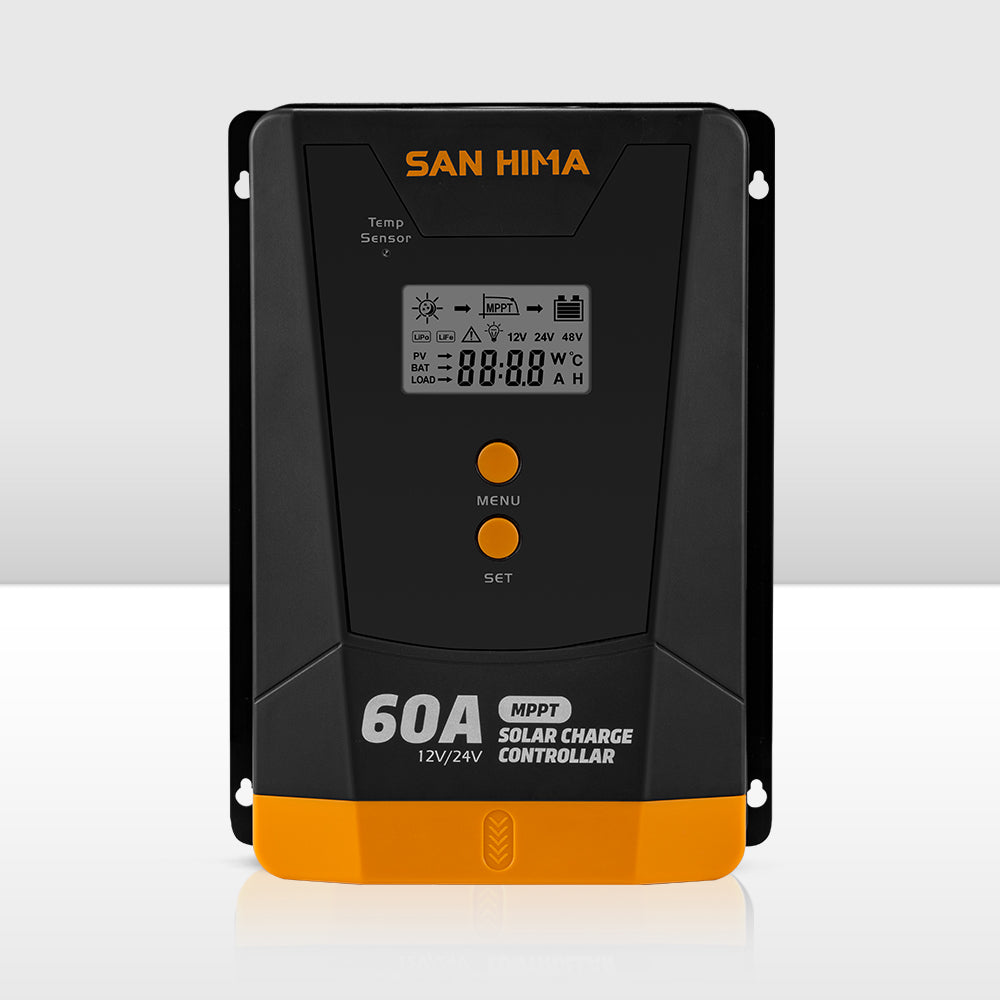

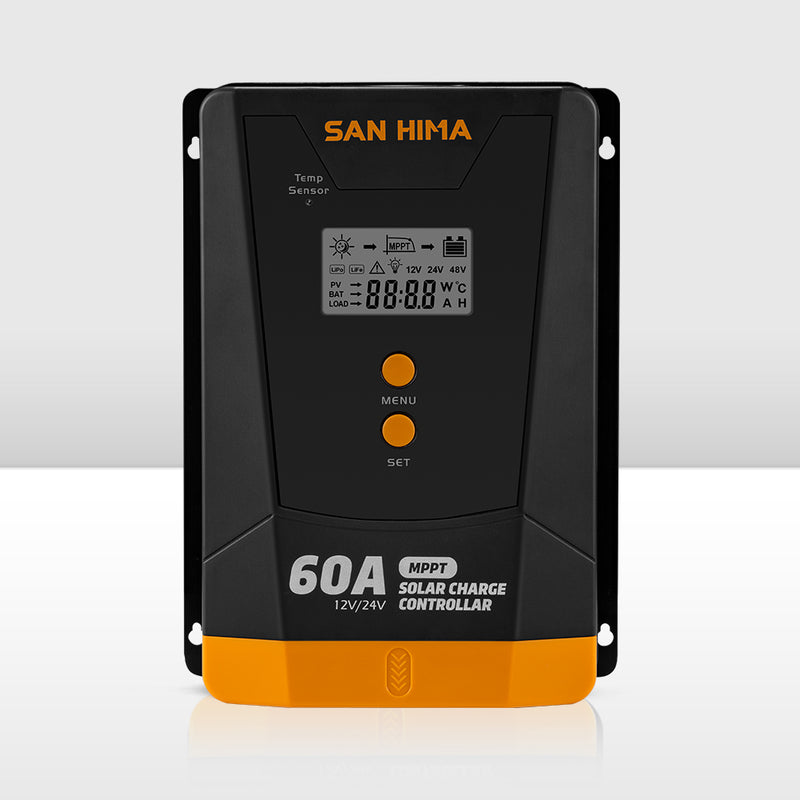

San Hima MPPT Solar Charge Controller 12V 24V LCD Display Inbulit Bluetooth
Sustainability features
This product has sustainability features recognised by trusted certifications:
Contains at least 50% recycled material.
Made with chemicals safer for human health and the environment.
Manufactured on farms or in facilities that protect the rights and/or health of workers.
Certification Body
Intertek
Certification number
TE-00299281
FREE SHIPPING ZONE
We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description
Features
- Efficient MPPT Technology: Our MPPT solar charge controller achieves exceptional tracking efficiency of 99.5% and its peak conversion efficiency reaches 98%.
- Accurate Charging: An integrated temperature sensor measures ambient temperature in real-time to ensure precise temperature compensation during charging.

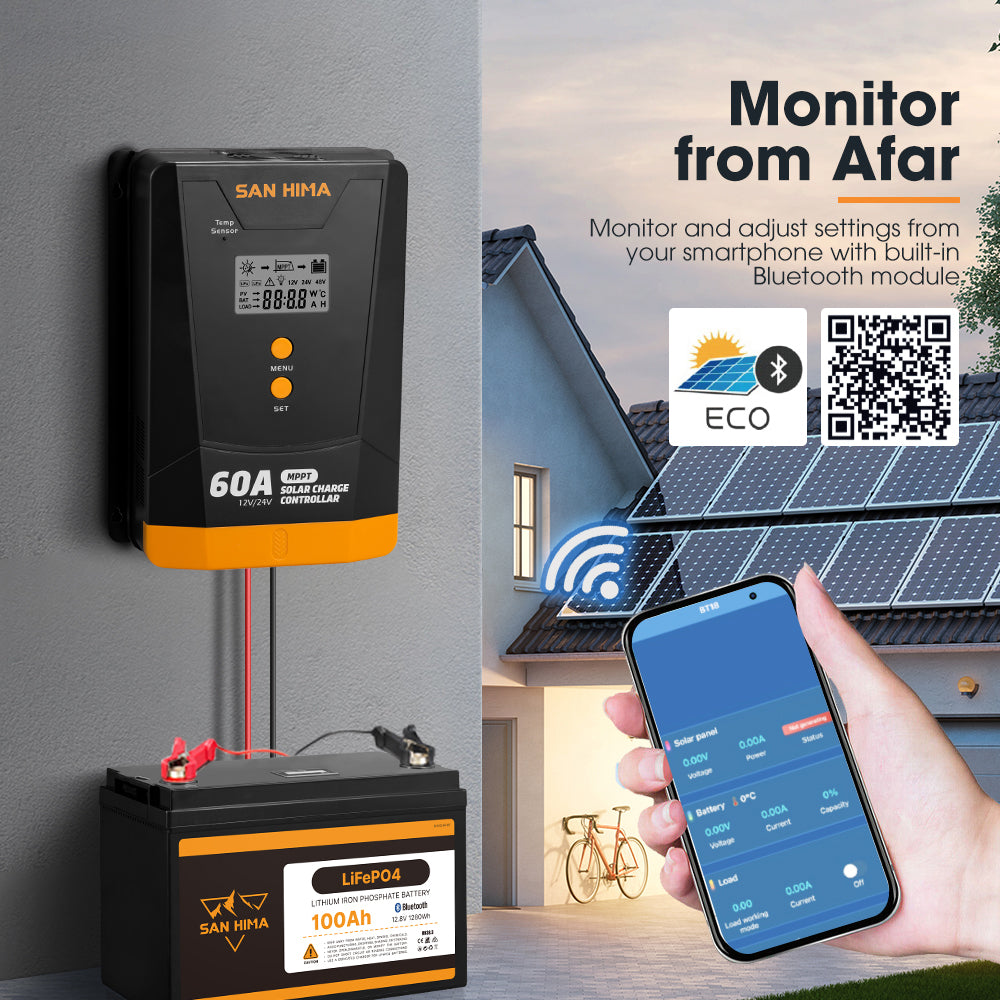

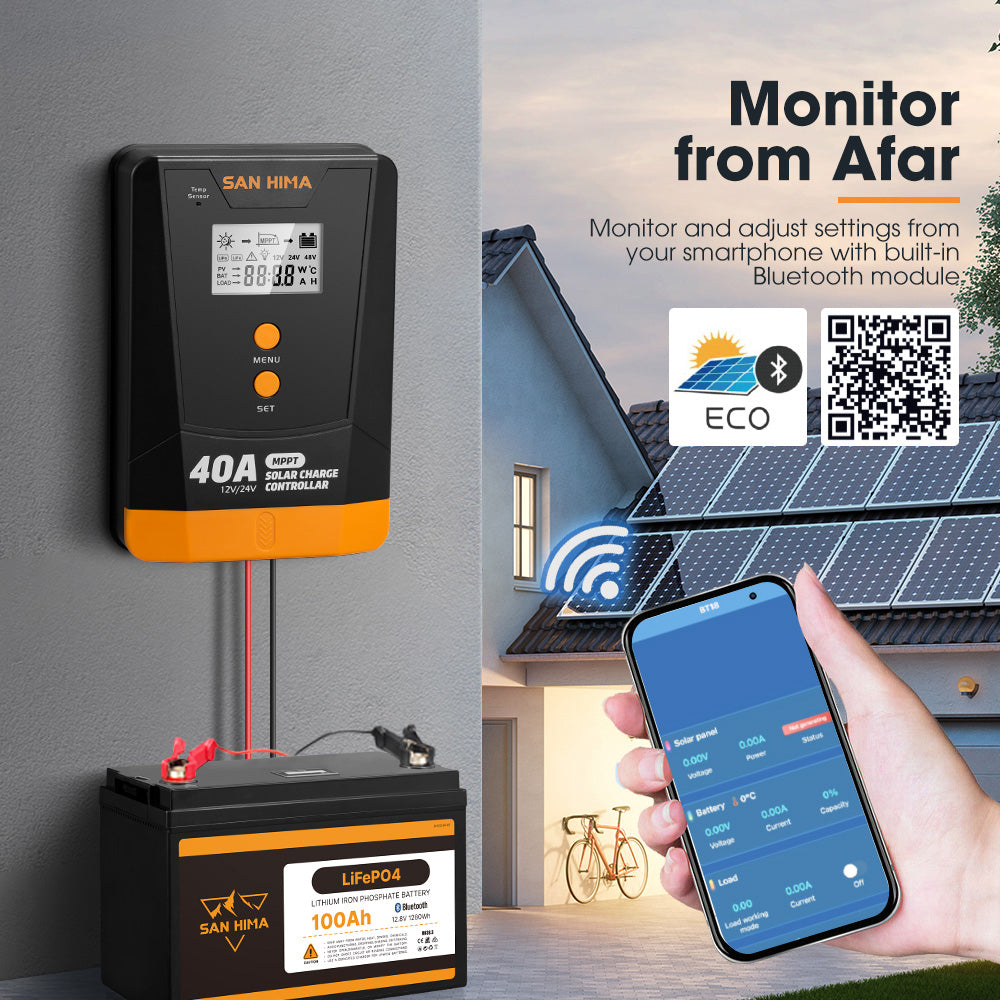

- Remote Monitoring: With built-in Bluetooth module, effortlessly monitor your system, access real-time data, and adjust parameters directly from your smartphone.

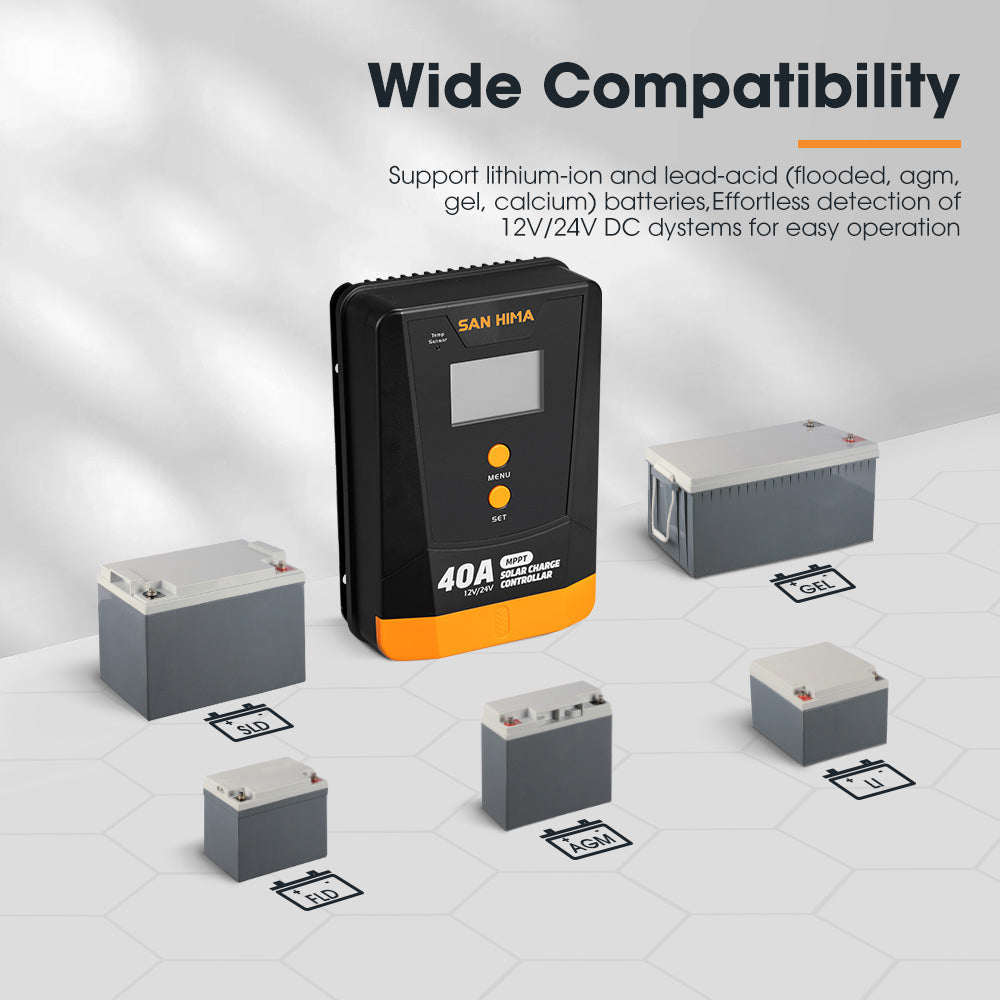

- Highly Compatible: Our MPPT controller supports diverse battery types including lithium-ion and lead-acid variants such as flooded, AGM, gel, and calcium batteries.

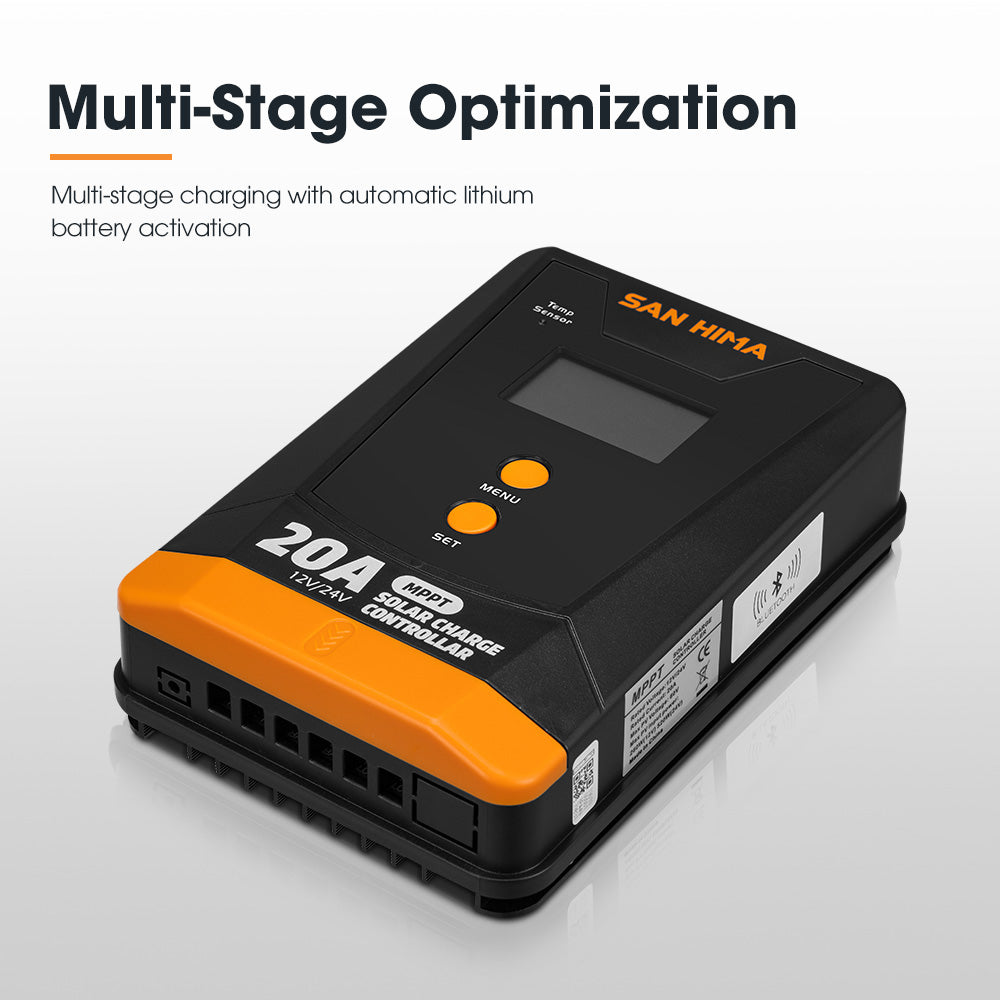

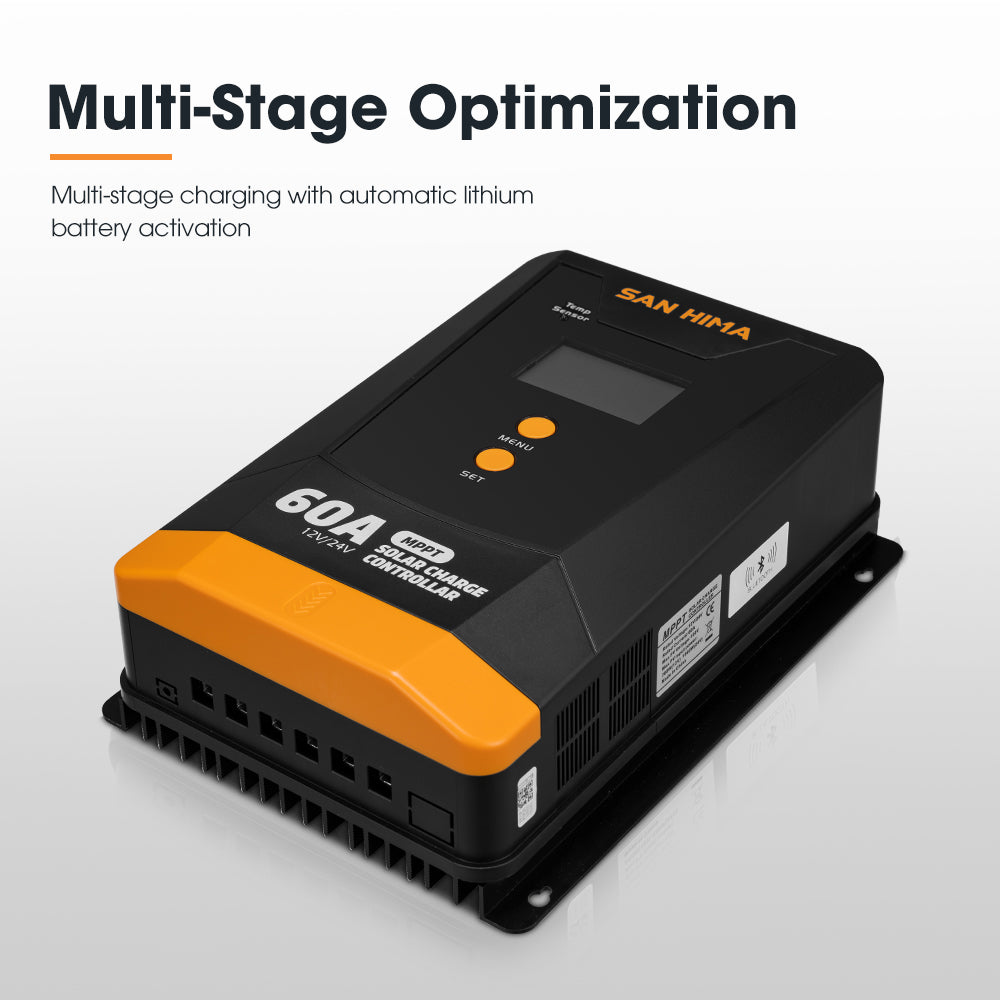

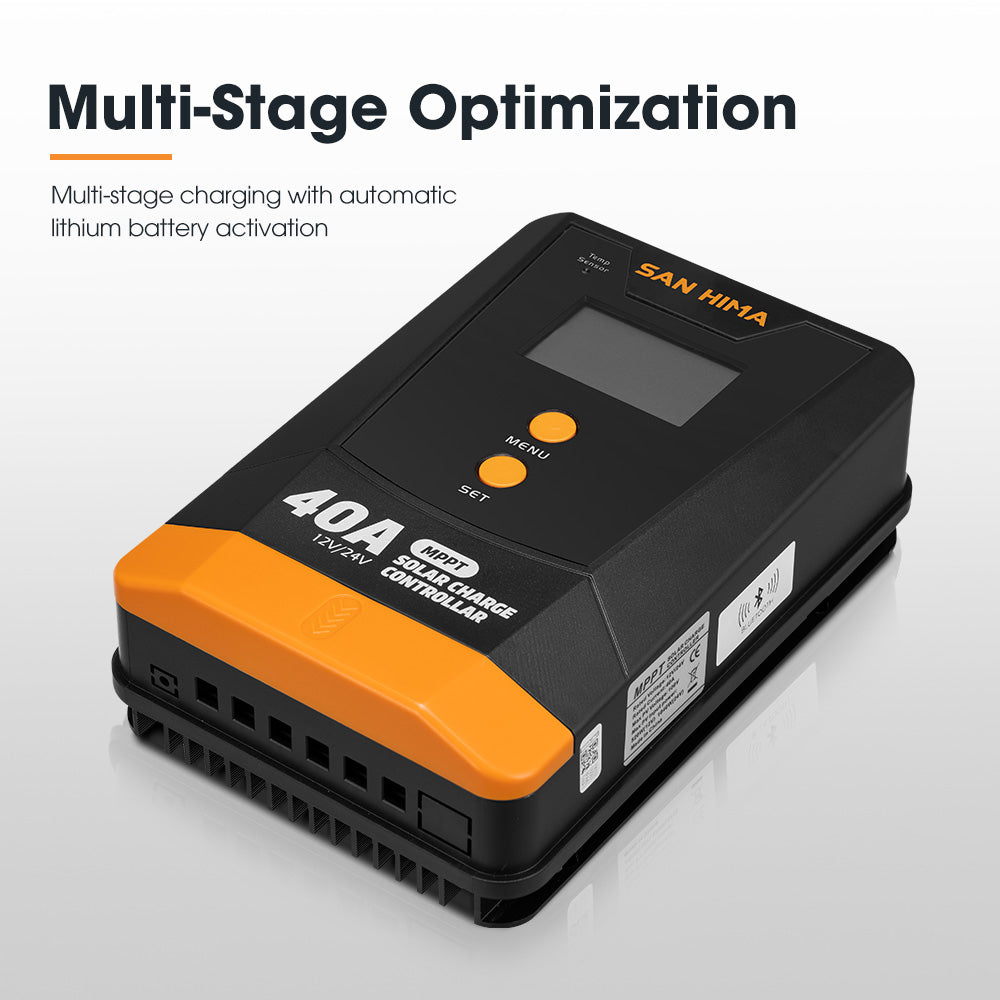

- Multi-Stage Charging: Our MPPT charge controller features multi-stage charging for various battery types, including automatic activation for lithium batteries.

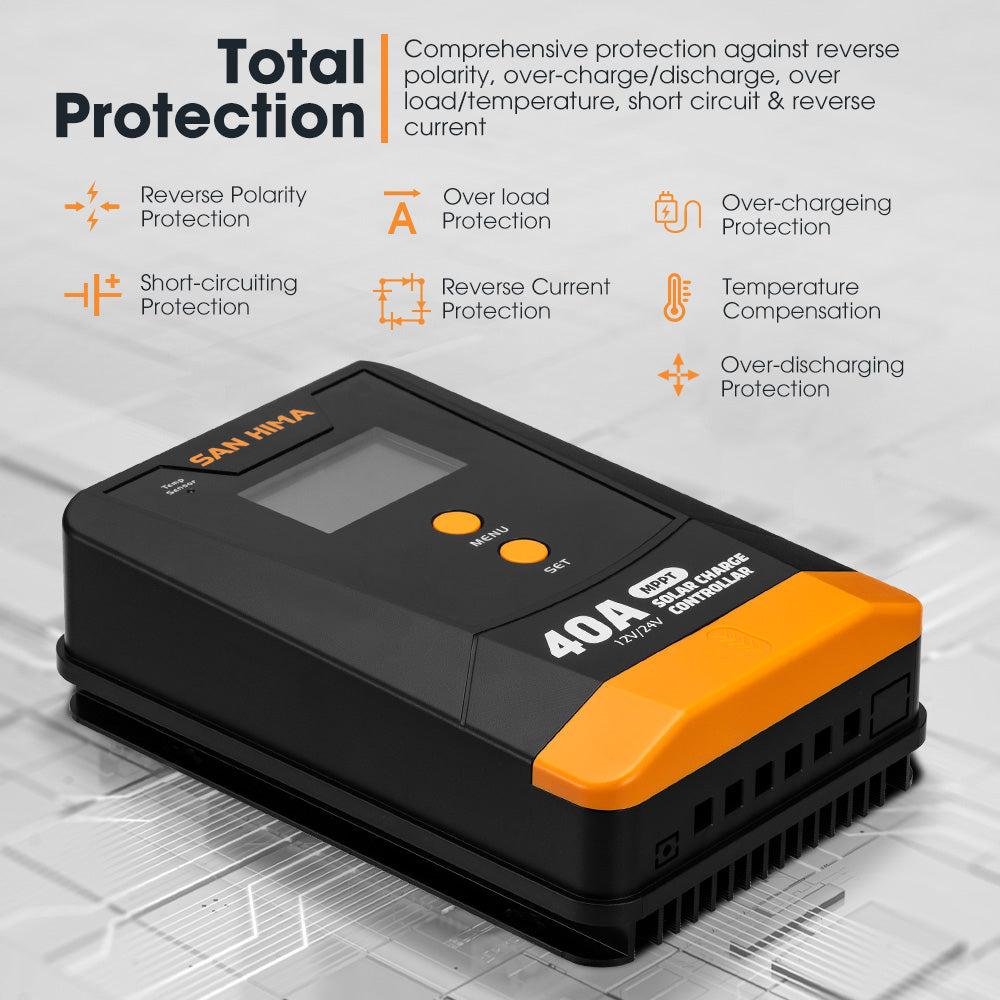

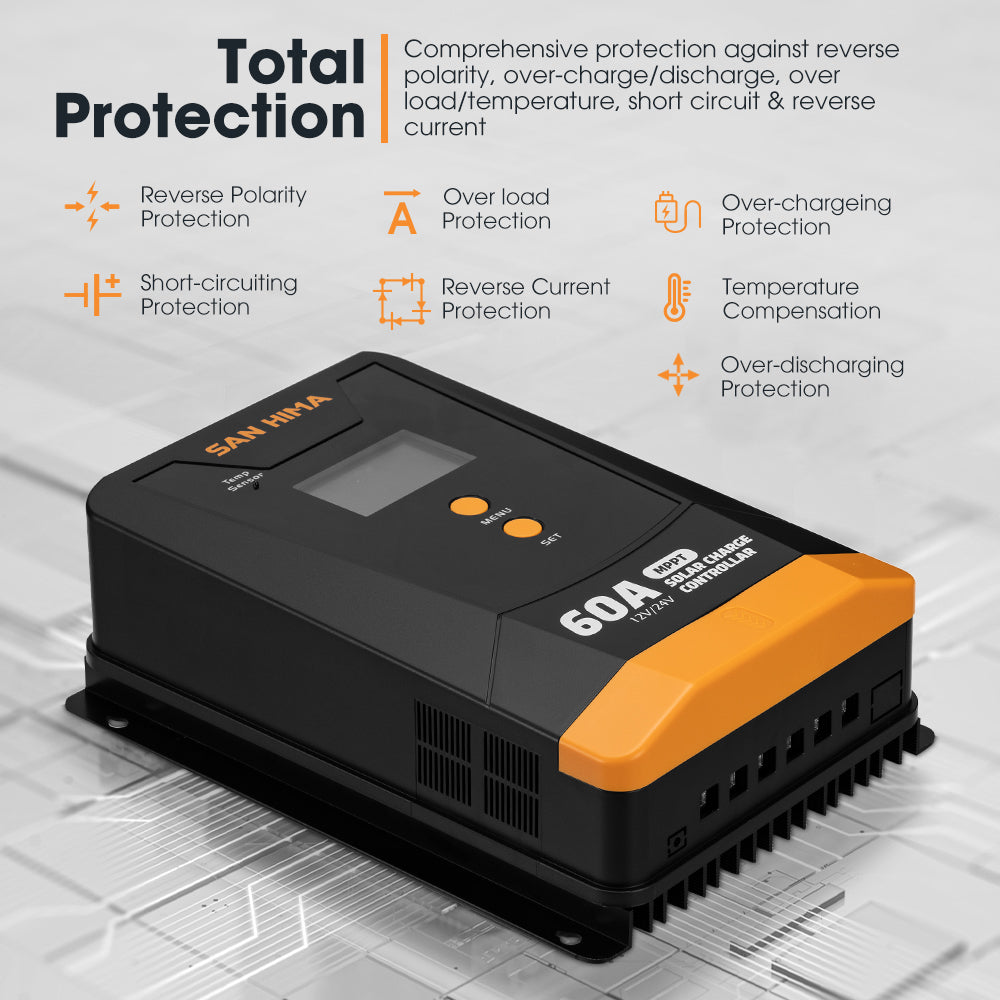

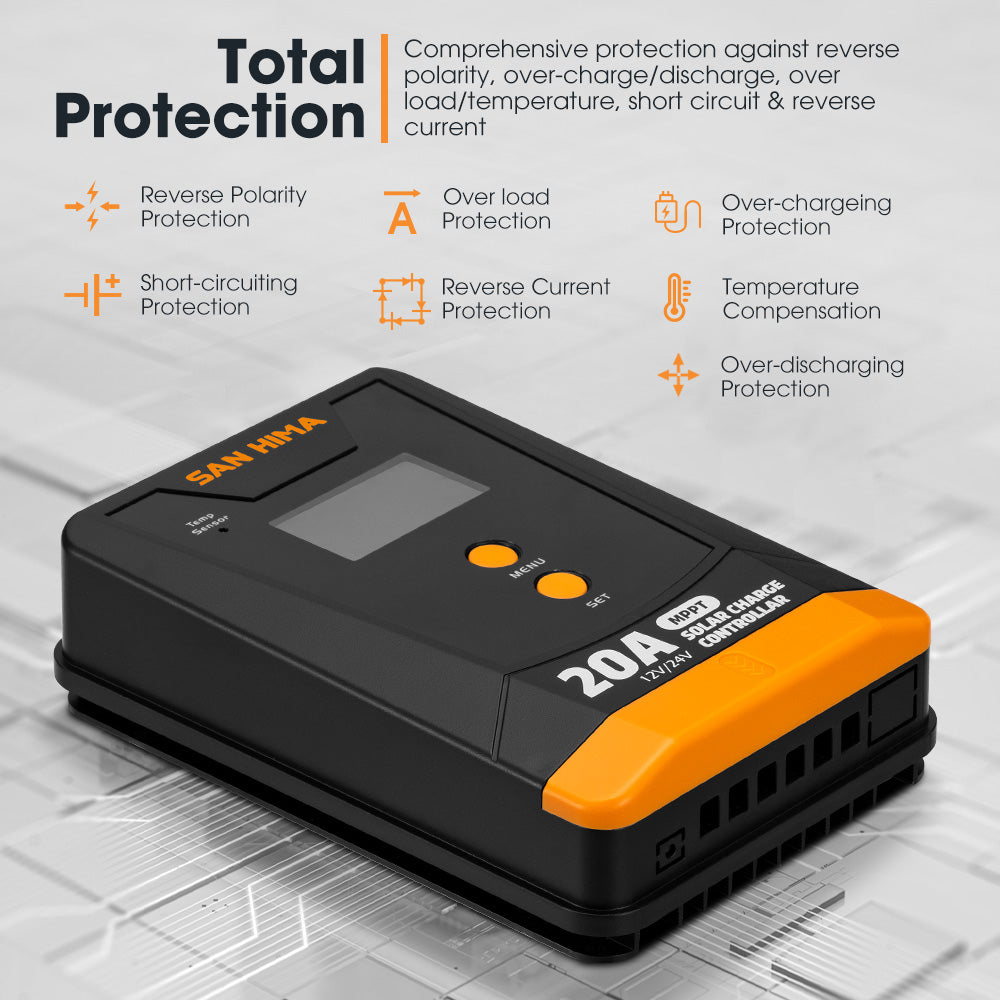

- Complete Protection: Our MPPT controller offers full protection against reverse polarity, over-charge/discharge, over load/temperature, short circuit & reverse current.
- Automatic Voltage Detection: Our MPPT lithium solar charge controller seamlessly detects 12V / 24V DC system voltages, offering effortless and user-friendly operation.

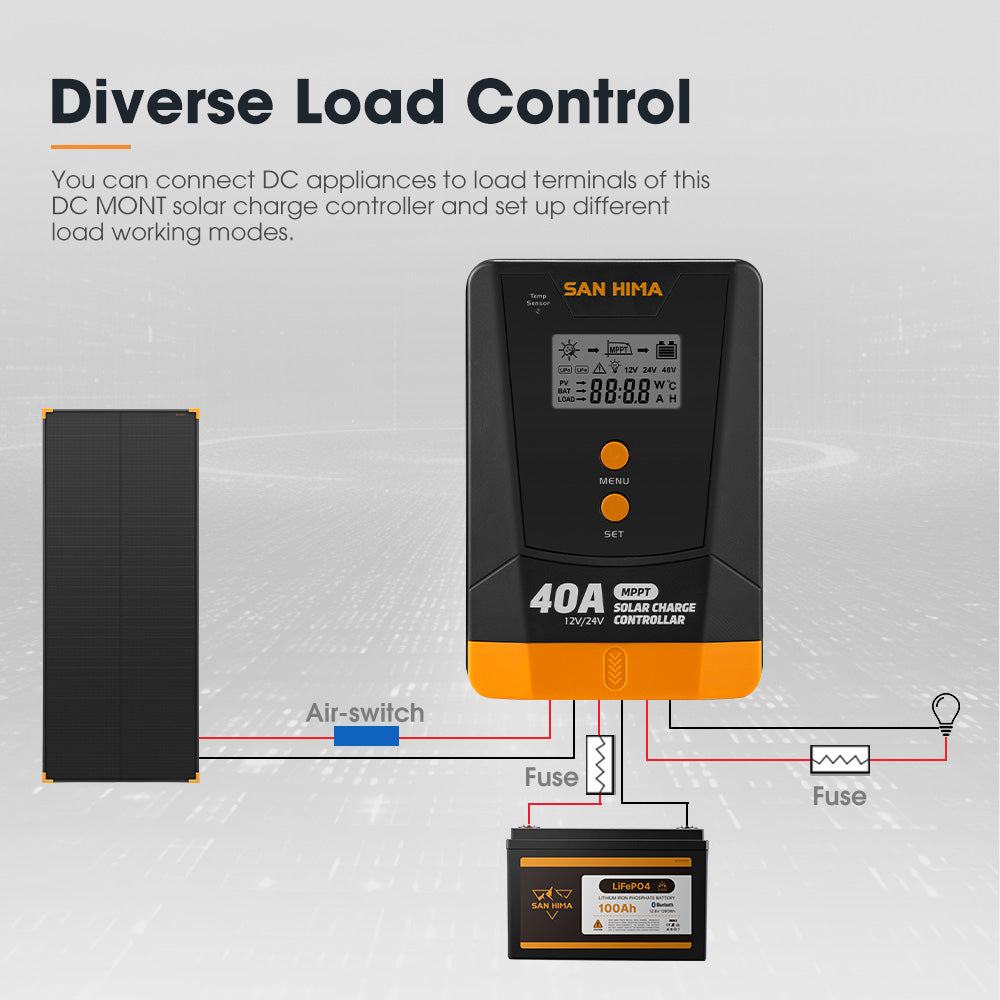

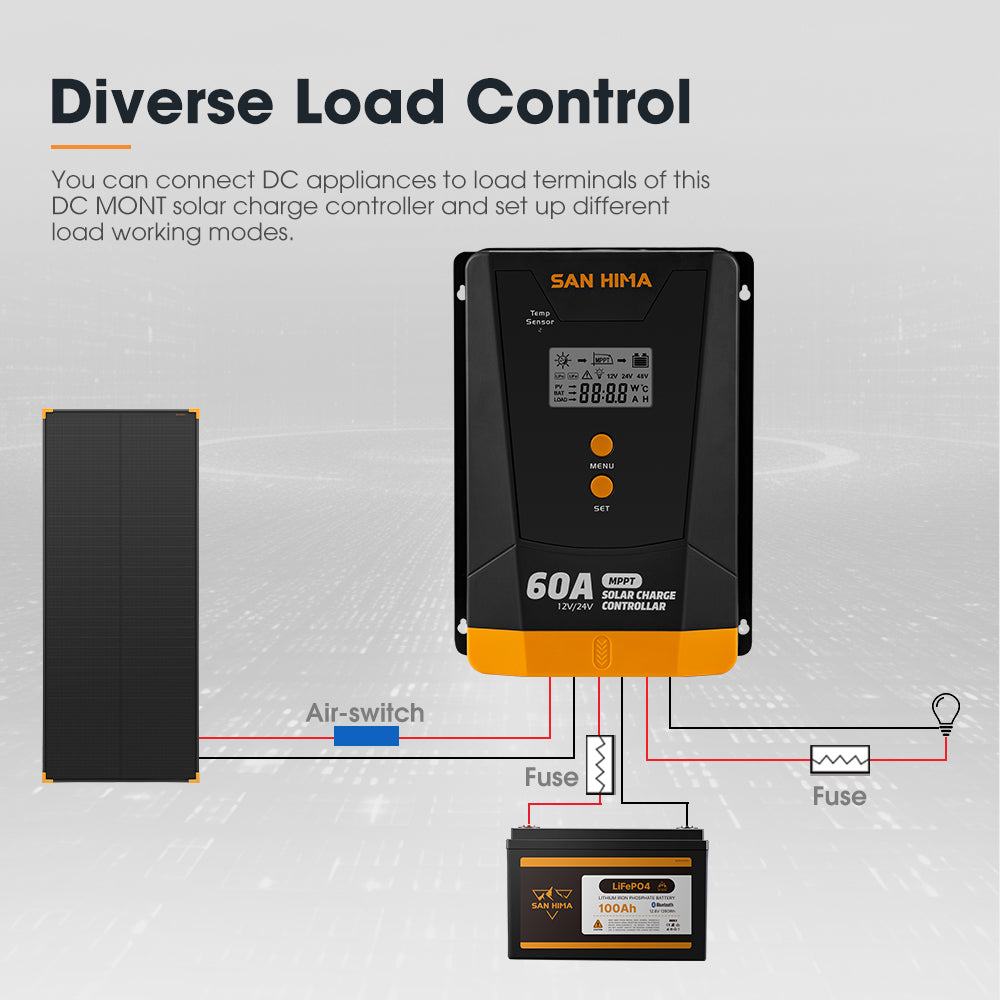

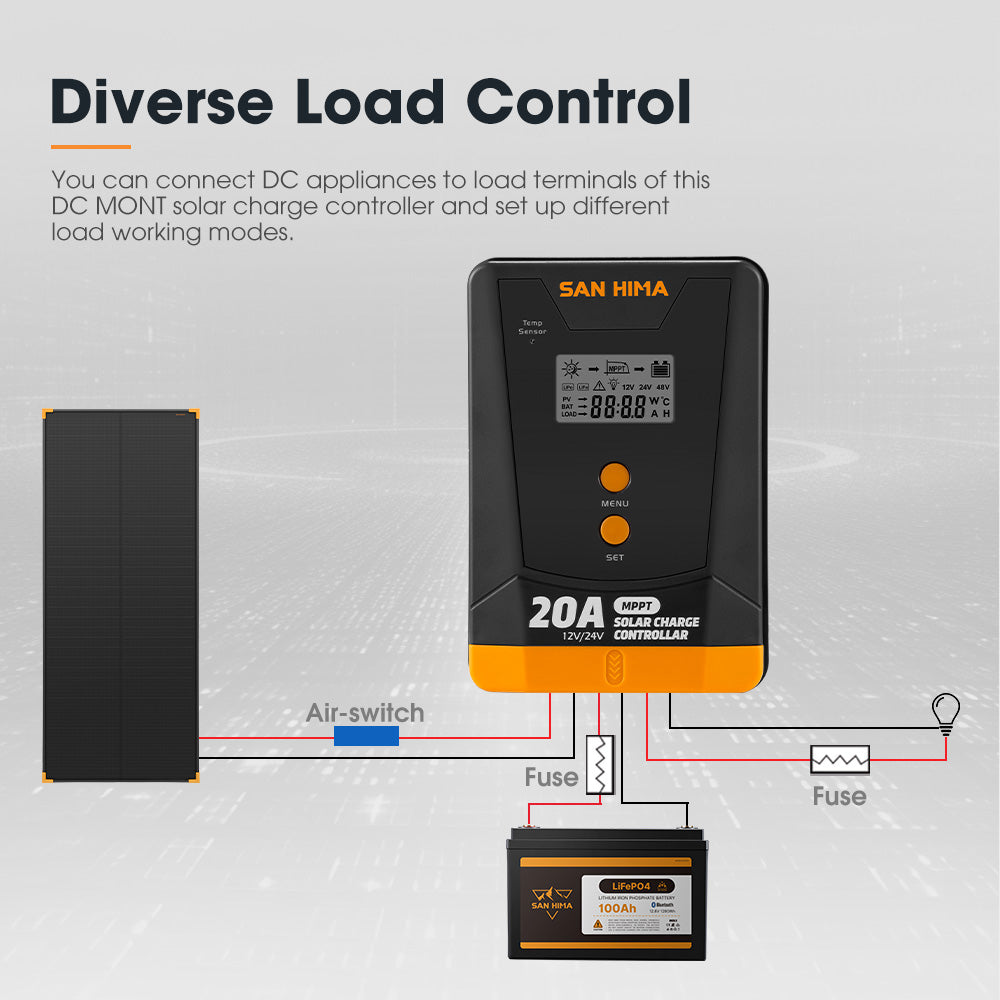

- Versatile Load Control: Connect DC appliances to the load terminals and configure various load working modes to suit your specific needs.

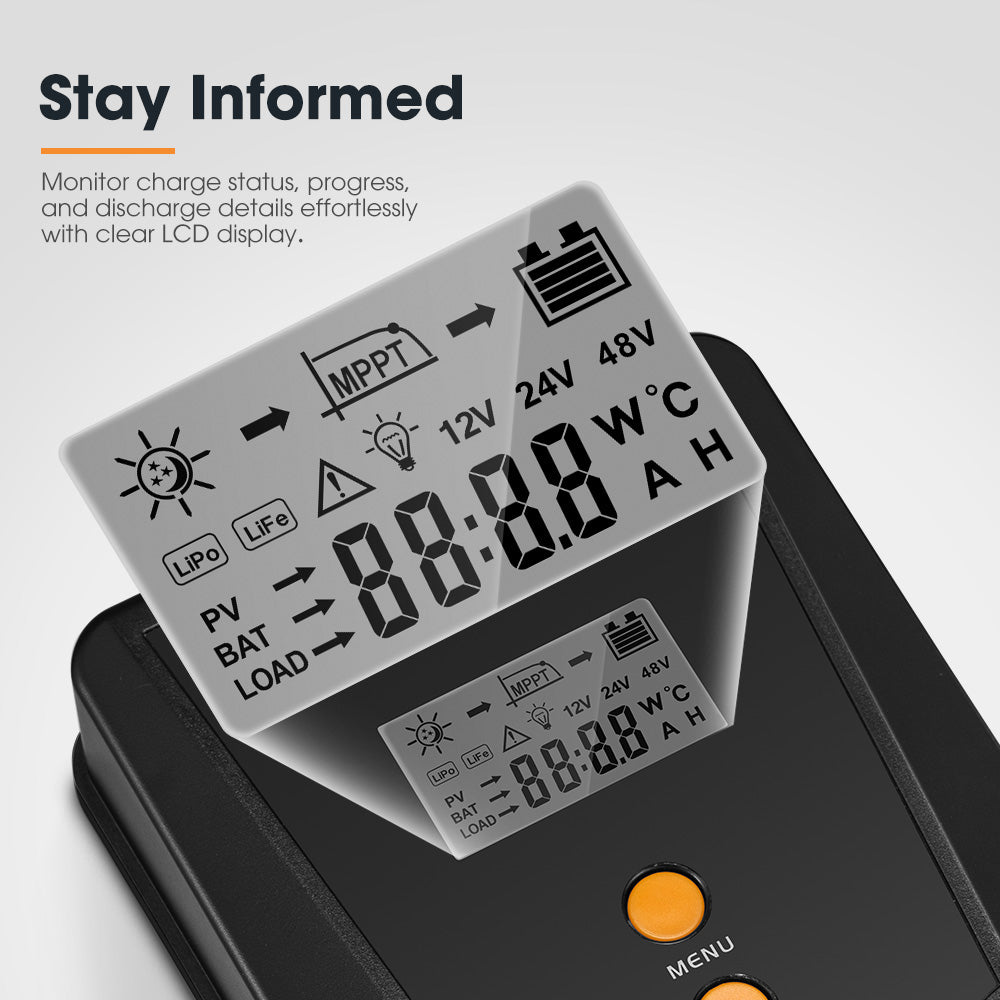

- Clear LCD Display: Our MPPT solar controller features an easy-to-read LCD screen that enables easy viewing of charge status, progress, and discharge details for your setup.
- Enhanced Heat Dissipation: The dense aluminium heat sinks effectively dissipate heat, ensuring maximum charging efficiency and the safety of components.
FAQs
Specifications
Electrical | |
System Voltage: | 12V/24V Auto Recognition |
Rated Battery Current: | 20A/40A/60A |
Rated Load Current: | 20A/30A/30A |
Battery Voltage: | 8~32V |
Max. Solar Input Voltage: | 60V/100V/100V |
Max. Solar Input Power: | 12V / 260W/520W/780W, 24V / 520W/1040W/1,560W |
Self-Consumption: | ≤50mA @ 12V/24V |
Temp Compensation: | -4mV/℃/2V/(25℃) |
General | |
Max. Terminal Size: | 10mm² / 7AWG,16mm² / 5AWG,25mm² / 3AWG |
Working Temperature: | -20~55°C |
Storage Temperature: | -30~80°C |
Humidity Range: | ≤90%, No Condensation |
Enclosure: | IP32 |
Altitude: | ≤ 3,000m |
Certification: | IEC, LVD |
Package Size: | 21.5x14.5x7.5cm/25x21.5x11.5cm/32x23x16cm |
Gross Weight: | 0.8kg/1.68kg/2.62kg |

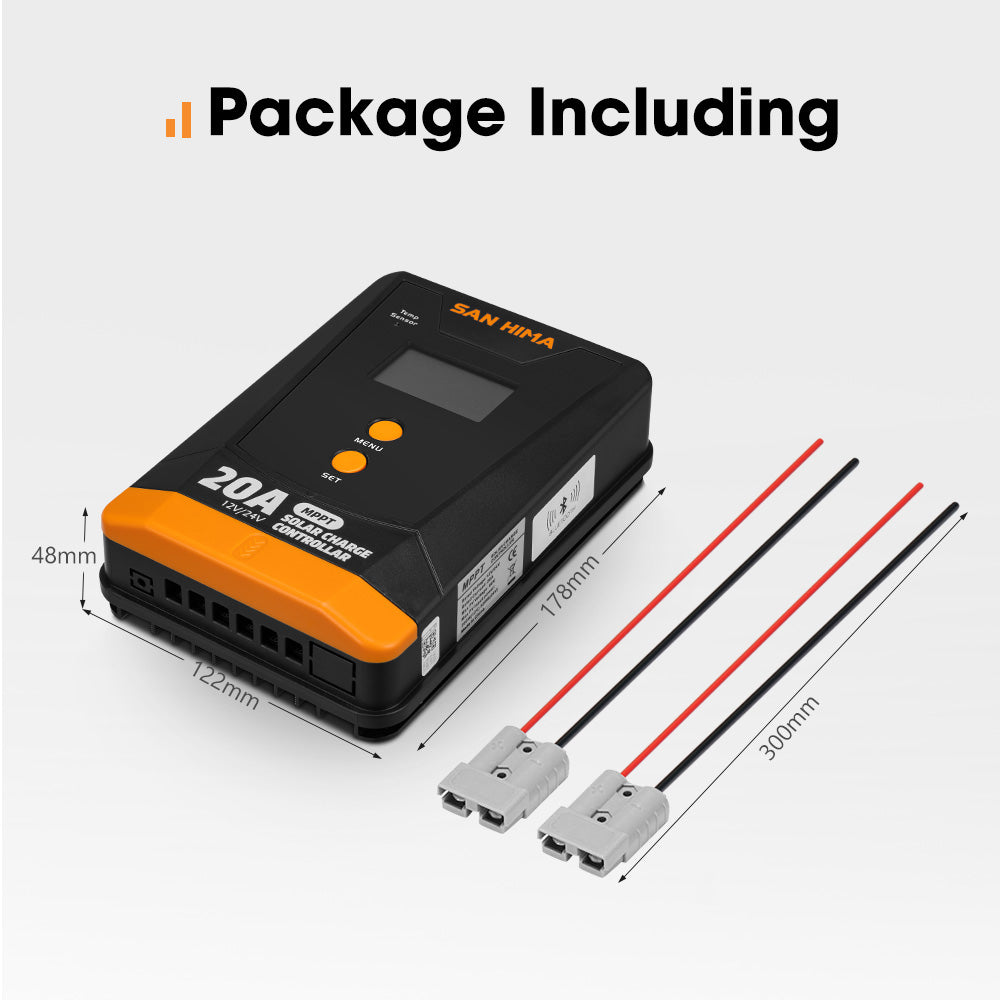

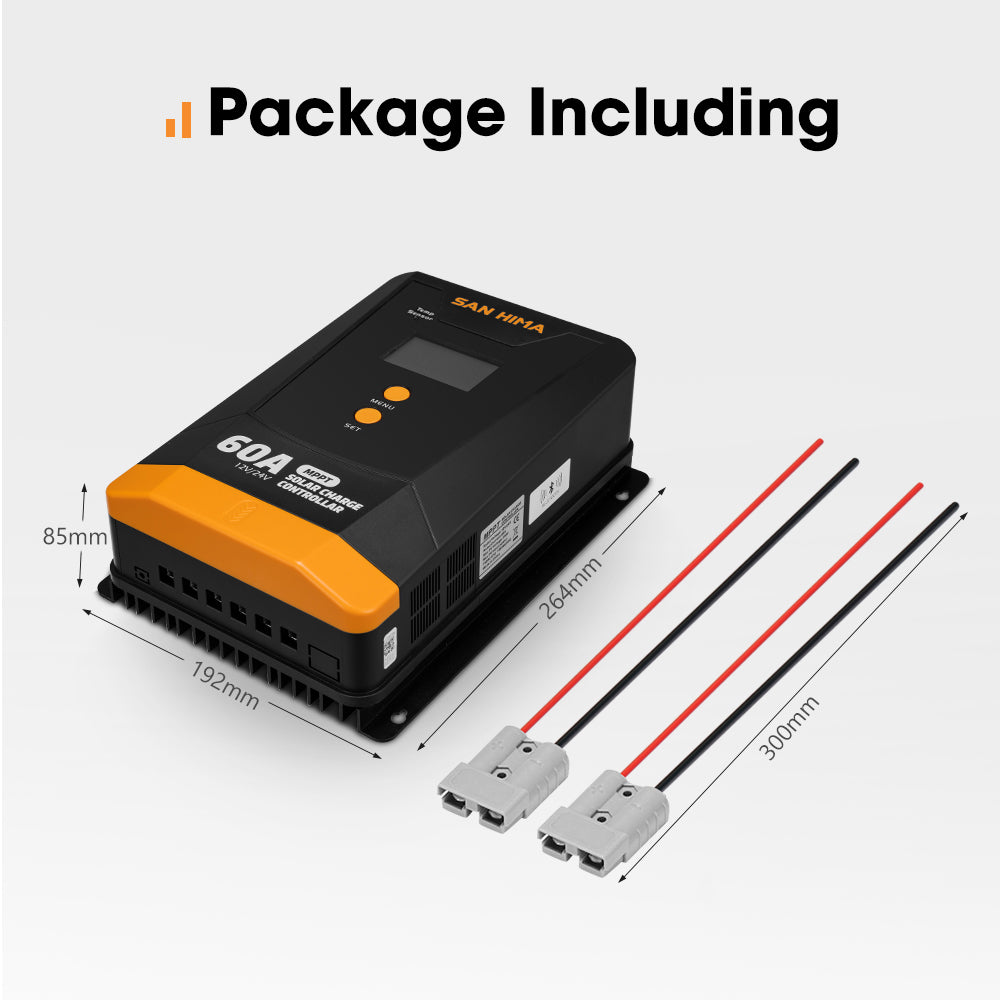

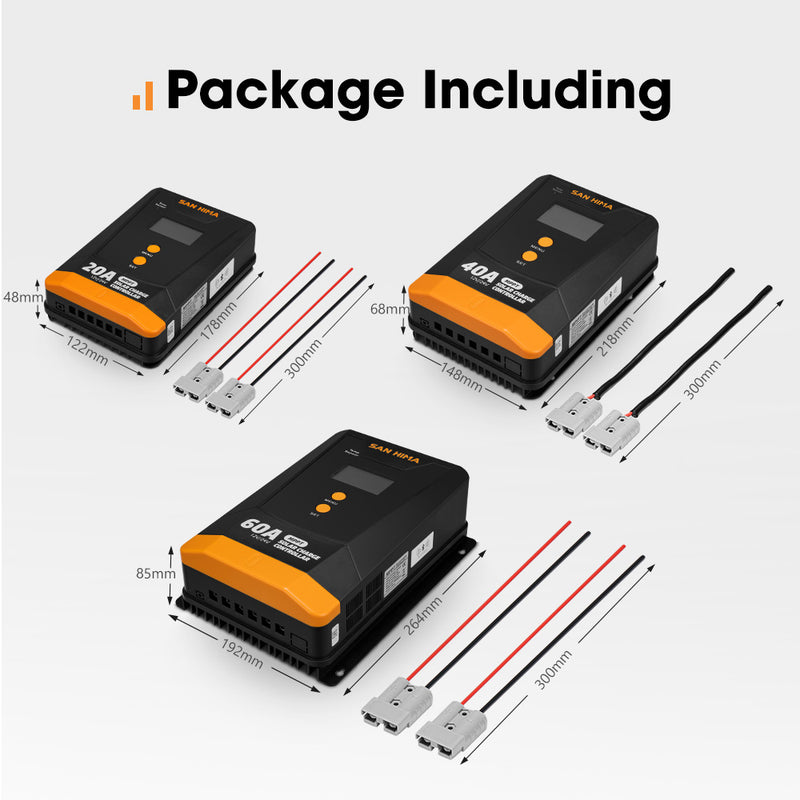

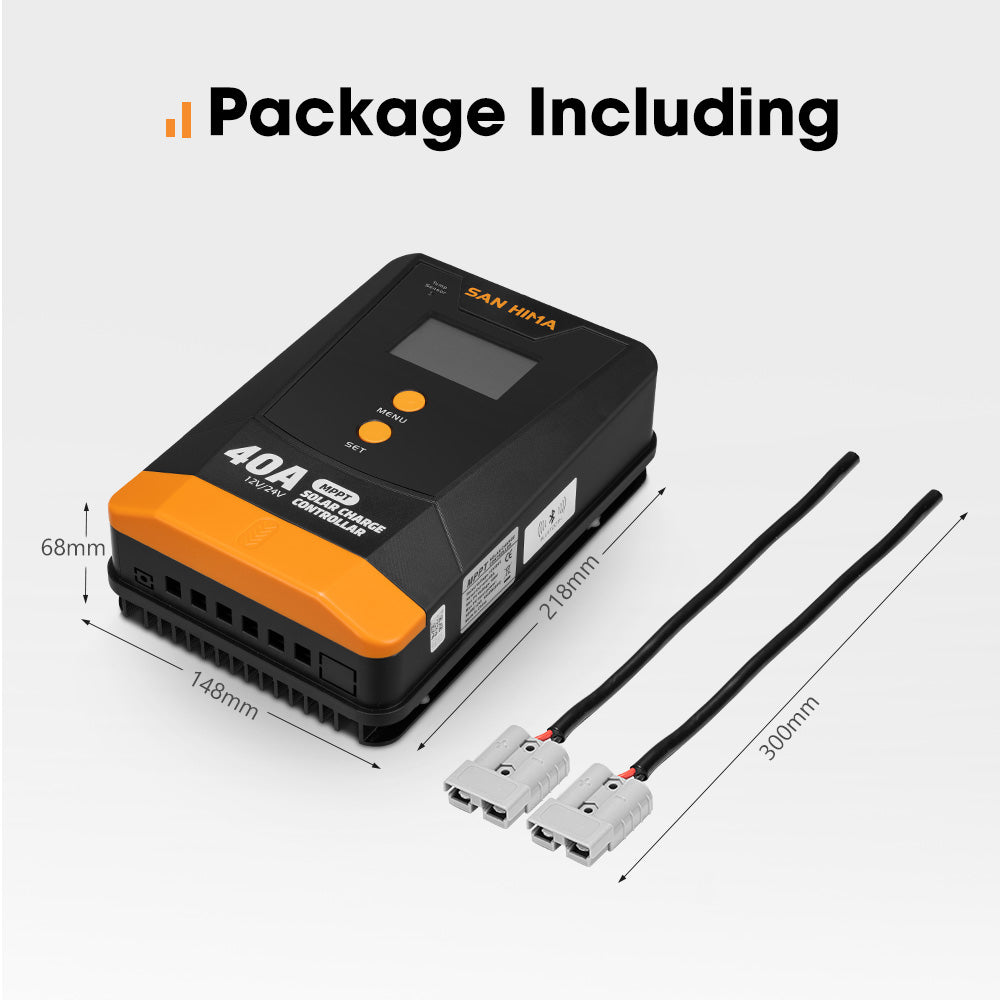

Package Includes

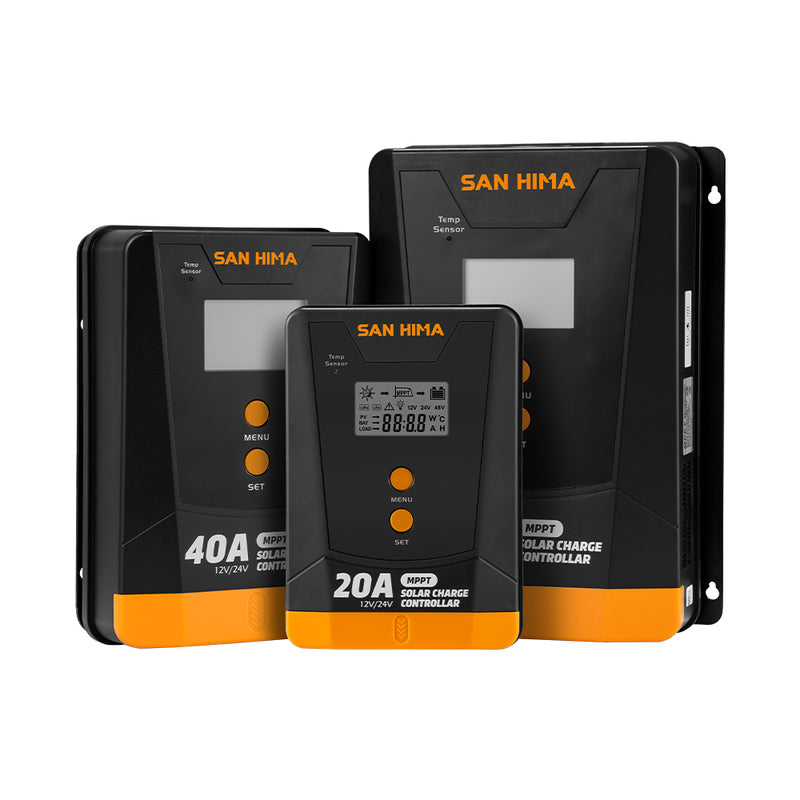

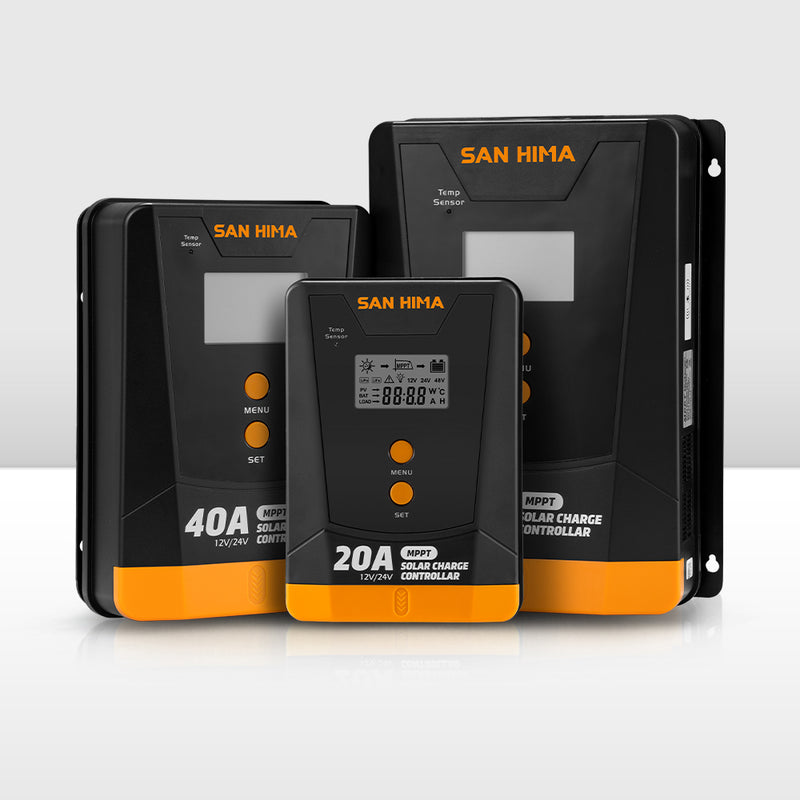

- 1 x San Hima 20A/40A/60AMPPT Solar Charge Controller
- 1 x Mounting Template
- 1 x User Manual
Warranty
GTIN
0761152135209
Note: Please do not use 'P.O. Box' as your mailing address
