Spare Sensors:
If you're after spare sensors the part numbers are TP-09S (internal valve) and TP-10S (external cap)
Overview:

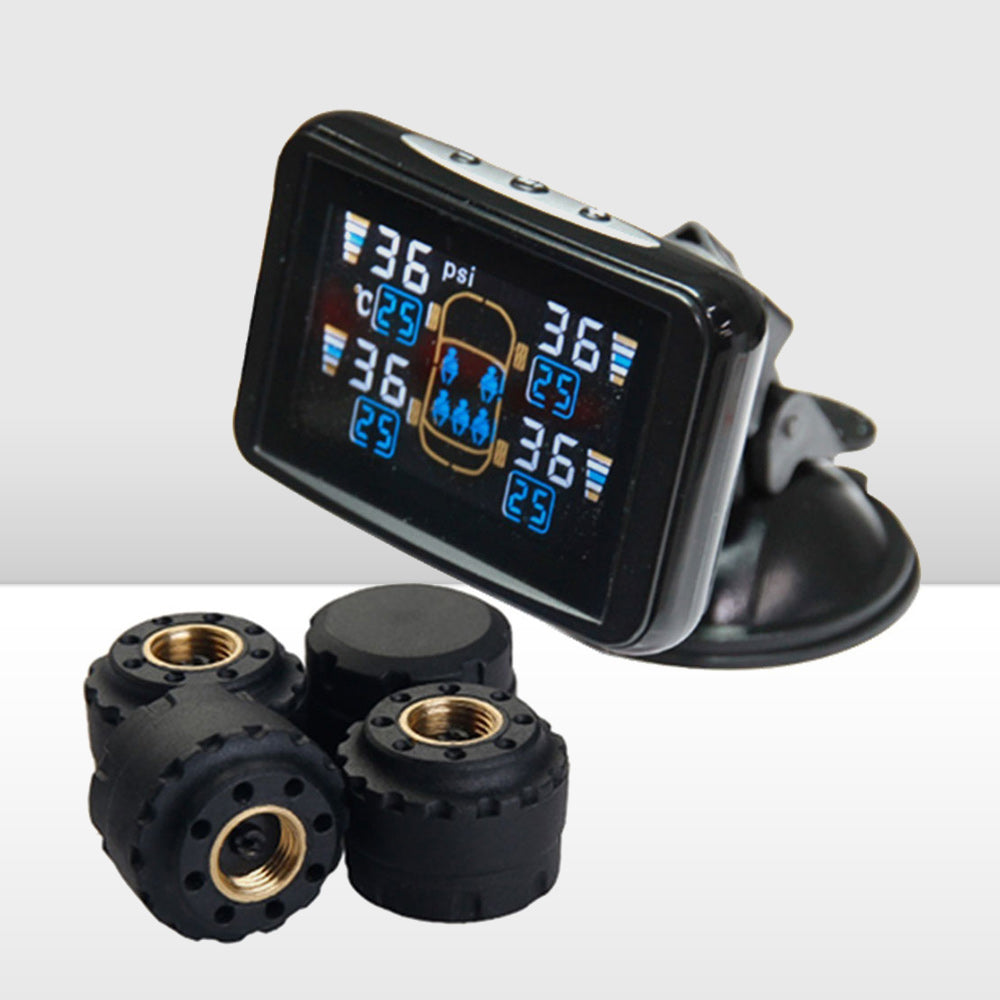

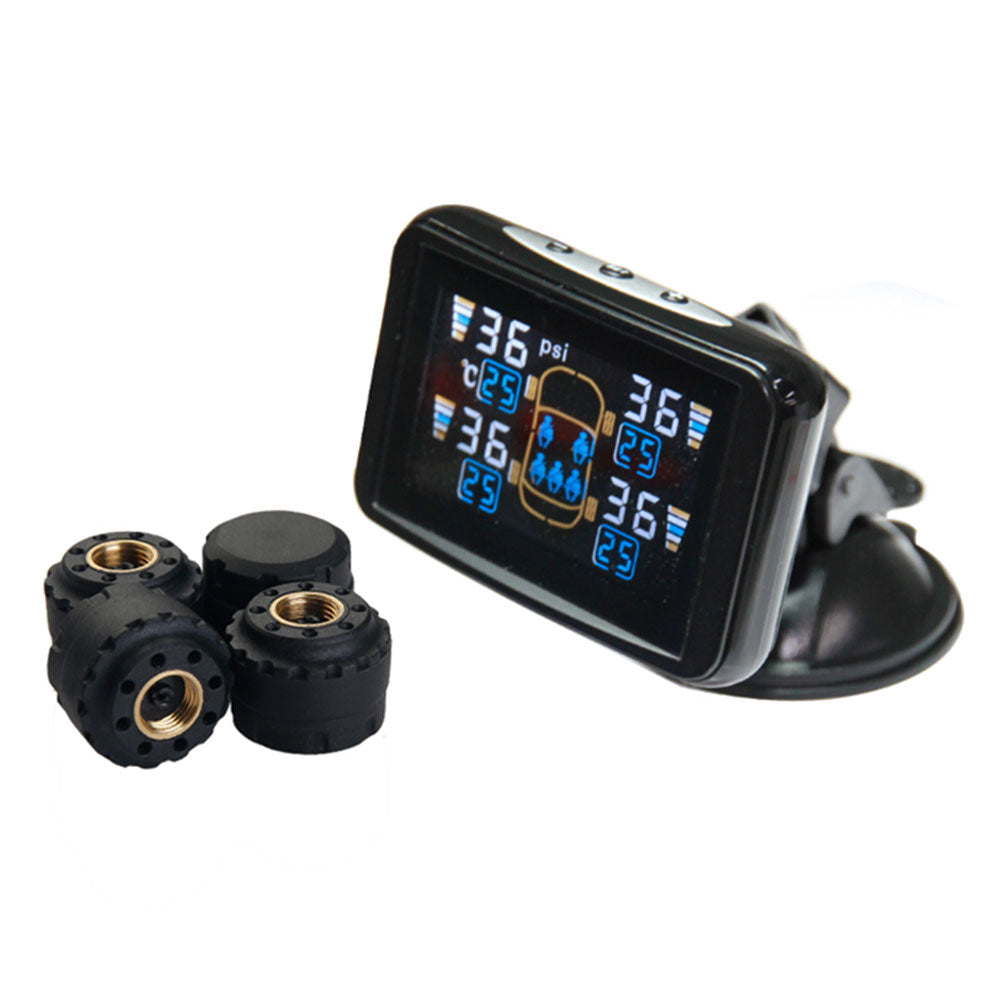

The Masten TP-13 (external sensors)/TP-16 (internal sensors) TPMS Tyre Pressure Monitor System is specifically designed for for those wanting to monitor their tyre pressure in a non-obscure way due to the conpact design of this monitor. .
The TPMS module simply works silently and alerts you if there is a problem with your tyres. The Tyre data can be viewed at all times.
Features
Features
- Monitoring Pressure Range: 3~99PSI (0.2~6.82 BAR) Sensor Pressure Range: 0~116PSI (0~8 BAR)
- Simple DIY installation!
- Masten improved wireless signal
- Attractive design with visual and audible alarm
- 7 Metre Wireless Range
- PSI and BAR Adjustable Units
- Adjustable Front and rear sensors high/low pressure alarm range
- Real-time Tire Pressure and Temperature Display of all 5 Tyres Simultaneously
- TPMS information screen will automatically appear if a tyre problem is detected
- The multi colour interface allows you to easily identify problem tyres in red for fast evaluation
- Premium quality sensors
- User friendly programming functions
- Note:Your order will dispatched within 2-3 business days.
| Monitor Specifications | |
| Operational Temperature: | -20 to 80°C |
| Storage Temperature: | -30 to 85°C |
| Transmission Frequency: | 433.92MHz |
| Input Voltage: | DC 12 to 24V |
| Size: | 76(L) x 50(W) x22 (H)mm |
| Weight: | 58g |
| External Cap Specifications | |
| Operational Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Pressure Range: | 0 to 8BAR, 0~116PSI |
| Pressure Accuracy: | ±0.1BAR, ±1.5PSI |
| Temperature Accuracy: | ±3°C |
| Transmission Power: | <10dBm |
| Transmission Frequency: | 433.92MHz |
| Battery life: | Approx 3 years(CR1632, -40 to 80°C) |
| Size: | 21mm(diameter) x 17.5mm(height) |
| Weight: | 9g |
| Internal Valve Sensor Specifications-Optional | |
| Operational Temperature: | -40 to 80°C |
| Storage Temperature: | -40 to 85°C |
| Pressure Range: | 0 to 8BAR, 0~116PSI |
| Pressure Accuracy: | ±3°C |
| Transmission Power: | <10dBm |
| Transmission Frequency: | 433.92MHz |
| Battery life: | Up to 5 years |
| Size: | 60(L) x 35(W) x21(H)mm |
| Weight: | 48g |
PACKAGE INCLUDES
- 1X Universal Dash Mount TPMS Monitor

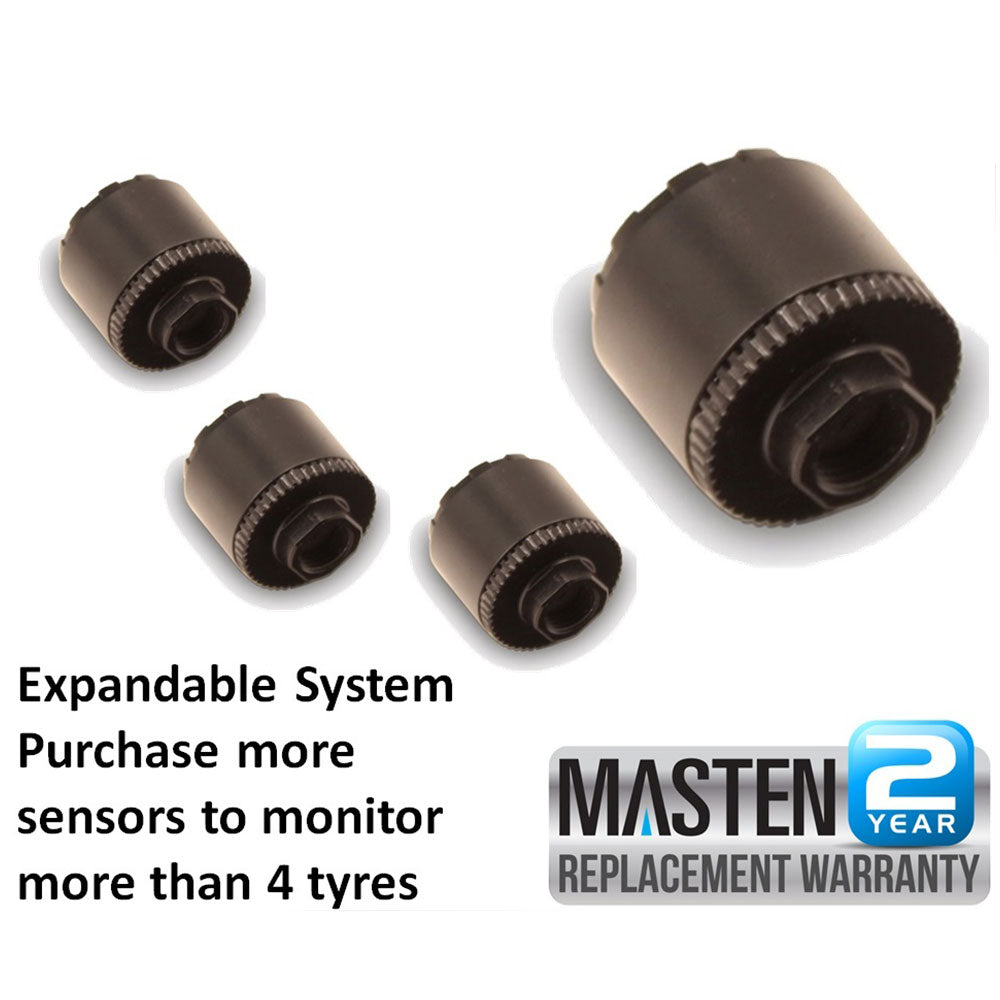

- 4X Premium External Cap Sensors
- 1X Installation wiring
WARRANTY
2 Year Warranty
